All specifications subject to change without notice. Please call to verify.
Coolant System (1/8 HP)
Heat Treatment and Grinding (X/Y/Z)
Turcite B (X/Y)
Work Light, 24V
Electrical Box
Control Panel
X/Y Auto Feed
Knee Auto Feed
1″ dia. Horizontal Arbor with 2 Arbor Supports
Automatic Lubrication System
Splash Pan
Spindle Shield
Back Chip Cover (Y)
Front Finned Bellows Cover (Y)
X/Y Axis Lead Screw
Wired 220V. Application of 440V needs an optional transformer or factory special order.
Toolbox and Tools
Machine Manual Half Nut Wrench 17m & 19M, set of 6 Allen Wrenches, Philip Screwdriver, Flat Head Screwdriver, Oil Can, Grease Gun, Rear Way Cover Bracket, Pin for Indicator, and Can of Paint.

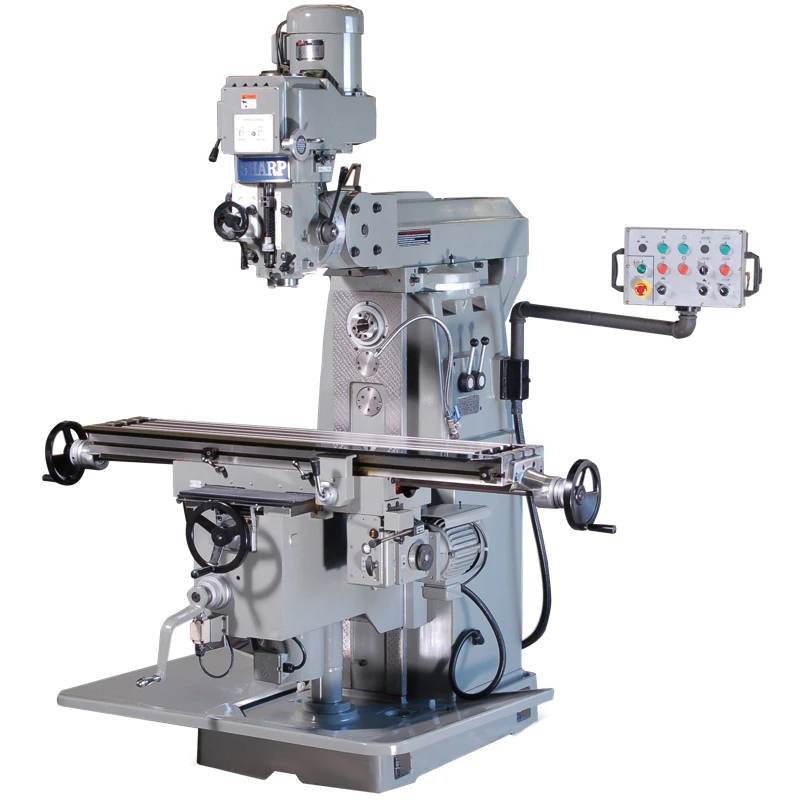

5 HP, NST #40 Vertical Spindle with Digital Variable Speed Drive
5 HP, NST #40 Horizontal Spindle with Digital Variable Speed Drive
4-Way Tilt Mill Head for Added Versatility
Power Feed on X, Y & Z Axis/Knee, Motor 0.5 HP, Gear Ration 1:10
Heavy Duty Box-Type Column
Box Ways on Cross Feed/Y-Axis and Knee/Z-Axis, and Dovetail Way on Table/X-Axis
Meehanite Casting
Prices and specifications subject to change without notice
Table Size: 53.93 x 11.81 in.
T-slots (No. x Width x Pitch): 3, 0.629, 2.75 in.
Table Travel: X Longitudinal: 39.37 in.
Table Travel: Y Cross: 15.74 in.
Ram Travel: 27.5 in.
Knee Travel: Vertical: 18.5 in.
Longitudinal Feeds: 1.18 – 39.37 in./min.
Cross Feeds: 1.18 – 39.37 in./min.
Vertical Feeds: 1.96 – 31.59 in./min
Spindle Taper: NST #40
Spindle Speeds (Variable): 60 – 4,500 rpm (inverter)
Spindle Motor: 5 HP
Quill Travel: 5.51 in.
Quill Feeds: 0.0015, 0.0031, 0.0059 in.
Quill Diameter: 4.13 in.
Spindle Center to Column: 7.08 – 34.64 in.
Spindle Nose to Table: 3.93 – 22.44 in.
Vertical Head Swivel (L to R): 90°
Vertical Head Tilt (Up and Down): 45°
Spindle Nose Taper: NST #40
Spindle Speed Range: 60 – 1400 rpm (inverter)
Spindle Motor: 5 HP
Spindle Centerline to Table: 0 – 16.53 in.
Spindle Centerline to Overarm: 8.46 in.
Spindle Nose to Column: 1.13 in.
Vertical Spindle: 5 HP
Horizontal Spindle: 5 HP
X/Y Axis Motor: 0.5 HP
Z Axis Motor: 0.5 HP
Coolant System: 0.125 HP
Floor Area ( W x D x H): 89.37 x 122 x 99.2 in.
Approximate Weight: 4,850 lbs.
Power Consumption (220V): 30 amp
Power Consumption (440V): 15 amp
