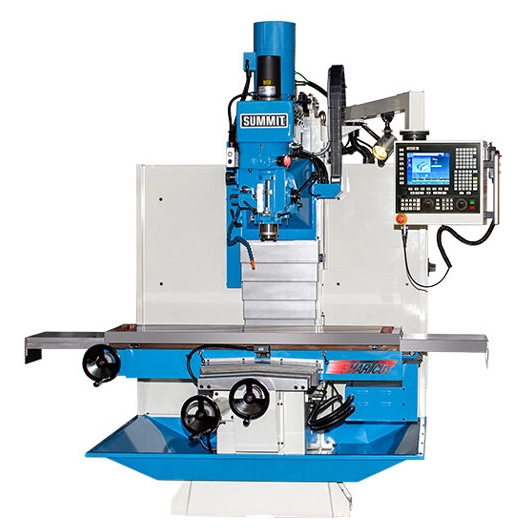

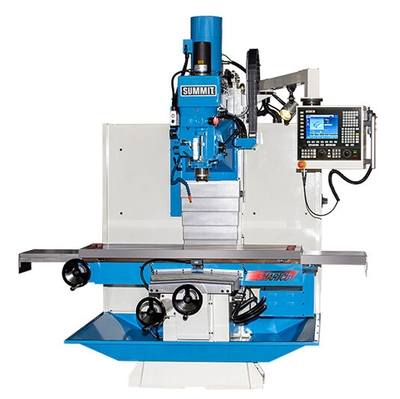

The rugged Summit® EVS Series CNC Vertical Bed Mills are engineered and manufactured from the finest components with the operator in mind. The newly designed control is centralized for ease of operation, has a larger display, and a power tapping mode. Movement of the head to various angles is easily obtained from the operator’s position. The Summit EVS Series CNC Vertical Bed Mills are versatile enough to effectively serve small one-man machine shops, job shops, R&D departments, tool room, and maintenance shops, as well as large, sophisticated manufacturing operations.
Heavy “Meehanite” cast iron construction for excellent damping
Heavy box saddle
Huge box ways on column
“Turcite-B” inserted guideways for extended machine life
Double table locks
Wipers on saddle and column

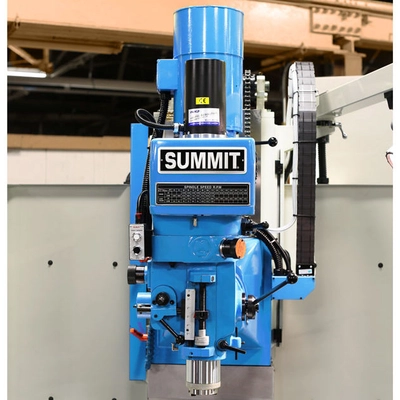

Head swivels left & right
Built-in coolant system
Automatic lubrication
Precision ground ball screws with double-nut design
Inverter duty, high-energy, high-efficiency motors for lower utility costs, save up to 35%
Compact AC inverter spindle drive
AC servos & drives
Fewer moving parts in the head for less maintenance and downtime
Power cogged drive belt to prevent belt slippage and extend tool life
Electronic inverter-controlled braking for reduced set-up time

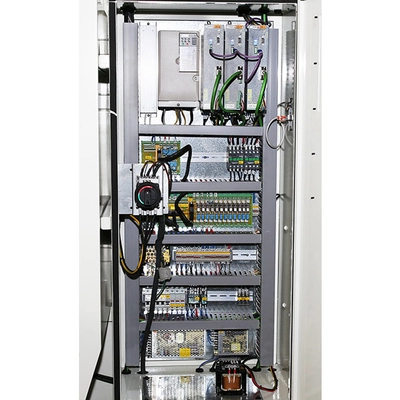

Fan cooled electrical enclosure
Complete electrics with low voltage controls for safer machine operation
Fagor glass scale feedback
Fagor 8058 Control System
Oil gun
Clamping kit
Anchor bolts
Open end wrench set
Steel way covers
Halogen work light
Air-operated power draw bar
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/

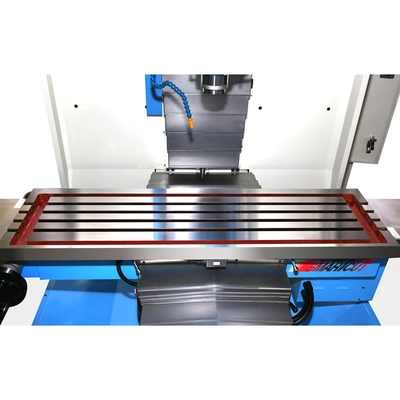

Table size: 16.9″ x 60″ x 3 1/8″
Table top to floor: 36.25″
Number of t-slots: 5
Number of feeds: Infinitely variable
Max. workpiece weight: 2,200 lbs
Table longitudinal travel (X): 51.1″
Saddle cross travel (Y): 23.62″
Vertical head travel (Z): 23.6″
Motor size: 7.5 HP
Spindle speeds (no.) range: (Infinitely variable) 70 – 3800
Spindle feeds (no.) range: (Infinitely variable) 0 – 200
Spindle nose to table top: 2.5″ – 30″
Spindle nose to column: 23.62″
Spindle taper: #40
Quill traverse: (Manual) 5.5″
Quill feed: 0.0016 – 0.0031 – 0.0059 IPR
L x W x H: 88″ x 97″ x 109″
Weight: 6,500 lbs
Voltage: 220/3/60
Maximum overall height with head raised: 109″
