Coolant system
Auto lubrication system
Draw-in bolt (1 pc)
Tool box
Wired 220V or 440V
Power drawbar w/foot pedal control
6 in. ‘KURT” vise with swivel base D688
Halogen work light
30 in. travel in Z axes in lieu of 20 in.
All prices and specifications subject to change without notice. Please call to verify.

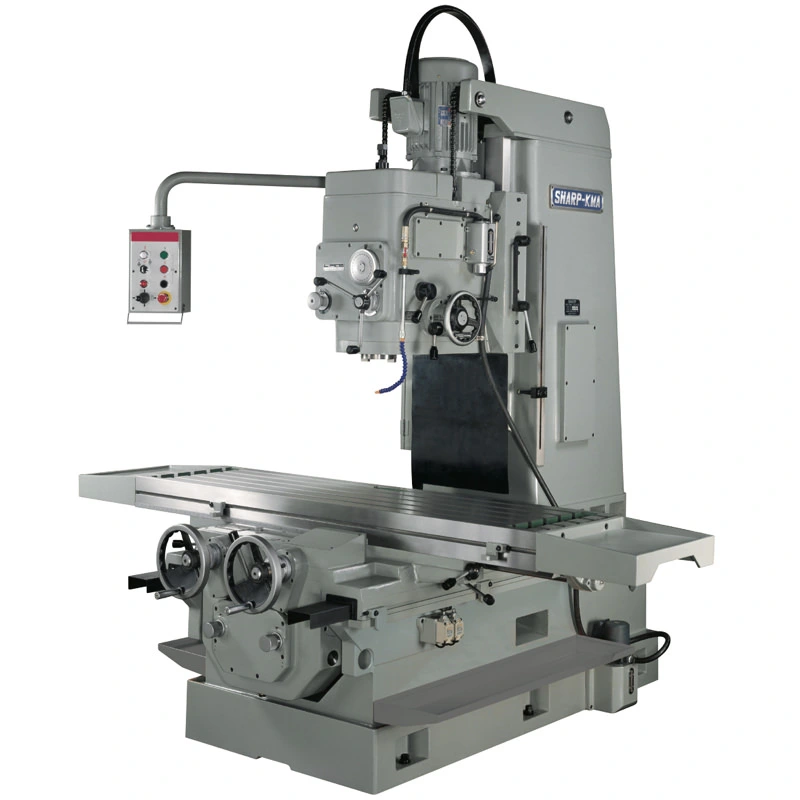

Solid Construction, Box Way Design
High quality castings are used on base, column saddle and table. They are stressed relieved to avoid any distortion. All sliding surfaces are hand scraped to ensure full bearing support. All reference surfaces and T slots are precision ground to exact tolerances.
Honeycombed Ribbing on Column
The vertical column of a bed mill usually received most pressure during heavy duty milling operation. Honey combed pattern ribbings enhance rigidity of the casting.
Double Nut Backlash Eliminator
Backlash on the screw increases after long term usages. The backlash eliminator can correct the situation by adjusting the double nuts instead of the old method of squeezing a split nut.
Eye-Level Tai-Lever Handle Vertical Head Movement
Despite the heavy duty vertical spindle head, it is easy to move the head up and down manually using the trim-lever handle for positioning or close milling jobs.
Well Organized Electric Panel
All relays, contactors, transformers, overload protections, safety disconnect switches and wires are clearly labeled for easy maintenance.
Table Size: 74.81 x 17.68 in.
T-slots (No. x Width x Pitch): 5 x 0.75 x 3.12 in.
Table Travel: X Longitudinal: 47.25 in.
Table Travel: Y Cross: 17.68 in.
Vertical Head Travel: 21.62 in.
Spindle Center to Column: 17.68 in.
Spindle Nose to Tabel: 3.93 – 25.62 in.
Longitudinal Feeds (Variable): 1.12 – 34.43 in.
Longitudinal Rapids: 113.37 in.
Cross Feeds (Variable): 0.002 to 0.008 in.
Spindle Taper: NST #50
Spindle Speeds: 45-1500 rpm
Vertical Head Travel: 12 steps
Vertical Head Feeds: 0.002-0.008 in./rev
Vertical Spindle: 15 HP
Table Feed and Rapid: 2 HP
Coolant System: 1/8 HP
Floor Area (W x D x H): 12.46 x 7.25 x 8.53
Approximate Weight: 811,440 lbs.
Power Consumption (220V): 45 amps
Power Consumption (440V): 22.5 amps
