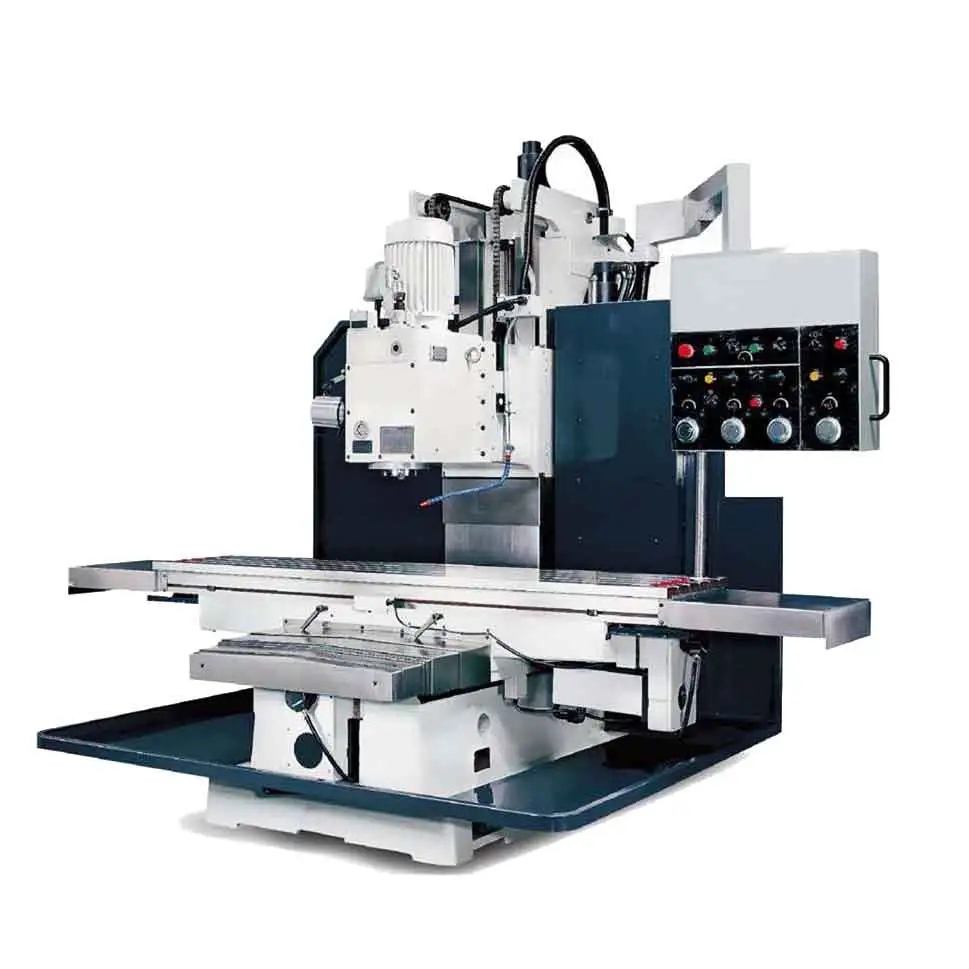

Powerful 10 Hp spindle drive motor
Gear Box drive with 6 speed steps with forced lubrication
Hardened and ground spindle with NT50 taper
High-rigidity spindle complete with cylindrical roller bearing designed for accurate cutting
C7 double nut X/Y/Z axes 1.5” diameter precision ballscrew
1:2 ratio timing belt boxes on X/Y/Z increases drive torque
X/Y/Z movement by Joy Stick or MPG
X/Y/Z axes driven by servo motor w/ pendant control box showing individual buttons for each function, allows for easy operator interface
Hardened and ground table surface
Ground T-slots to provide accurate reference edge
Hardened and ground, square Y/Z ways dovetail on X
Turcite B coating on saddle X/Y/Z axes ways
Meehanite castings for superior rigidity and wear resistance
Steel X/Y/Z axes way covers
Coolant system with pump
Halogen work light
Tools, toolbox and parts
Standard voltage 230 3 phase (other voltages require a transformer)
Intelligently integrates the control, machine, and operator
Optimized HMI and PLC and Motion and Comm
IPRO System enables you to program conventional machining operations right at the machine in easy conversational language
System is designed for operators where manual and automated operation are both useful
Built in functions: Parameter Memory, Visual Communication, USB
DRO Mode: Provides DRO functions for your milling work. With this function you no longer have to spend extra money on additional DRO equipment
Easily transfer your 2D CAD/CAM files into the system using the USB flash drive
Table size: 19.69″ x 86.61″
Table load capacity: 3,300 lbs.
No. of T-slots: 5
T-slot width: 0.71″
T-slot center distance: 3.35″
Table ways (X axis): Dovetail
Bed ways (Y axis): Square
Column ways (Z axis): Square
Spindle nose to table surface: 2.76-30.31″
Longitudinal (X axis): 62.99″
Cross (Y axis): 27.56″
Vertical (Z axis): 27.56″
Feed rate X, Y & Z axes: 0-29.53 (in/min)
Rapid traverse X, Y & Z axes: 472 (in/min)
Spindle motor (2p/4P): 10 Hp
X, Y, Z motor: 1.3 Hp
Coolant pump motor: 1/6 Hp
Spindle taper: NT 50
No. of speed ranges geared head: 6
Low gear range: 125-560 rpm
High gear range: 370-1100 rpm
Height: 115.35″
Working width: 162.87″
Working depth: 99.61″
Center of spindle to column ways: 27.56″
Net weight: 9,921 lbs.
Gross weight (approximately): 12,100 lbs.
Shipping size (L x W x H): 105″ x 92″ x 101″
Air pressure: 86 PSI
Total KVA: 15
