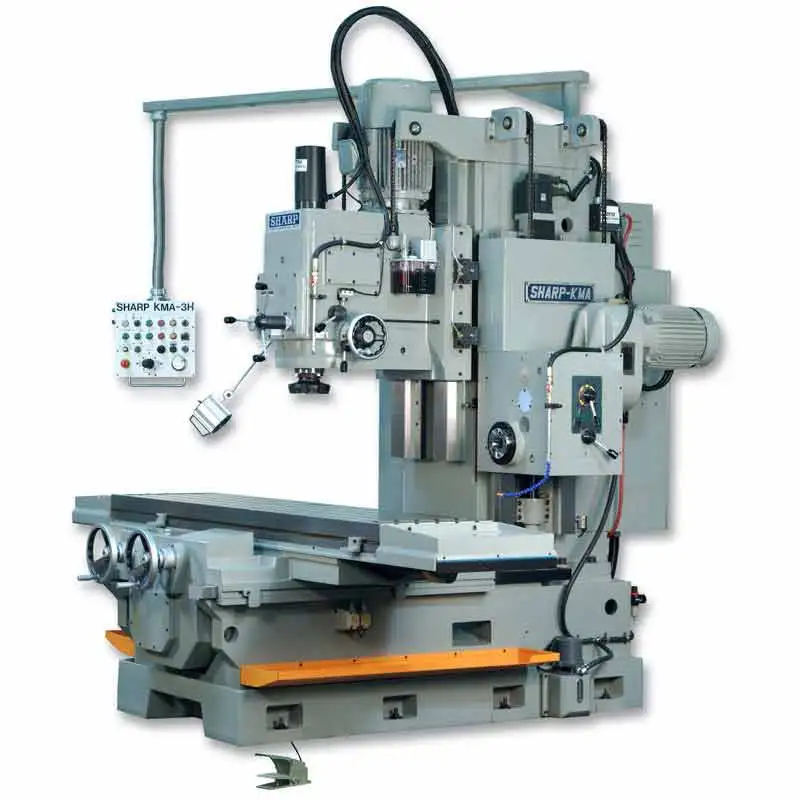

Auto Lubrication system.
Coolant System
Spindle C/CCW
Adjustable lubricator for X and Y slideway
Leveling Blocks – 6 Pc
Leveling Nuts and Bolts – 6 sets
Draw – in Bolt (1 pcs)
440 V application needs an optional transformer
Tool Kit
Machine Manual Half Nut Wrench 17m & 19m, set of 6 Allen Wrenches, Philip Screw Driver, Flat Head Screwdriver, Oil Can, Grease Gun, Rear Way Cover Bracket, Pin for Indicator, & Can of Paint.
All prices and specifications subject to change without notice. Please call to verify.
All prices and specification subject to change without notice. Please call to verify.
ISO 9002 certified factory:
Quality up to world industry standards.
ISO 9002 certified factory:
Quality up to world industry standards.
Certified MEEHANITE Casting:
Highest grade of casting possible.
Certified MEEHANITE Casting:
Highest grade of casting possible.
Boring Capability
The vertical head’s full-length travel (20” on Model KMA-1, 21.5” on KMA-2, and 30” on KMA-3) and 6 different feeds (0.002 – 0.008 inch per revolution) allow for precise boring operation.
Boring Capability
The vertical head’s full-length travel (20” on Model KMA-1, 21.5” on KMA-2, and 30” on KMA-3) and 6 different feeds (0.002 – 0.008 inch per revolution) allow for precise boring operation.
Electro-Magnetic Spindle Control
The spindle is equipped with an electric power brake for instant clamping of the spindle. It also has a forward/reverse switch for tapping operation, and spindle jog motion for proper tool holder engagement.
Electro-Magnetic Spindle Control
The spindle is equipped with an electric power brake for instant clamping of the spindle. It also has a forward/reverse switch for tapping operation, and spindle jog motion for proper tool holder engagement.
Hardened and Ground Gears
The gearbox inside the spindle head and the table feed mechanism utilizes hardened and ground gears for long-lasting wear. The spindle head gearbox is equipped with an automatic lubrication system, and the table feed gearbox has an oil splash system for lubrication.
Hardened and Ground Gears
The gearbox inside the spindle head and the table feed mechanism utilizes hardened and ground gears for long-lasting wear. The spindle head gearbox is equipped with an automatic lubrication system, and the table feed gearbox has an oil splash system for lubrication.
Pendant Style Operation Panel
The pendant control panel allows easy operation of all power-driven mechanisms, electrical, pneumatic, or hydraulic. It has a toggle-style control for 4-way feed and rapid traverse of the table.
Pendant Style Operation Panel
The pendant control panel allows easy operation of all power-driven mechanisms, electrical, pneumatic, or hydraulic. It has a toggle-style control for 4-way feed and rapid traverse of the table.
Auto Lube Table and Saddle Ways
The slideways upon which the saddle and table travel are automatically lubricated when the machine is turned on.
Auto Lube Table and Saddle Ways
The slideways upon which the saddle and table travel are automatically lubricated when the machine is turned on.
Hardened and Ground Box ways:
The C-frame construction offers the best machining capability for heavy milling and boring applications. By using hardened and ground double box ways in the Z axis, significant rigidity is given to the cutting head. The saddle is also mounted on two massive hardened and ground body ways for maximum stability during heavy cutting.
Hardened and Ground Box ways:
The C-frame construction offers the best machining capability for heavy milling and boring applications. By using hardened and ground double box ways in the Z axis, significant rigidity is given to the cutting head. The saddle is also mounted on two massive hardened and ground body ways for maximum stability during heavy cutting.
Honey Combed Ribbing:
The vertical column is made from box-shaped, high-quality, gray iron castings. It is reinforced with honeycombed ribbing, instead of the usual rectangular ribbing, which is 70% more effective in dampening vibration and sustaining mechanical and thermal stability.
Honey Combed Ribbing:
The vertical column is made from box-shaped, high-quality, gray iron castings. It is reinforced with honeycombed ribbing, instead of the usual rectangular ribbing, which is 70% more effective in dampening vibration and sustaining mechanical and thermal stability.
Table and Saddle:
High-quality castings used on the table and saddle are stressed and relieved to avoid any slight distortion in the future, and the sliding surfaces are hand scraped to ensure full bearing support and to achieve high accuracy in machining. All top, front, and rear reference surfaces and T slots are precision ground to exact tolerances.
Table and Saddle:
High-quality castings used on the table and saddle are stressed and relieved to avoid any slight distortion in the future, and the sliding surfaces are hand scraped to ensure full bearing support and to achieve high accuracy in machining. All top, front, and rear reference surfaces and T slots are precision ground to exact tolerances.
Adjustable Backlash Eliminator:
A double-nut construction eliminates the backlash between the nut and the lead screw that drives the table. This allows accurate movement of the workpiece during machining. As time goes on, there will be wear on the nut, creating a backlash; the double nuts can be adjusted to take out the additional backlash. Precisely milled oil grooves on top of the saddle ensured adequate lubrication between the table and the saddle.
Adjustable Backlash Eliminator:
A double-nut construction eliminates the backlash between the nut and the lead screw that drives the table. This allows accurate movement of the workpiece during machining. As time goes on, there will be wear on the nut, creating a backlash; the double nuts can be adjusted to take out the additional backlash. Precisely milled oil grooves on top of the saddle ensured adequate lubrication between the table and the saddle.
Unique Sliding Saddle Base Design:
To allow easy access to the workpiece for inspection or positioning, the entire saddle base can slide in and out from the operator manually or by power feed. This feature is particularly convenient considering the cross movement of the saddle can reach up to 23”.
Unique Sliding Saddle Base Design:
To allow easy access to the workpiece for inspection or positioning, the entire saddle base can slide in and out from the operator manually or by power feed. This feature is particularly convenient considering the cross movement of the saddle can reach up to 23”.
Eye Level vertical Head Control:
The large spindle head offers manual course and fine in addition to a power feed for positioning the head. Controls for these feeds, together with spindle speeds and the head locking mechanism, are all mounted at eye level on the spindle head casting. The tri-lever rotating manual rapid feeds are mounted at the front to allow quick positioning of the head for machining.
Eye Level vertical Head Control:
The large spindle head offers manual course and fine in addition to a power feed for positioning the head. Controls for these feeds, together with spindle speeds and the head locking mechanism, are all mounted at eye level on the spindle head casting. The tri-lever rotating manual rapid feeds are mounted at the front to allow quick positioning of the head for machining.
Oversized Spindle
For heavy-duty cutting.
Oversized Spindle
For heavy-duty cutting.
Built-In Coolant Tank
Located at the base of the machine to save space.
Built-In Coolant Tank
Located at the base of the machine to save space.
Pneumatic Power Locking System
Equipped with a vertical spindle head and a separate pneumatic system for locking the table and saddle.
Pneumatic Power Locking System
Equipped with a vertical spindle head and a separate pneumatic system for locking the table and saddle.
Variable Speed Drive on Table and Saddle
Using variable frequency inverter drive control on the motor, the feed rate of table and saddle can be varied at the turn of a knob.
Variable Speed Drive on Table and Saddle
Using variable frequency inverter drive control on the motor, the feed rate of table and saddle can be varied at the turn of a knob.
Auto Lube Vertical Slideways
The slideways upon which the vertical spindle head travels are automatically lubricated when the machine is turned on.
Auto Lube Vertical Slideways
The slideways upon which the vertical spindle head travels are automatically lubricated when the machine is turned on.
7.5 HP horizontal spindle
7.5 HP horizontal spindle
Ball screw and AC servo motor drive on horizontal head
Ball screw and AC servo motor drive on horizontal head
Electronic handwheel (MPG) on horizontal head travel
Electronic handwheel (MPG) on horizontal head travel
Table Size: 19.68 x 86.62 in.
T-Slots (No. x Width x Pitch): 5 x 0.75 x 3.56 in.
Table Travel: X Longitudinal: 59 in. (79 in. Opt.)
Table Travel: Y Cross: 23.6 in.
Vertical Head Travel: 27.5 in.
Horizontal Head Travel: 25.5 in. (up, down)
Vertical, Horizontal Taper, HP: #50, #50, 20 HP, 75 HP
Spindle Center to Column: 21.62 in.
Spindle Nose to Table: 4-31.5 in./min.
Distance Between Vertical and Horizontal Spindle: 21.5 in.
Longitudinal Feeds (Variable): 1.12 – 39.37 ipm
Longitudinal Rapids: 129 – 7/8 ipm
Cross Feeds (Variable): 1.12 – 39.37 ipm
Cross Rapids: 129 – 7/8 ipm
Maximum load: 2,640 lbs.
Spindle Nose Taper: NST #50
Spindle Speeds (12): 45 – 1500 rpm
Vertical Head Travel: 25 – 9/17 in.
Vertical Head Feeds: 0.002-0.008 in/rev
Spindle Nose Taper: NST #50
Spindle Speed (12): 40 – 1450 rpm
Horizontal Head Travels: 25.5 in. (up, down)
Vertical Raids: 150 ipm
Vertical Spindle: 17.5 HP
Horizontal Spindle: 7.5 HP
Table Feed and Rapid: 2.5 HP
Coolant System: 0.125 HP
Floor Area (W x D x H): 14.58 x 8.33 x 9.41 ft.
Approximate Weight: 19,140 lbs.
Power Consumption (220V): 60 amps
Power Consumption (440V): 30 amps
