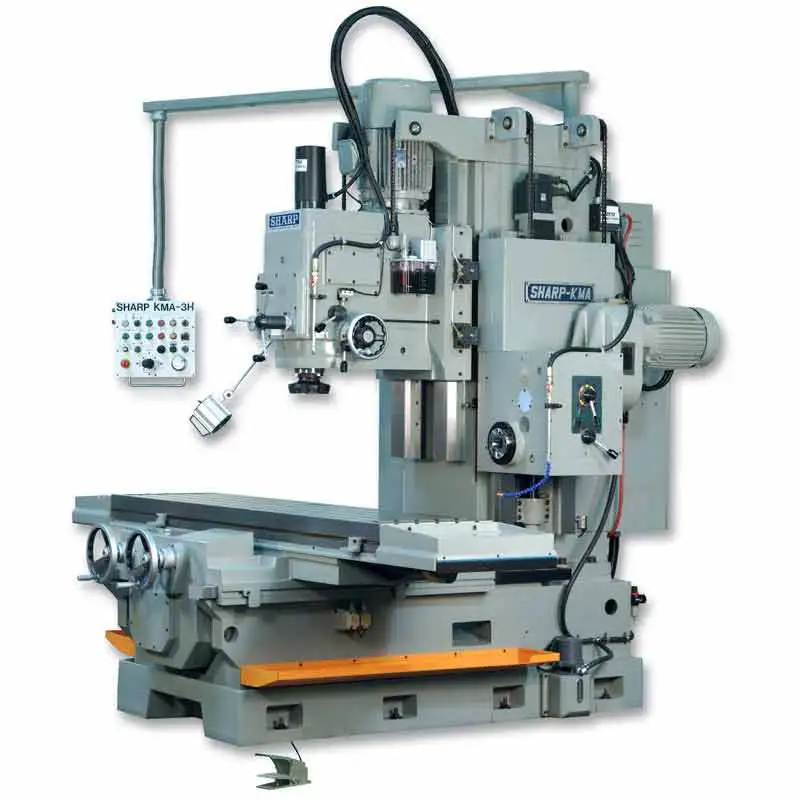

This model has both vertical and horizontal heads. Bed type vertical mills are ideal for milling large work piece or heavy cutting on hard metals. The quill is fixed so it can withstand strong lateral forces. For this model, the entire vertical head moves up to 28″ that enables deep drilling and boring operations. The large spindle with #50 taper can remove large amount of metals in one pass. The horizontal head with 7.5 HP motor and #50 taper spindle driven by AC servo motor on ball screw performs horizontal milling operations with high accuracy. This arrangement allows the performing of different type of million operations on one set up, thus maintain accuracy and increase productivity.
All specifications subject to change without notice. Please call to verify.
Coolant system
Auto lubrication system
Draw-in bolt (1 pc)
Tool box
Wired 220V or 440V
All prices and specifications subject to change without notice. Please call to verify.
All prices and specifications subject to change without notice. Please call to verify.
Solid Construction, Box Way Design
High quality castings are used on base, column, saddle and table. They are stressed relieved to avoid any distortion. All sliding surfaces are hand scraped to ensure full bearing support. All reference surfaces and T slots are precision ground to exact tolerances
Honeycombed Ribbing on Column
The vertical column of a bed mill usually received most pressure during heavy duty milling operations. Honey combed pattern ribbings enhance rigidity of the casting.
Double Nut Backlash Eliminator
Backlash on the screw increases after long term usages. The backlash eliminator can correct the situation by adjusting the double nuts instead of the old method of squeezing a split nut.
Eye-Level Tri-Lever Handle Vertical Head Movement
Despite the heavy duty vertical spindle head, it is easy to move the head up and down manually using the tri-lever handle for positioning or close milling jobs.
Additional Horizontal Milling Head
The horizontal milling head with a fixed quill travels along the side of the column driven by AC servo motor on precision ball screw. It is equipped with NST#50 spindle taper, runs on 7.5 HP spindle motor. The head has 12 spindle speeds from 40-1,450 rpm.
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Table Size: 106.3 x 29.5 in.
T-Slots (No. x Width x Pitch): 5 x 0.75 x 5.9 in.
Table Travel: X Longitudinal: 78.75 in.
Table Travel: Y Cross: 31.5 in.
Vertical Head Travel: 27-9/16 in.
Spindle Center to Column: 31.5 in.
Spindle Nose to Table: 2.75 to 30.3 in.
Longitudinal Feeds (Variable): 1.10 – 39.37 in.
Longitudinal Rapids: 122.04 in.
Cross Feeds (Variable): 1.10 – 39.37 in.
Cross Rapids: 122.04 in.
Spindle Taper: NST #50
Spindle Speeds: 45-1500 rpm
Vertical Head Travels: 27.5 in.
Vertical Head Feeds: 39 ipm
Spindle Nose Taper: NST #50
Spindle Speeds (12): 40-1450 rpm
Spindle Head Travels: 25.5 in. (up, down)
Vertical Rapid Speed: 150 ipm
Vertical Spindle: 17.5 HP
Horizontal Spindle: 7.5 HP
Table Feed and Rapid: 4.7 HP
Coolant System: 0.16 HP
Floor Area (W x D x H): 18.68 x 10.08 x 10.5 ft.
Approximate Weight: 28,650 lbs.
Power Consumption (220V): 60 amps
Power Consumption (440V): 30 amps
