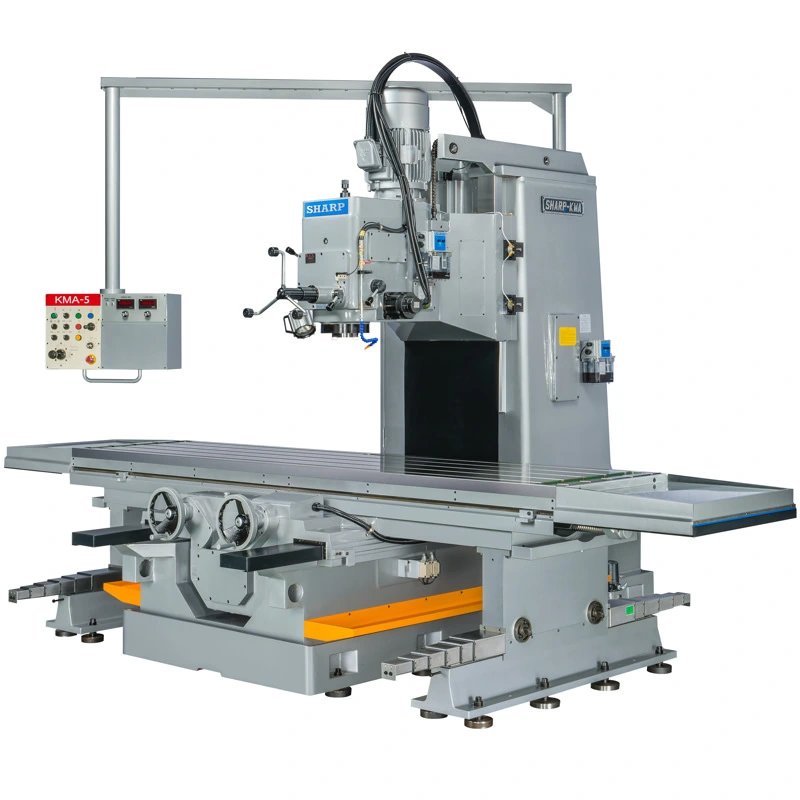

Bed type vertical milling machines are ideal for milling large work piece or heavy cutting on hard metals. The quill is fixed so it can withstand strong lateral forces. For this model, the entire vertical head moves up to 20″ that enables deep drilling and boring operations. The large spindle with #50 taper can remove large amount of metals in one pass. Even though the geared vertical head is huge, it travels smoothly by cranking the eye level tri-lever handle.
All specifications subject to change without notice. Please call to verify.
Coolant system
Auto lubrication system
Draw-in bolt (1 pc)
Tool box
Wired 220V or 440V
All prices and specifications subject to change without notice. Please call to verify.
All Prices and specifications subject to change without notice. Please call to verify.
Solid Construction, Box Way Design
High quality castings are used on base, column, saddle and table. They are stressed relieved to avoid any distortion. All sliding surfaces are hand scraped to ensure full bearing support. All reference surfaces and T slots are precision ground to exact tolerances.
Honeycombed Ribbing on Column
The vertical column of a bed mill usually received most pressure during heavy duty milling operations. Honeycombed pattern ribbings enhance rigidity of the casting.
Double Nut Backlash Eliminator
Backlash on the screw increases after long term usages. The backlash eliminator can correct the situation by adjusting the double nuts instead of the old method of squeezing a split nut.
Extensive Operating Panel
Operating panel includes toggle control of table and saddle feed, joystick control head up down. Digital display of spindle speed and vertical head feed rate. Push button for vertical head rapids. Dials for variable speed of table and saddle feed.
Eye-Level Tri-Lever Handle Vertical Head Movement
Despite the heavy duty vertical spindle head, it is easy to move the head up and down manually using the tri-lever handle for positioning or close milling jobs.
Well Organized Electric Panel
All relays, contractors, transformers, overload protections, safety disconnect switches and wires are clearly labeled for easy maintenance.
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Table Size: 106.3 x 29.5 in.
T-Slots (No. x Width x Pitch): 5 x 0.75 x 5.9 in.
Table Travel: X Longitudinal: 78.74 in.
Table Travel: Y Cross: 31.5 in.
Vertical Head Travel: 27.56 in.
Spindle Center to Column: 31.5 in.
Spindle Nose to Table: 2.75 to 30.3 in
Longitudinal Feeds (Variable): 1.1 in.
Longitudinal Rapids: 122 ipm
Cross Feeds (Variable): 39.5 in.
Cross Rapids: 122 ipm
Spindle Taper: No. 50
Spindle Speeds: 45 to 1,500 rpm
Vertical Head Feeds: 11.81 in.
Vertical Spindle: 17.5 HP
Table Feed and Rapid: 1.75 HP
Coolant System: 1/6 HP
Floor Area (W x D x H): 18.68 x 10.08 x 9.58 ft.
Approximate Weight: 26,000 lbs.
Power Consumption (220V): 60 amps
Power Consumption (440V): 30 amps
