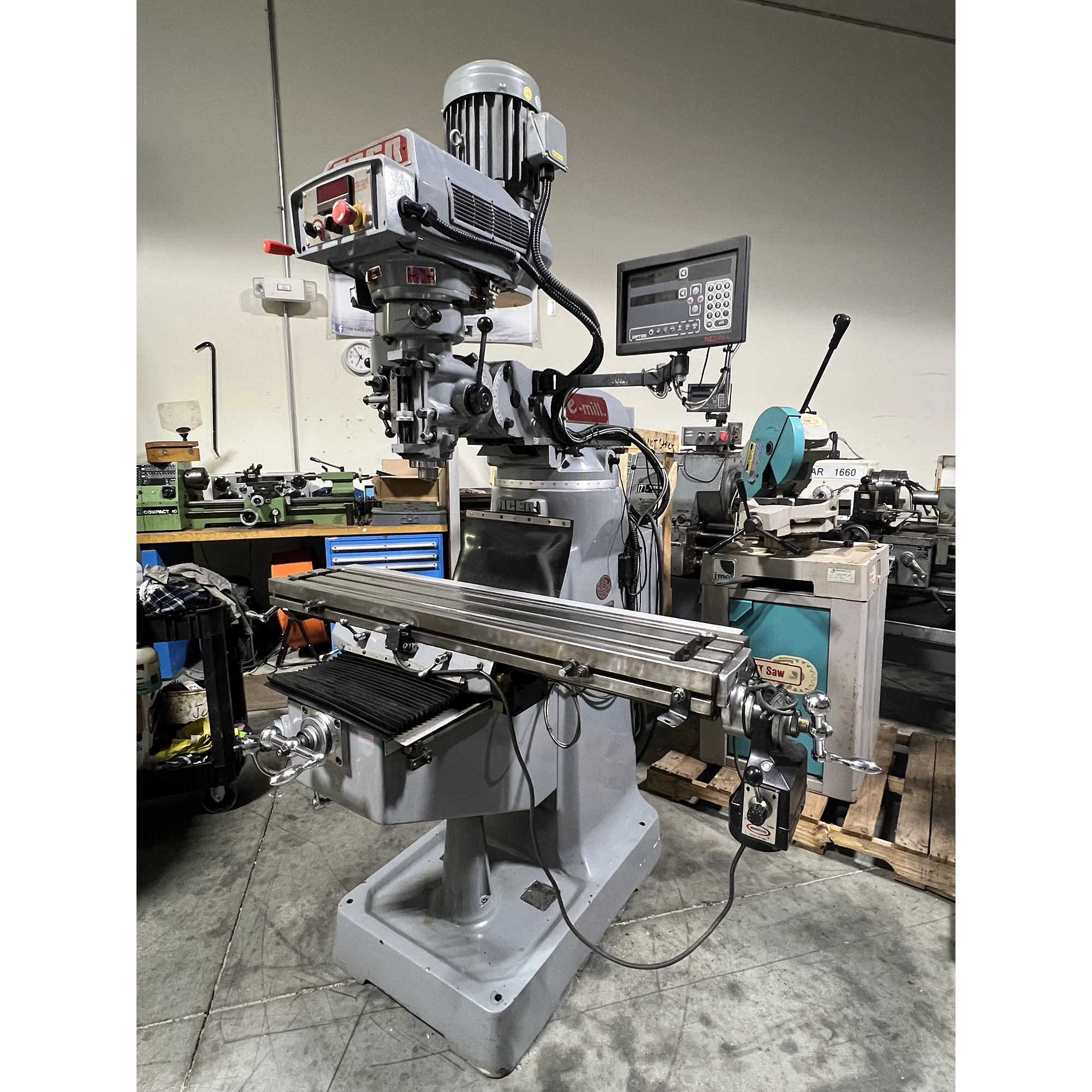

The Acer E-mill Model 3VS II Single Phase Series milling machines are “trouble free” mills. They were designed to satisfy all your milling needs by simplifying the mill head design, reduce training time, and improve productivity. Some of our Acer E-mill features are ANILAM 3300MK and 3200MK controls, which create the industry’s new standard in combining ease of use and high performance.
Fan cooling system dissipates heat efficiently.
3 HP spindle inverter motor.
A.C. frequency inverter drive.
Protective outer case for inverter keeps chips and coolant out!
Turn-in the hand handle.
Automotive painting process ensures life-long appearance.
Dish-in coolant base.
3 HP variable speed from 60 to 4,500 RPM.
One piece quill pinion & shaft.
Extra oiler lubricates the quill in its housing.
Table surface is HRC 52.
All lead screws are ground finished.
X, Y axes & knee hardened & ground dovetail ways to HRC 52.
Table Size: 9″ x 49″
Longitudinal Travel: 34″
Cross Travel: 12″
Vertical Knee Travel: 16″
Ram Travel: 12″
T-Slot Number, size: 3, 5/8″
Main Motor: 3 HP
Head Moves Right to Left: 90ª
Head Tilts Front to Back: 45ª
Spindle Drive: Variable
Spindle Speed: 60~4500 rpm
Spindle Taper: R-8
Power Quill Feeds (In/Rev.): 0.0015″, 0.003″, 0.006″
Quill Diameter: 3-3/8″
Quill Travel: 5″
Weight Approximated: 2,430 lbs
