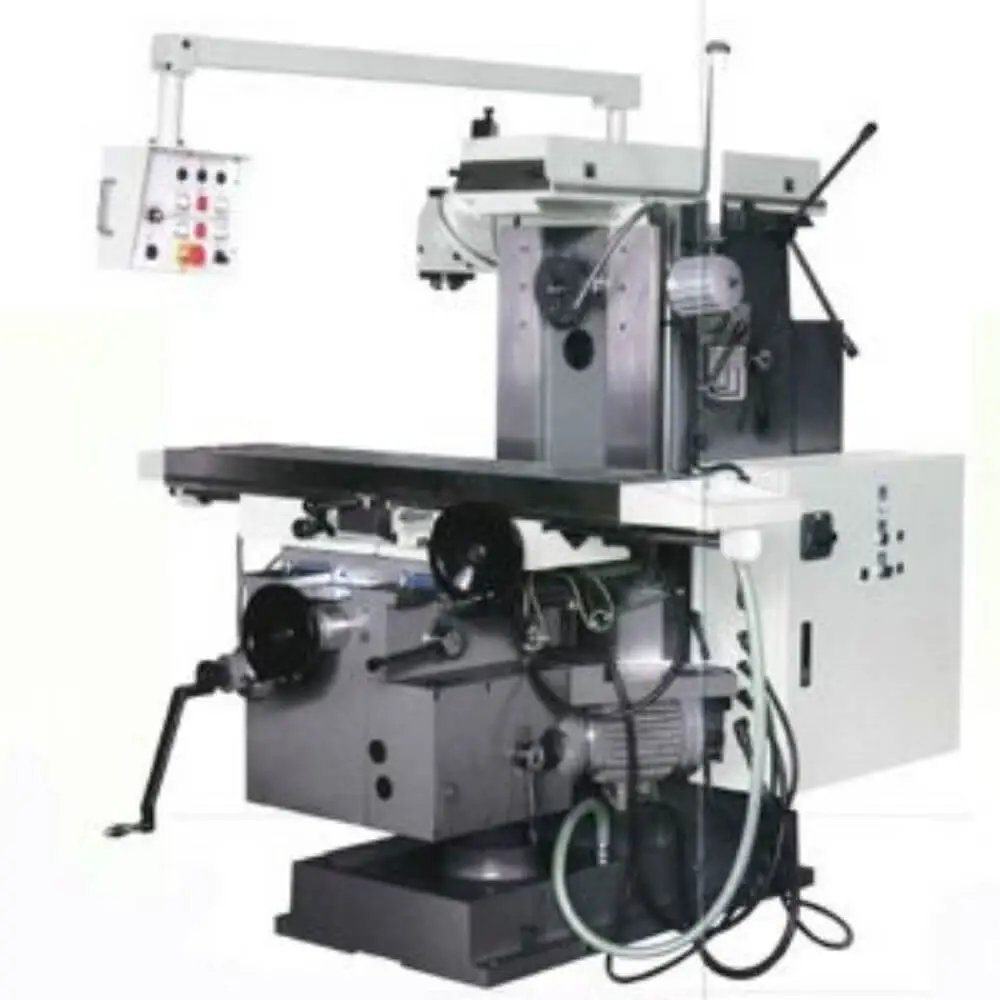

X, Y & Z Infinitely variable speed is achieved by an inverter through the gear box and controlled at the operator friendly control panel
Rapid traverse on X, Y & Z axis
Variable speed on X, Y & Z axis
High quality meehanite casting for superior rigidity and wear resistance
All gears and shafts are hardened and ground
Large 13.7” x 59” (350 x 1500mm) table with 5 T-slots
Table swivels 45° left and right
Spindle Speed Ranges 48, 67, 96, 134, 192, 269, 378, 540, 756, 1080, 1500, 2160
Optional Huron Swivel Head to bolt on horizontal spindle and upright column
Extra large square and dovetail square slide ways for greater accuracy
27mm or 1” (specify) ONG horizontal milling arbor & two (2) supports (“carrier bearing”)
All slide ways and table are hardened and ground
Turcite coated Y axis for wear resistance
Double clamps on all square slide ways
Motorized overarm with a 5.5 Hp motor
Horizontal & vertical manual drawbars
Automatic coolant system and coolant pump
Tool box and service tools
Standard 230 or 460 3 Phase (other voltage require a transformer or special order)
Table area: 59″ x 13.7″
Total load capacity: 1,540 lbs
No. of T-slots: 5
Distance between T-slots: 2.36″
T-slot size: 0.629″
Table rotation: 45º right/left
X automatic longitude: 45.27″
Y automatic cross: 15.74″
Z automatic knee: 19.68″
Distance from spindle to overarm: 6.1″
Spindle taper: ISO-40
Diameter of the main shaft nose: 3.5″-5.06″
Milling arbor: 1″
Number spindle speeds: 12
Spindle speed range: 48 – 2160 rpm
Spindle motor HP: 7.5
Spindle taper: ISO-40
Quill diameter: 4.92″
Quill travel: N/A
Number spindle speeds: N/A
Spindle speed range: 48 – 2160 rpm
Spindle motor HP: N/A
Longitudinal & cross feeds: 0.393″ – 47.55″/min
Vertical feed: 0.196″ – 23.77″/min
Feed motor HP: 2.5
Longitudinal & cross feeds: 47.55″/min
Vertical feeds: 23.77″/min
Cooling pump: 1/8 Hp
Net weight: 7,040 lbs
Shipping weight: 7,770 lbs
Shipping dimensions (L x W x H): 70″ x 89″ x 88″
