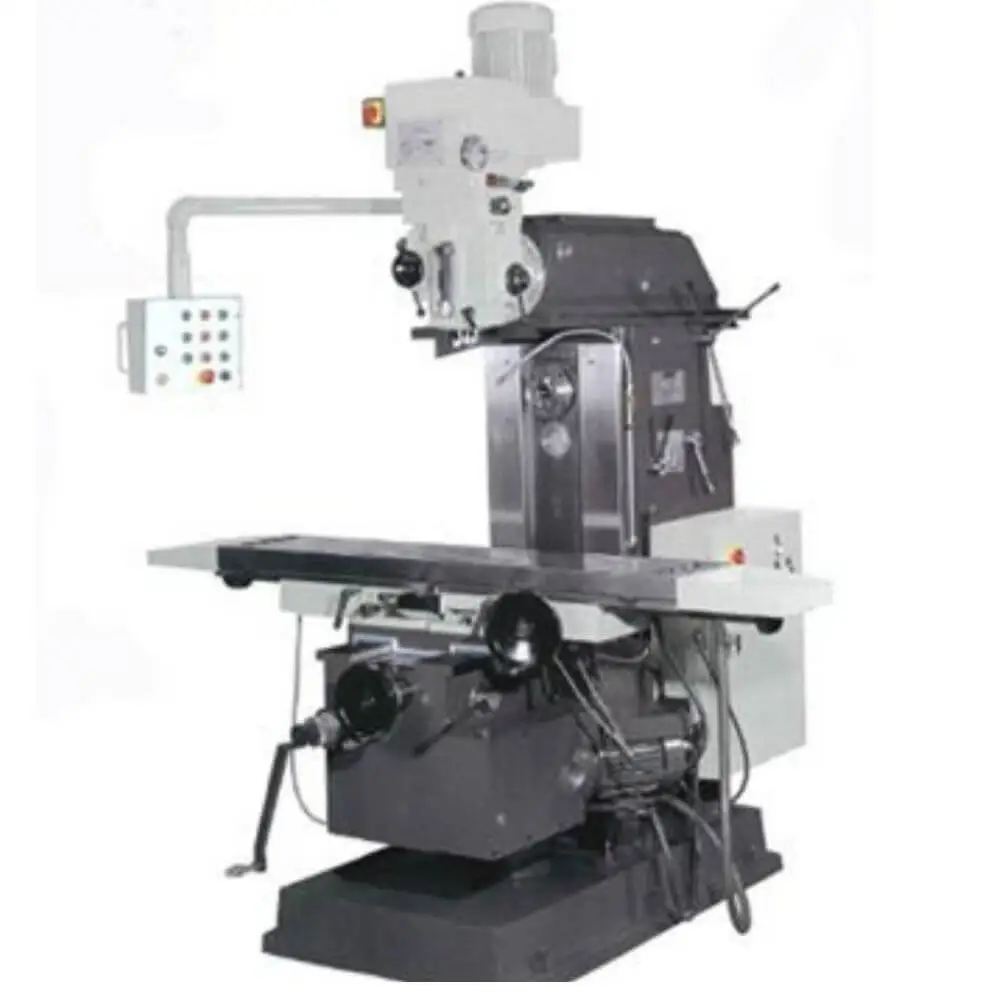

X, Y & Z Infinitely variable speed is achieved by an inverter through the gear box and controlled at the operator friendly control panel
Rapid traverse on X, Y & Z axis
Variable speed on X, Y & Z axis
High quality meehanite casting for superior rigidity and wear resistance
All gears and shafts are hardened and ground
Large 13.7” x 59” (350 x 1500mm) table with 5 T-slots
Table swivels 45° left and right
Knee Mill style head on ram w/ manual or power feed moving quill
Extra large square and dovetail square slide ways for greater accuracy
27mm ONG horizontal milling arbor & two (2) supports (“carrier bearing”)
All slide ways and table are hardened and ground
Turcite coated Y axis for wear resistance
Double clamps on all square slide ways
Motorized overarm with a 5.5 Hp motor
Horizontal & vertical manual drawbars
Automatic coolant system and coolant pump
Tool box and service tools
Standard 230 or 460 3 Phase (other voltage require a transformer or special order)
Table area: 59″ x 13.7″
Total load capacity: 1,540 lbs
No. of T-slots: 5
Distance between T-slots: 2.36″
T-slot size: 0.629″
Table rotation: 45º right/left
X automatic longitude: 45.27″
Y automatic cross: 15.74″
Z automatic knee: 19.68″
Distance from spindle to overarm: 6.1″
Spindle taper: ISO-40
Diameter of the main shaft nose: 3.5″-5.06″
Milling arbor: 1″
Number spindle speeds: 12
Spindle speed range: 40 – 1800 rpm
Spindle motor HP: 7.5
Spindle taper: ISO-40
Quill diameter: 4.13″
Quill travel: 5.9″
Number spindle speeds: —
Spindle speed range: 70 – 3600 rpm
Spindle motor HP: 5
Longitudinal & cross feeds: 0.393″ – 47.55″/min
Vertical feed: 0.196″ – 23.77″/min
Feed motor HP: 2.5
Longitudinal & cross feeds: 47.55″/min
Vertical feeds: 23.77″/min
Cooling pump: 1/8 Hp
Net weight: 7,040 lbs
Shipping weight: 7,770 lbs
Shipping dimensions (L x W x H): 70″ x 89″ x 88″
