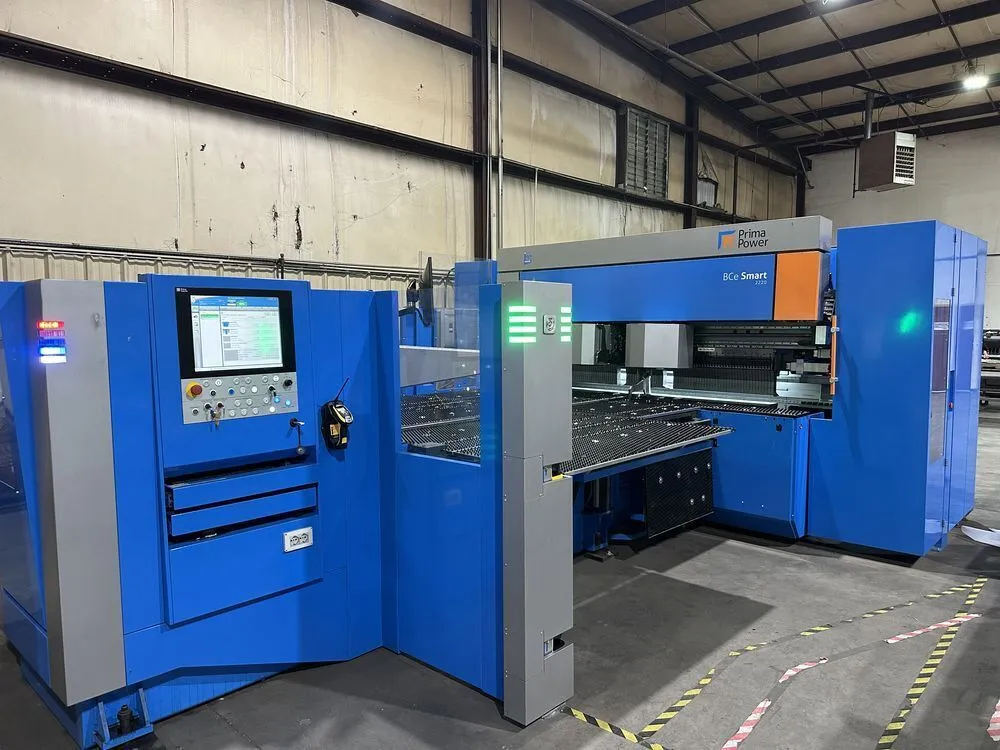

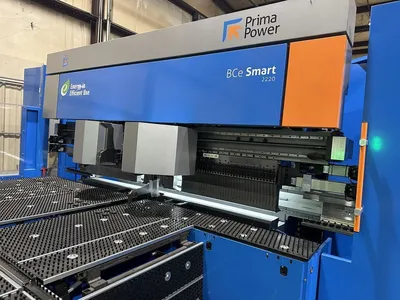

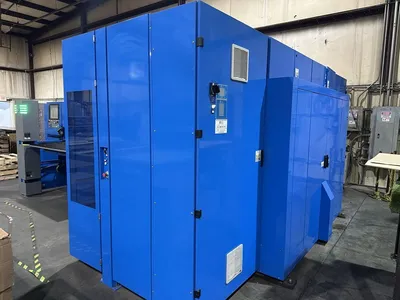

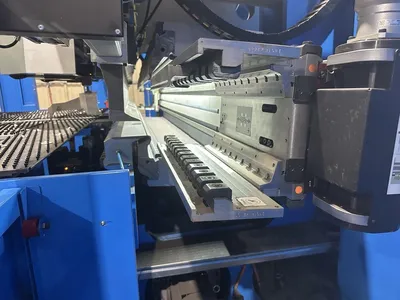

USED 2022 PRIMA POWER BCe Smart 2220

2022 PRIMA POWER model BCe Smart 2220 CNC Panel Bender, 3mm x 88.58"
The Prima Power BCe Smart 2220 is a servo-electric, semi-automatic panel bender designed for high-efficiency bending with a 2,250 mm maximum bending length and 32-ton (320 kN) bending force. Key specifications include a 204 mm maximum bending height, 3,000 mm maximum diagonal, and the capability to handle up to 3.0 mm thick mild steel.

Specifications
Max Bending Length: 2,250 mm
Max Sheet Length: 2,850 mm
Max Sheet Width: 1,500 mm
Max Panel Diagonal: 3,000 mm
Max Bending Height: 204 mm
Max Re-Entering Bend: 55 mm
Bending Force: 32 Tons
Clamping Force: 52 Tons

Max Sheet Thickness (Steel): 2.5 mm – 3 mm
Max Sheet Thickness (Stainless Steel): 1.8 mm – 2 mm
Max Sheet Thickness (Aluminum): 3.5 mm – 4mm
Min Sheet Thickness: 0.5 mm

MAXIMUM MATERIAL THICKNESS
- Steel UTS 410 N/mm2 2.5 * / 3.0 ** (mm)
- Stainless steel UTS 680 N/mm2 1.8 * / 2.0 ** (mm)
- Aluminium UTS 265 N/mm2 3.5 * / 4.0 ** (mm)
Minimum thickness 0.5 (mm)
Minimum external radius 1.5 ÷ 2 times the thickness of the sheet
Minimum height of the 1st bend 5 times the thickness of the sheet
Average absorbed power 4.0 (kWh)
Numerical Control OPEN by Prima Electro
Equipped With

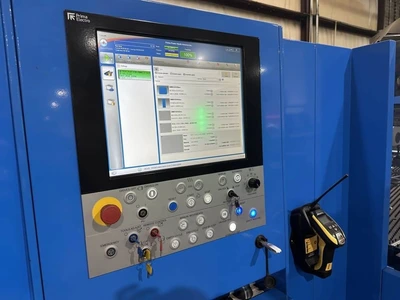

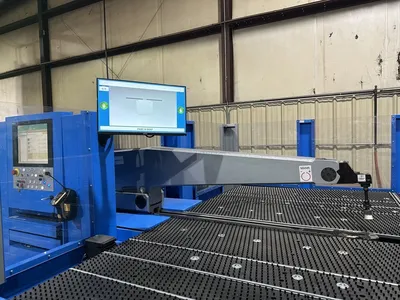

Tulus Touch Screen Control, Parts Scanner, Automatic Part Centering,

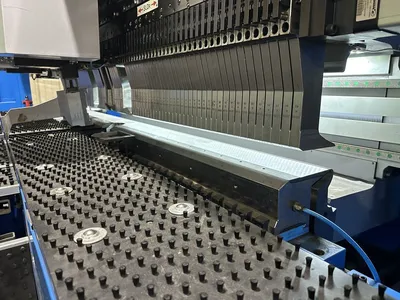

Optional ASP (Auxiliary Blades), Automatic Tool Changer

Tulus Touch Screen Control, Parts Scanner, Automatic Part Centering, Optional ASP (Auxiliary Blades), Automatic Tool Changer

Servo-Electric Technology: Offers up to 60% lower energy consumption and lower maintenance costs compared to hydraulic systems.
Automation & Tooling: Includes automatic tool change (ATC) and Tulus touch screen control.

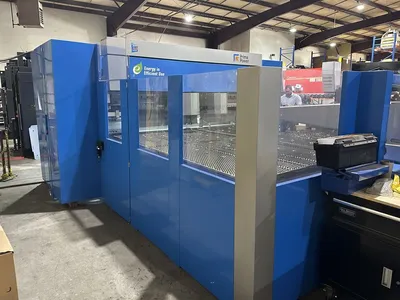

Safety: Utilizes laser scanners and light curtains, eliminating the need for physical barriers for manual loading.
Cycle Efficiency: Designed for high productivity with single-sequence loading/unloading and ergonomic, adjustable worktable sides.
Power Consumption: Average of 4.0 kWh.
