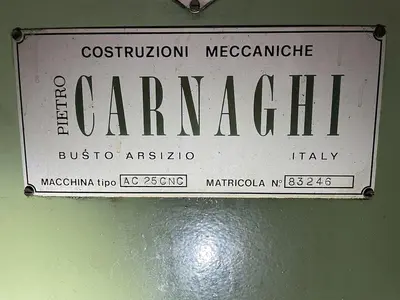

USED PIETRO CARNAGHI AC 25
Overview

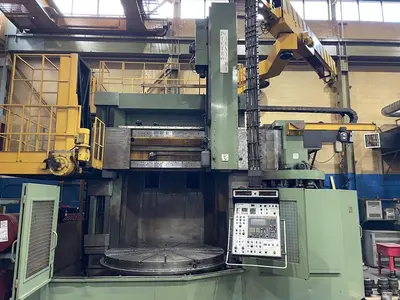

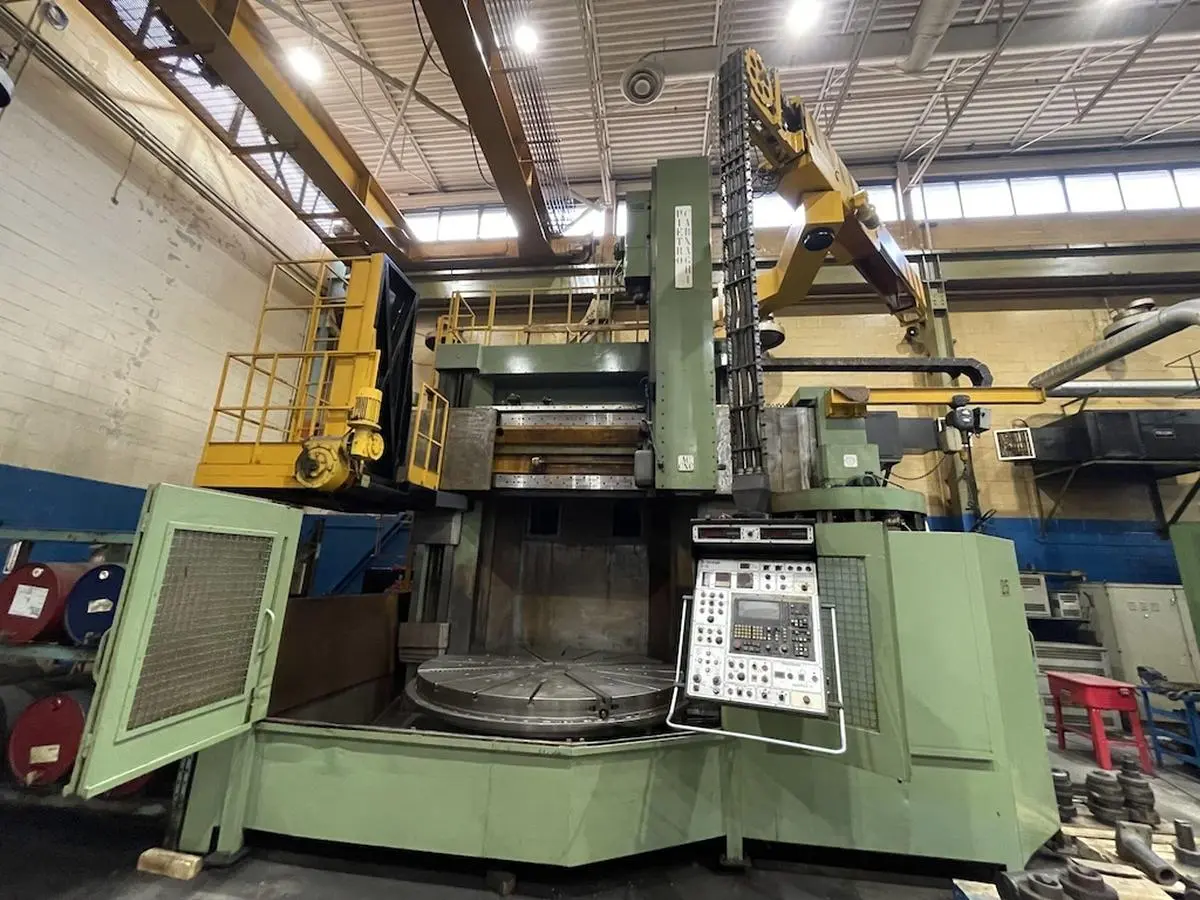

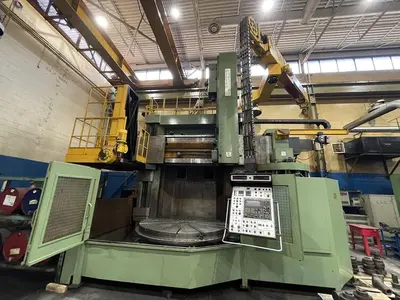

The Pietro Carnaghi AC 25 is a powerful CNC vertical boring mill (VTL) built for large-diameter, heavy-duty machining. Featuring a 98" table with 4-jaw chuck, 118" max turning diameter, and nearly 79" turning height, this machine is ideal for energy, heavy equipment, and large component manufacturing. Equipped with C-axis indexing (0.001°), ISO 50 milling spindle, 16-station ATC, and a right-angle head, the AC 25 offers full turning and milling capability in one setup. Driven by a 100 kW table motor and controlled by Siemens System 8, it delivers exceptional torque, accuracy, and versatility.
Specs
Table Diameter ( IN ): 98

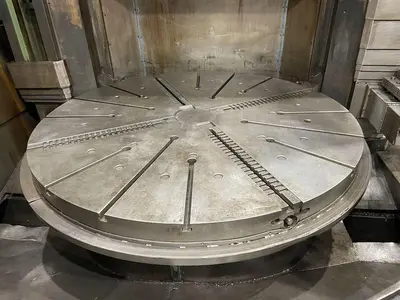

Chuck: 98" 4-Jaw
Max Turning Diameter ( IN ): 118.11
Max Height Under Rail ( IN ): 88.58
Max Turning Height ( IN ): 78.74
Ram Stroke ( IN ): 49.21
Ram Cross Section ( IN ): 9.44 × 9.44
Table Speed ( RPM ): 2 – 123 (2 Ranges)
Table Motor Power: 100 kW
C-Axis Indexing: 0.001°
Milling Spindle Taper: ISO #50
Milling Spindle Speed ( RPM ): 0 – 1000
Milling Spindle Motor: 24 HP
ATC Capacity: 16 Stations
Equipped With

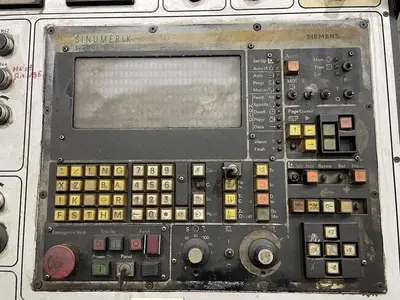

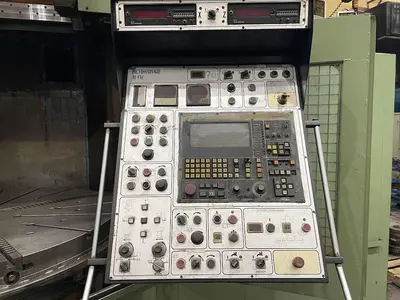

Siemens Sinumerik System 8 CNC Controls

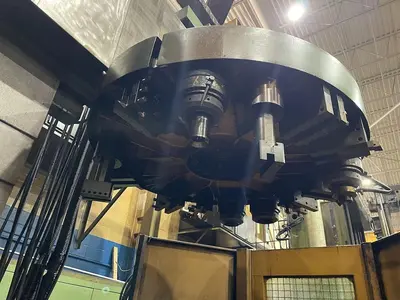

16-Station Automatic Tool Changer

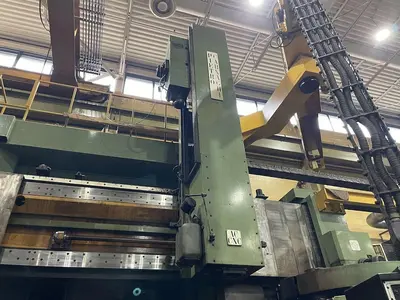

Hardened Replaceable Ways on Cross Rail
Live Milling Spindle

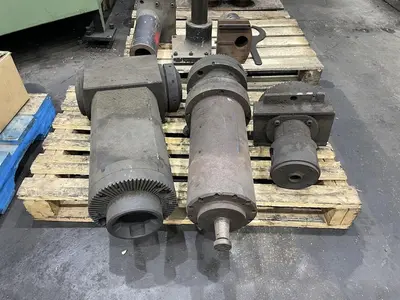

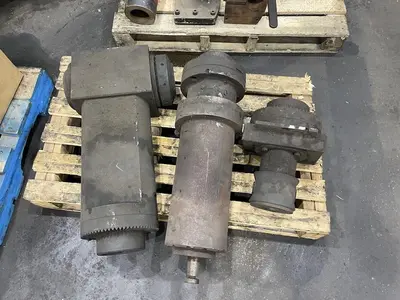

Right Angle Head
C-Axis Table
100 HP Table Drive Motor

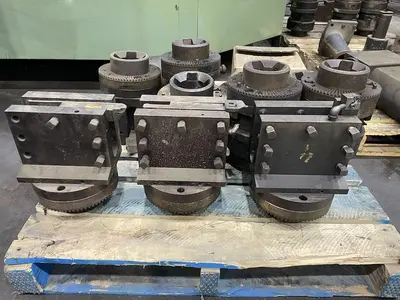

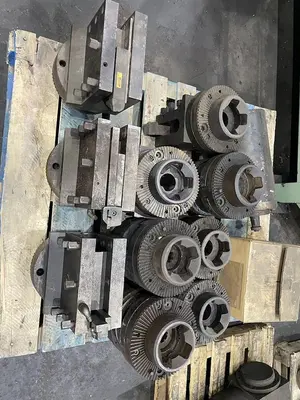

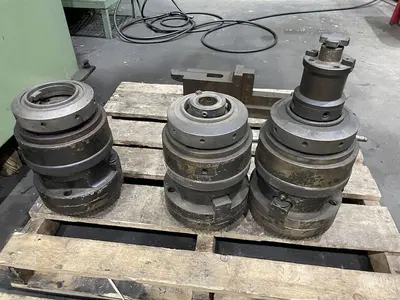

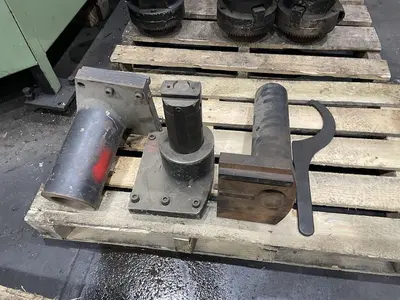

Misc Tool holders
