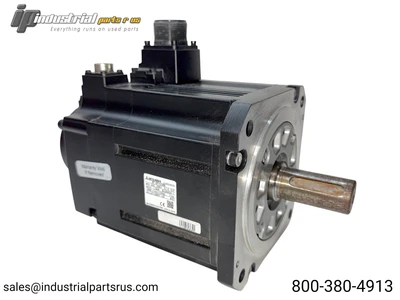

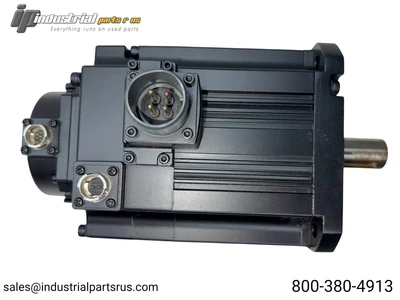

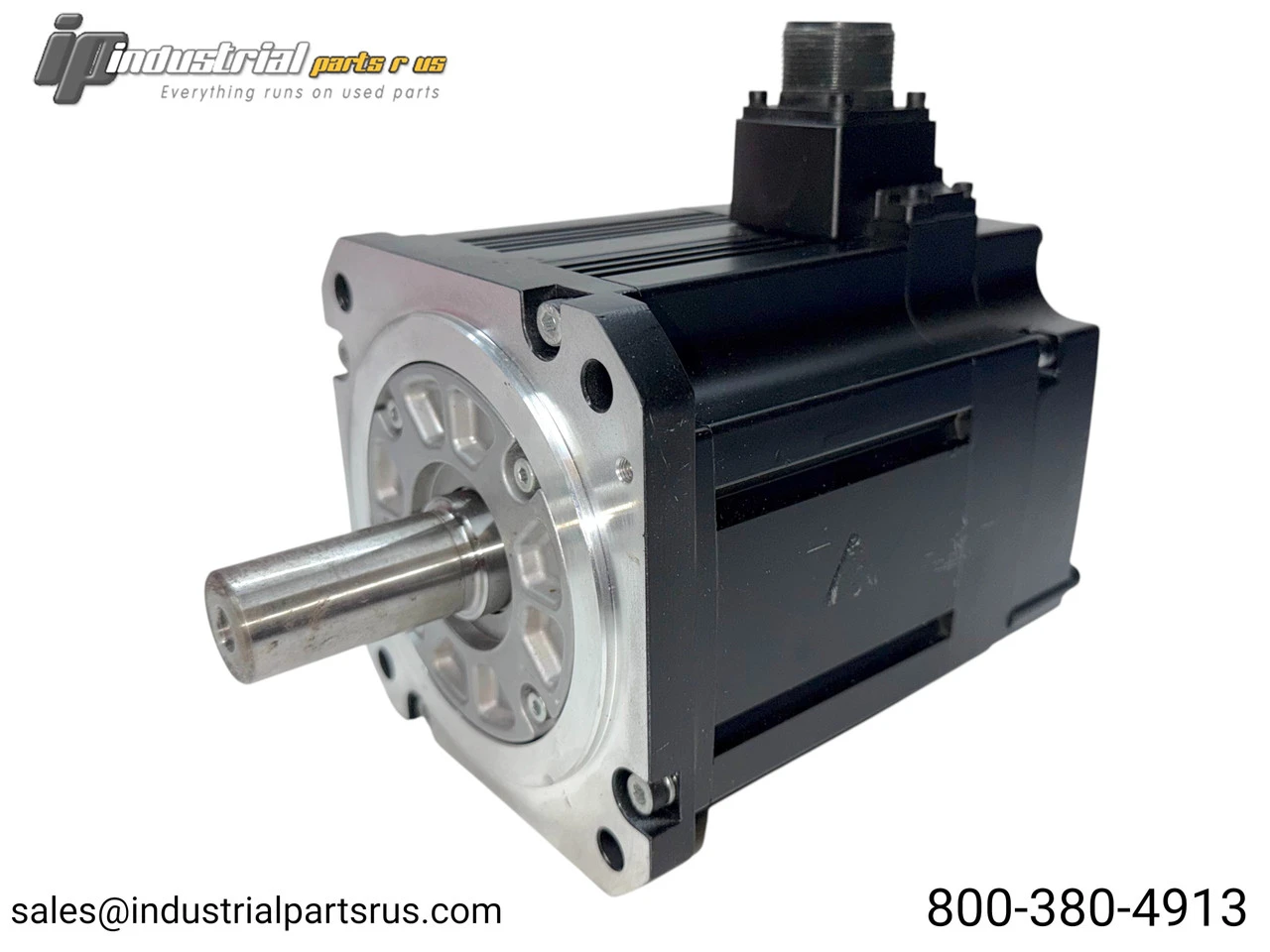

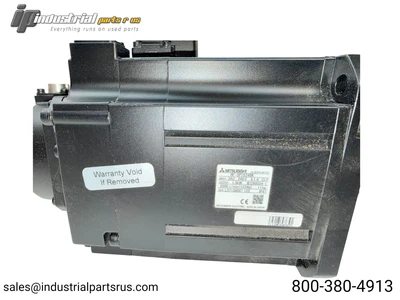

USED MITSUBISHI HF-SP1524BK

The Mitsubishi HF-SP1524BK is a medium-inertia AC servo motor from the HF Series, designed for precision industrial automation applications. This 1.5kW motor operates at 400V with a rated speed of 2000 RPM and features an integrated electromagnetic brake for enhanced stopping accuracy. With IP67-rated protection, 18-bit absolute encoder feedback, and totally-enclosed construction, it delivers reliable performance in demanding manufacturing environments.
Specifications
Rated Output: 1.5 kW
Rated Speed: 2000 RPM
Voltage: 380-480V AC, 3-phase, 50/60 Hz
Rated Torque: 7.16 Nm
Maximum Torque: 21.5 Nm
Protection Rating: IP67
Encoder: 18-bit Absolute
Brake: Electromagnetic Brake Included
Inertia Type: Medium
Cooling Method: Natural Cooling
Operating Temperature: 0-40°C
Construction: Totally Enclosed
Series: HF Series

SKU: IP16251
UPC: 721814248272
Condition: Used
Availability: In Stock
Weight: 15.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814236156
Country/Region of Manufacture: Japan
Amperage: 4.1A
Part Number: HF-SP1524BK
Shelf: H-10
Model: HF-SP1524BK
MPN: HF-SP1524BK
Voltage: 246V
Type: AC Servo Motor
Manufacturer: Mitsubishi
Series: HF Series
