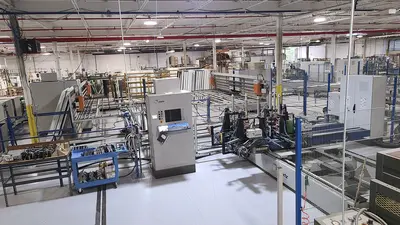

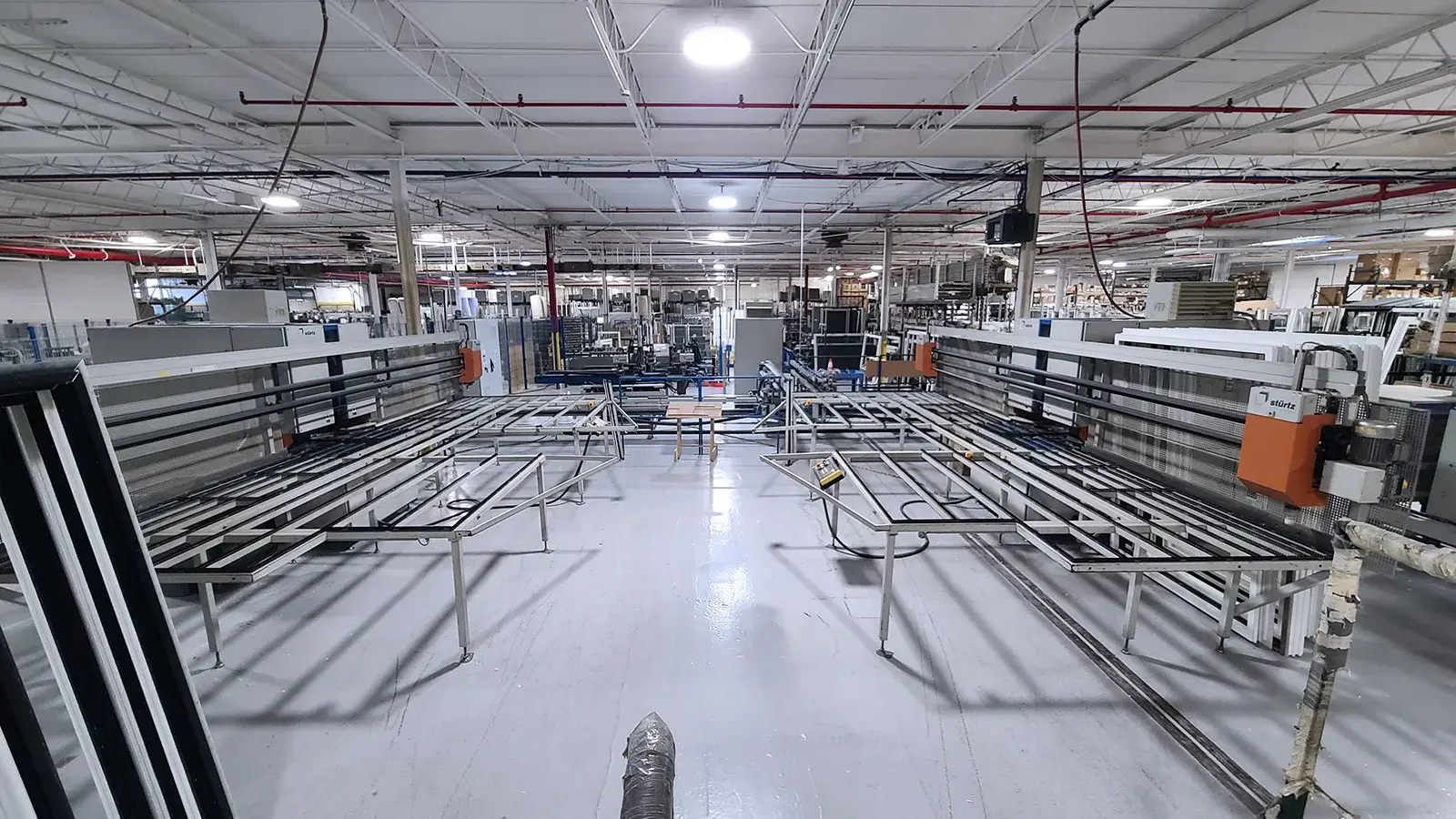

USED 1998 STURTZ SE-4AS-CNC

Maximum Frame Capacity: 78 in × 98 in (2.0 m × 2.5 m)| 4‑Head CNC Welding System
Used Stürtz Automatic Welding / Cleaning Line (1998) for efficient PVC window production. Integrated welding and corner cleaning ensure consistent quality, high output, and reliable industrial performance. Ideal for automated manufacturing lines.

Number of Welding Levels: 2
Number of Axes: 3
Number of Welding Heads: 4
Maximum Frame Capacity: 78 in × 98 in (2.0 m × 2.5 m)
Minimum Frame Capacity: 11.8 in × 11.8 in (0.30 m × 0.30 m)
Profile Height Capacity:: 4-3/4” on each of 2 levels
Operating Pressure: 7 BAR
electrical power:: 240V (built-in transformers to 400V) 3 Phase

Stürtz SE‑4 AS‑CNC: QTY. 2
Stürtz SE‑HSM201/25BS
Sturtz SF‑P 300/2 DS/S Buffer Station
Updated computer and display
2 parallel automatic corner cleaning lines with auto transfer per line
auto transfer for unloading
Automatic unloading into Buffer Station
Profile guides and support fixtures
Transfer Timing Belts
Automatic clamping
Corner cleaning compatibility
CNC head positioning
Top & Bottom - horizontal & vertical scarfing
CNC programmable cleaning disk
CNC Top & Bottom Vertical routing units
CNC Horizontal routing unit
Auto profile recognition in manual feed- auto cleaning data transfer in network with welder
Network ready - manual entry or interface for production data upload
