Driven tools and Y-axis machining in all positions|Up to 28 tools| 24 of which can be driven

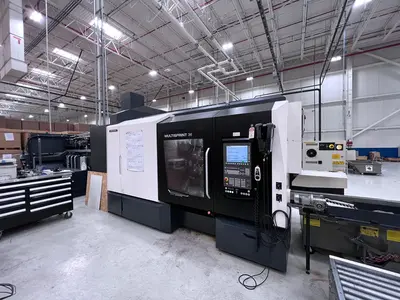

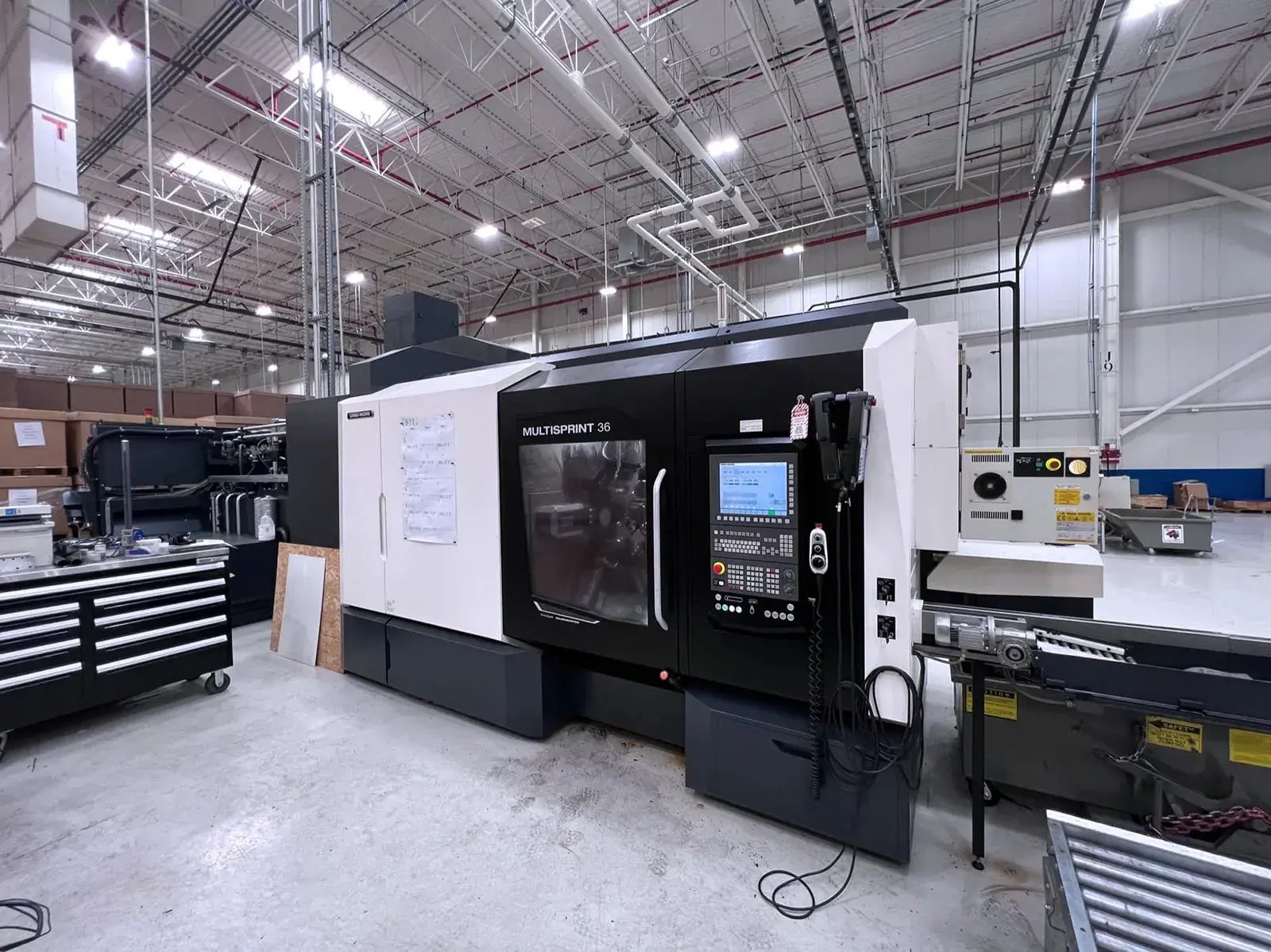

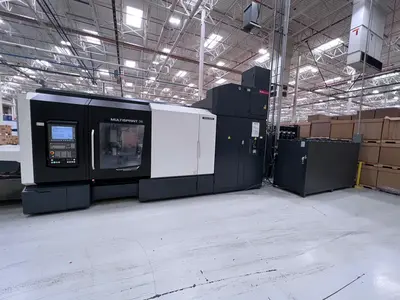

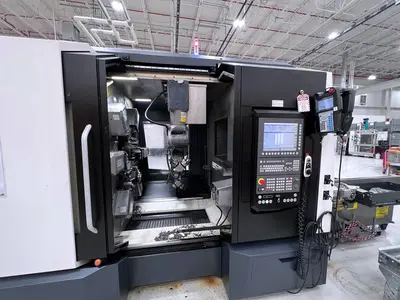

Used 2019 DMG Mori Multisprint 36 CNC Lathe featuring Fanuc 30i-B control. High-speed, multi-spindle Swiss-type lathe ideal for complex, high-precision, high-volume production in demanding industrial applications.
Max Bar Capacity: 1.41″ (36mm)
Max Bar Feed: 3.93″
Max Bar Feed with SWISSTYPEkit (Code I-B1270): 7.08″
Number of Work Spindles: 6 Spindle pitch circle diameter: 14.96″
Max Spindle Speed: 7500 RPM
spindle power: 20 HP Bar
Max Length: 0.13″
Bar Min Loading Length: 0.09″
Number of Units (Cross Slides with X – Y Axes Movements): 6
X-Axis Max Travel Pos.1-6: 1.96″
Y-Axis Max Travel Pos.1-6 mm: +/- 1.96″
Main Spindles Z-Slides Number of Slides: 6
Z-Axis Travel: 3.93″
Z-Axis Travel Max. Travel with SWISSTYPEkit (Code I-B1270): 7.08″
Machine Weight: 33,000 Lbs.
Machine Dimensions: 401.57″ x 84.65
Replacement cost: Approx 1.5 Million
Fannuc 30i-B Control
Chip Conveyor
Hinged Type High Pressure Device 0
25/5/12 MPa
Oil Mist Collector for Oil/Emulsion
Tool-Holder Block with no.3 Quick-Change Junctions
Motor Drive for Tool-Holders 8.000 rpm
Chiller System for Machine & High Pressure Device
(6) Collet Appl. Hainbuch TOPlus 40 W/O Axial Movement
Manual Collet Replacement dev. Hainbuch TOPlus 40
(12) Clamping Collet Type Hainbuch TOPlus 40 Max d.36
Drill/Boring-Holder Ø25mm pos.TH02 Main Spindles
(8) Tool-Holder ext. for KM32 for Main Spindles
Drill/Boring-Holder Ø25mm pos.TH03 Main Spindles
Radial Driven Unit 3900 rpm
Ø16
ext. Cooling
G-Interface for Blank Loading Device Transformer DMG MORI SMARTkey Turning package (4 keys)
G- Set of (2) Fanuc Robots in the Working Area for the Workpieces Loading/Unloading
G-Set of (2) Axial Rolling Head FETTE Type with (2) Sets of Rollers
Pneumatic Device for Mechanical Reloading
G-Special Device for Part Feeding
Assembled on the Slide
Complete with Arm and Adaption
G-Adaptor for Presetting Outside the Machine SK011 G-Interface for Blank Loading Device
Including Signal and Blank Handling in the Machine
