USED PEXTO PX36-A

1966 Pexto PX36-A Universal Box & Pan Brake36" x 16 Ga Capacity | Professional Grade | S/N 3/66This Pexto PX36-A is the "gold standard" of portable box and pan brakes. Manufactured in 1966, it features the heavy-duty cast-iron construction that made the Pexto brand legendary before the brand transitioned to modern lightweight designs. This is a 16-gauge capacity machine, providing significantly more bending power and precision than standard 20- or 22-gauge hobbyist brakes.Technical SpecificationsManufacturer: Pexto (Peck, Stow & Wilcox Co.)Model: PX36-AYear of Manufacture: 1966 (S/N 3/66)Capacity (Mild Steel): 16 Gauge (.060")Capacity (Stainless): 20 Gauge (.036")Bending Length: 36 InchesMax Lift of Beam: 1 InchBox/Pan Depth: 3 InchesApprox. Weight: 450 lbs (Unit only)Key Machine HighlightsUniversal Design: Specifically engineered for versatility, allowing for the creation of complex boxes, pans, and chassis with crisp, accurate 90-degree bends.Heavy-Duty Castings: The 1960s era "Pexto Blue" frames are known for minimal deflection, ensuring that your bends are consistent across the entire 36" width.Independent Clamping: Features dual-handle clamping that allows you to secure material with varying pressures—essential for preventing material slip during intricate folds.Precision Fingers: Designed to accept a full range of finger widths (1" to 6"), making it customizable for almost any project width requirement.Adjustable Rake & Tension: Simple, external adjustment bolts allow the operator to fine-tune the machine for different material thicknesses and radii.

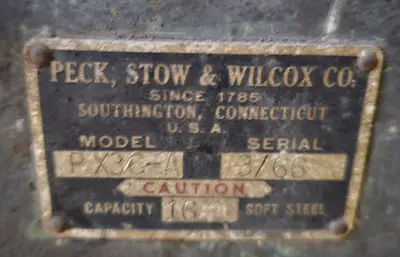

S/N: 3/66
Capacity: 16 Ga. Soft Steel
