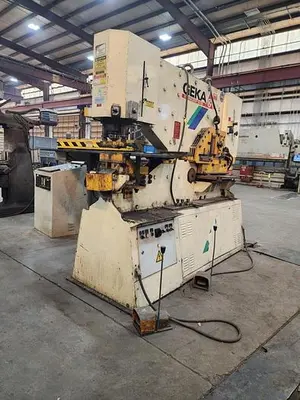

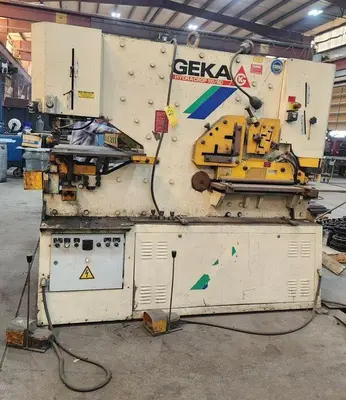

USED 2005 GEKA 110/SD

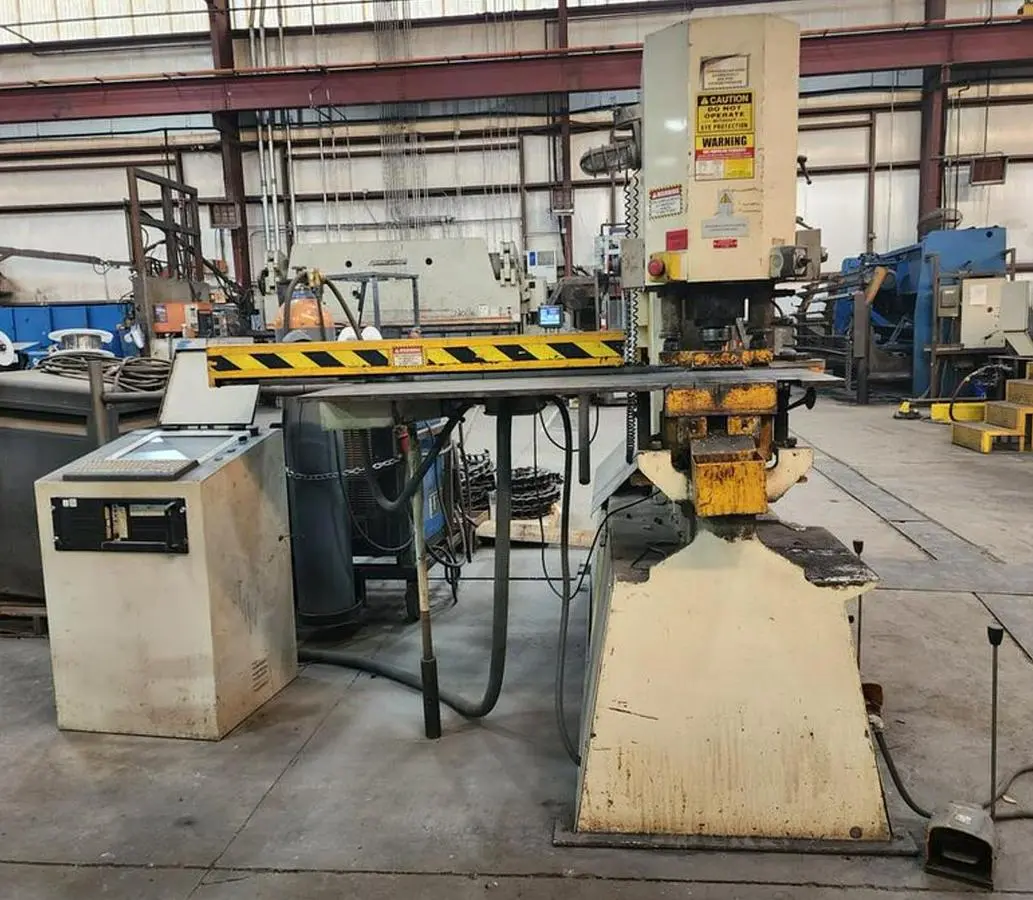

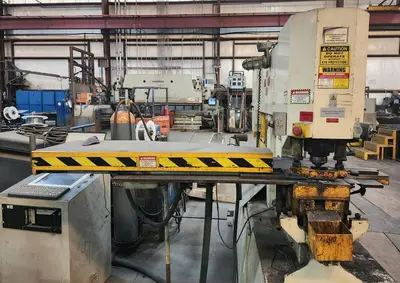

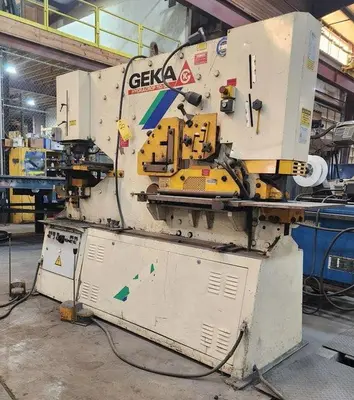

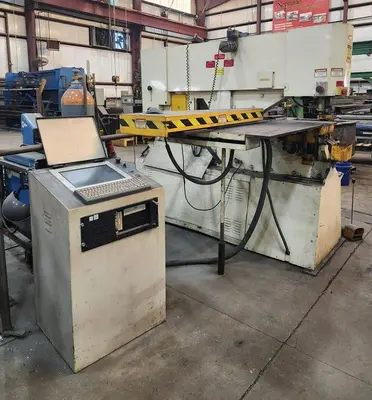

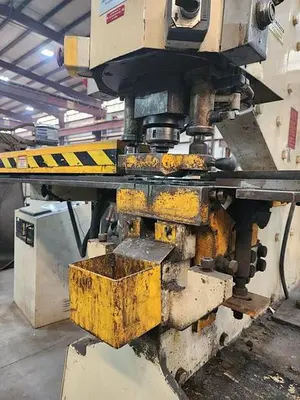

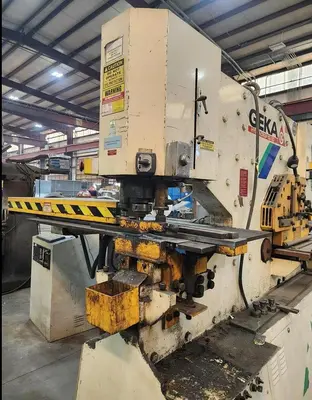

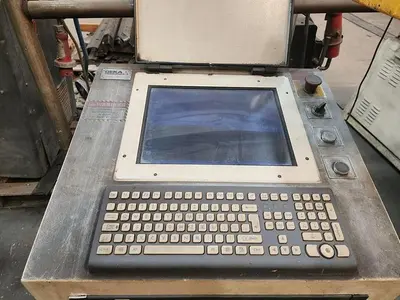

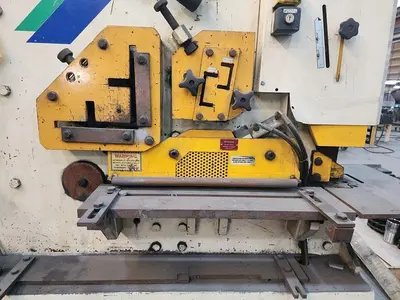

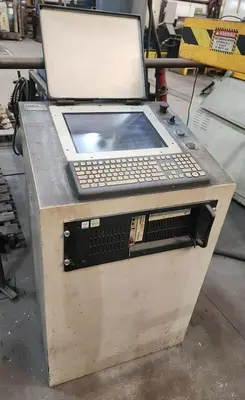

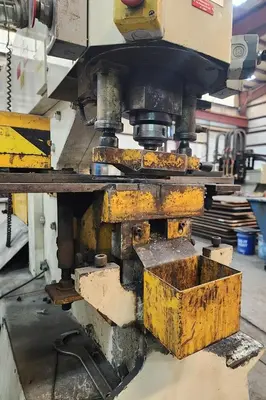

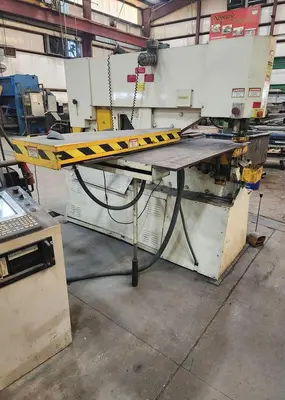

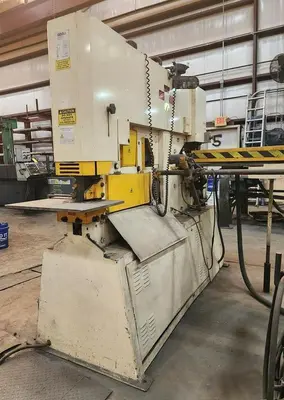

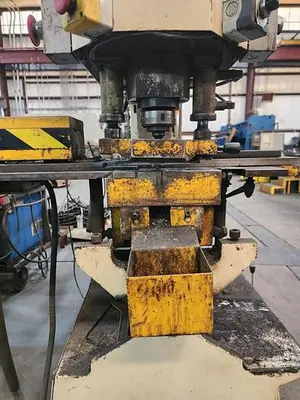

2005 Geka Hydracrop 110/SD Dual Cylinder Ironworker120-Ton Punching Capacity | Extended 24" Throat | CNC Gauging OptionThis 2005 Geka Hydracrop 110/SD is a versatile, high-capacity industrial ironworker designed for multi-operator efficiency. Featuring dual independent hydraulic cylinders, this machine allows two operators to work simultaneously—one at the punching station and another at the shearing/notching stations—without any loss of power or speed.This specific unit includes the factory CNC Gauging/Positioning option, offering a significant production advantage for repeatable hole patterns and precision plate work.Important Note on ConditionCNC Status: The CNC gauging system is currently non-functional and requires a new servo motor to restore automated positioning.Tooling: This machine is being sold without a tooling package (punches/dies). It is ready for the buyer to install a new set of Geka-compatible tooling specific to their job requirements.Machine Features & CapabilitiesDual Cylinder Design: Two independent workstations powered by separate cylinders for maximum shop throughput.Extended "SD" Throat: Features a 24-inch deep throat on the punching station, ideal for working with oversized plates and structural sections that standard machines cannot reach.5 Independent Workstations:Punching: High-tonnage station with a quick-change punch holder and gooseneck die holder for structural beams.Flat Bar Shear: Progressive shearing with minimal deformation; cuts flat bar up to 24" x 5/8".Angle Shear: Patented rectilinear motion system for cutting angles up to 6" x 6" x 1/2" with zero material loss.Bar Cropper: Standard blades for shearing solid round and square bars up to 2".Notching: Rectangular notching station for precise cutouts in plate and tube.Robust Construction: Massive frame weight (approx. 8,300 lbs) ensures long-term accuracy and minimal deflection under load.Technical SpecificationsPunching Power: 120 US TonsShearing Power: 180 US TonsThroat Depth: 24" (Extended SD Version)Motor: 12.5 HP, 3-PhasePunch Capacity: 1-1/2" Diameter through 3/4" PlateFlat Shear Length: 24" BladeAngle Shear (90°): 6" x 6" x 1/2"(1077) Geka 110/SD Ironworker - YouTube

Gauging System: Length
Stroke Length: 3-5/32"
Working Height: 45-1/8"
Punch Throat Depth: 24"
Bar Cropper: 2" Square & Round
Bar Shear Capacity: 2"
Punch Capacity: 1-1/2" in 3/4"
Tooling: Length
