USED 2005 ROTAMILL B-2.6

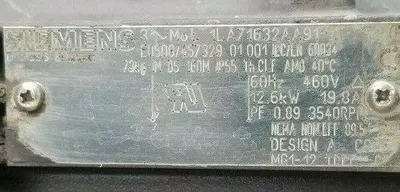

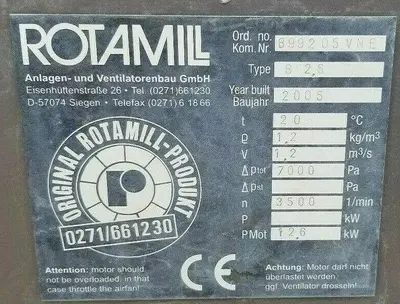

The Rotamill Type B-2.6 equipped with a 12.6 kW motor is the high-performance "flagship" configuration for this series. In industrial terms, 12.6 kW converts to approximately 16.9 HP (commonly marketed as 16 HP or 17 HP).Because it is a direct-drive unit spinning at 3,500 RPM, this motor size provides the necessary torque to handle high static pressures without the "lag" or "slip" common in belt-driven fans.Technical Specifications: Rotamill B-2.6 (12.6 kW)Manufacturer: Rotamill (Germany)2005Motor Power: 12.6 kW (16.9 HP)Type: Direct Drive Centrifugal BlowerSpeed: 3,500 RPM (60 Hz configuration)Electrical: 460V | 3-Phase | 60HzFull Load Amps (FLA): Approx. 22.0 – 24.0 Amps (@ 460V)Weight: Approximately 425 lbs (Unit weight varies slightly by motor brand)Year of Manufacture: Commonly found in mid-2000s (e.g., 2005) through 2015.Performance DataAt this power level, the B-2.6 is designed to be a "high-pressure" specialist.Airflow Capacity: Estimated 1,500 – 1,800 CFM.Static Pressure: Capable of generating 25" to 30" w.g. (water gauge). This is significantly higher than standard ventilation fans and is ideal for "scrubbing" air or pushing it through dense HEPA filters.Inlet/Outlet: Usually features a 10" to 11" circular inlet and a rectangular discharge (approx. 8" x 10").Key Advantages of the 12.6 kW BuildThe 17 HP Advantage: Most blowers in this size class use standard 10 HP or 15 HP motors. The 12.6 kW (17 HP) motor gives the B-2.6 a "safety margin," allowing it to run at higher static pressures for longer durations without overheating.Precision German Engineering: Rotamill housings are often continuously welded and powder-coated, providing much better vibration dampening than bolted American utility sets.Direct-Coupled Reliability: By removing belts and pulleys, the 12.6 kW of power is delivered directly to the impeller, resulting in higher efficiency and zero belt maintenance.

Power frequency: 60 hz
Fan & blower type: Other Fan & Blower Parts & Accs
Custom bundle: No
Supply voltage: 460 V
Country of manufacture: N/A
Power phase: 3 Phase
