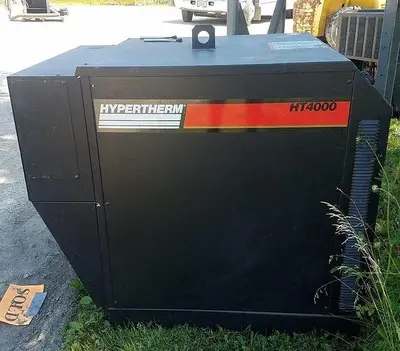

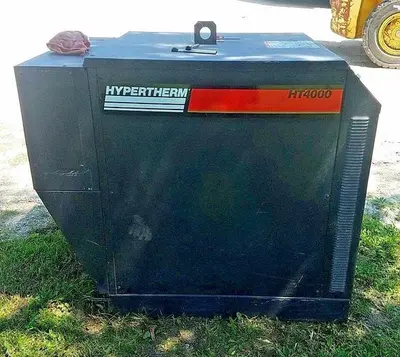

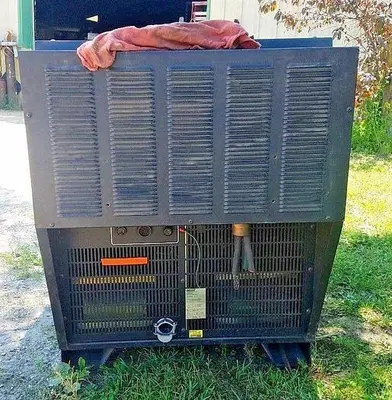

USED HYPERTHERM HT-4000

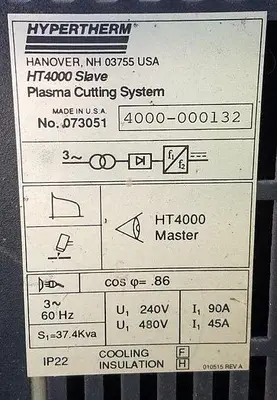

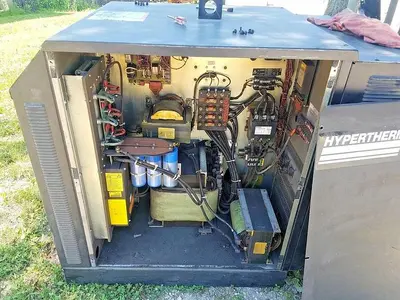

Hypertherm 800A High-Definition Plasma Cutting SystemModel: HT-4000 Dual-Power Config | Master S/N: 4000-000132 | Total Output: 800 AmpsMaximum Industrial PowerThis dual-source configuration combines a Master Power Supply (S/N 131/132) with a dedicated Slave Unit. In this setup, the Master unit provides the control logic, gas sequencing, and CNC interface, while the Slave unit provides the additional current necessary to pierce and cut extreme plate thicknesses.Technical Specifications (Dual-Unit Setup)Combined Output: 800 Amps @ 100% Duty CycleInput Voltage: 240/480V, 3-Phase, 60 HzProduction Pierce: Up to 2" (50mm) Mild SteelSeverance Capacity: Up to 3.2" (80mm) Mild Steel Dimensions (Total) Approx. 68" W x 48" D x 51" HCombined Weight: 3,200 lbsOperational ConfigurationMaster Unit (S/N 000132): Acting as the "brain," this unit contains the primary microprocessor control board and I/O interface for CNC integration.Slave Unit: Synchronized via a factory interconnect harness to provide balanced current distribution across the torch arc.Reliable Transformer Design: Unlike modern inverter units, the HT-4000 uses heavy copper-wound transformers, offering superior durability in high-debris and high-heat environments.
