USED GRIVNA MACHINE INC. 2200

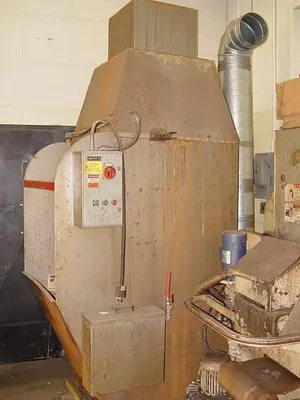

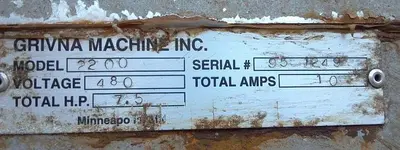

1995 Grivna 2200 CFM Wet-Type Dust CollectorHigh-Capacity 7.5 HP System | Engineered for Explosive Metal DustsThis Grivna Model 2200 is a heavy-duty wet scrubber designed to provide an intrinsically safe environment for processing explosive materials, specifically aluminum, titanium, and magnesium dust. By pulling air through a specialized water bath, it neutralizes sparks and prevents the hydrogen gas buildup associated with dry collection of these materials.Unit SpecificationsModel: 2200Serial Number: 95-1249Year of Manufacture: 1995Capacity: Approx. 2,200 CFMMotor: 7.5 HP Industrial MotorElectrical: 240/440V | 3-Phase | 60Hz (Currently wired for 440V)Filtration: Water-Impingement Scrubber (Filterless)Key Features & Performance HighlightsNFPA 484 Compliance Foundation: This unit uses water-bath technology, which is the primary method recommended for safely handling combustible metal dusts that are reactive in dry environments.7.5 HP High-Performance Motor: Provides significant suction power, allowing for multiple intake drops or longer duct runs while maintaining the necessary face velocity for heavy dust capture.Low Operating Costs: Because the unit uses water for filtration rather than expensive cartridge filters, the ongoing maintenance costs are significantly lower than dry systems. There are no "blinded" filters to replace.Rugged "Legacy" Build: Manufactured in 1995, this unit features the thicker-gauge steel housing and robust mechanical components that Grivna was known for, offering superior durability compared to newer, lightweight models.Self-Venting Design: Engineered to allow for the safe escape of gases, a critical safety feature when collecting aluminum dust which can release hydrogen when submerged in water.

Voltage: 460 V
Equipment type: Industrial Dust Collector
