USED 2010 KNUTH AHK-32160

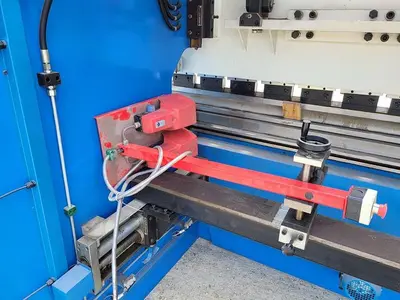

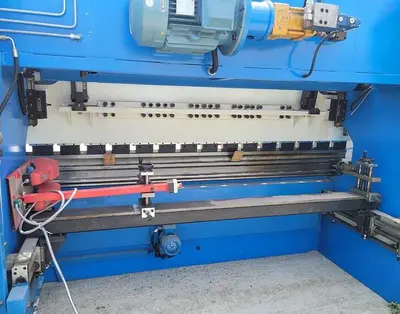

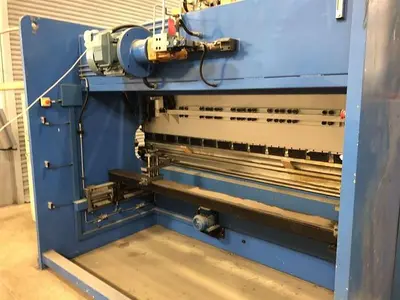

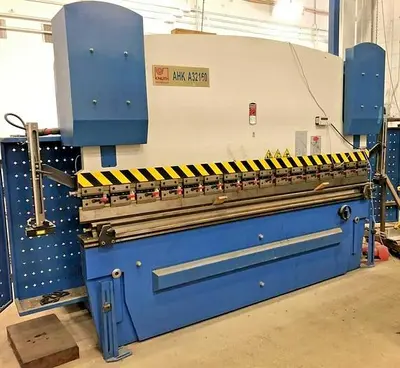

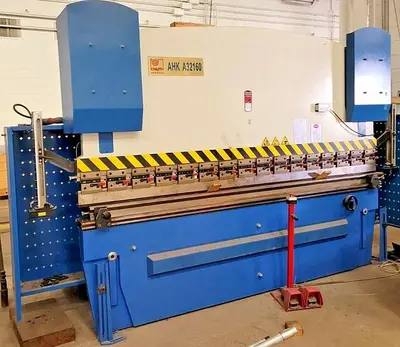

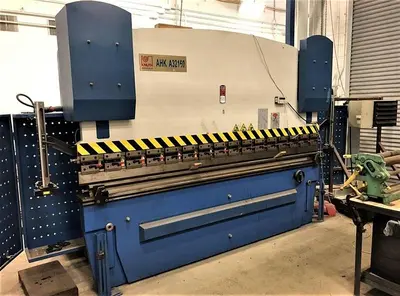

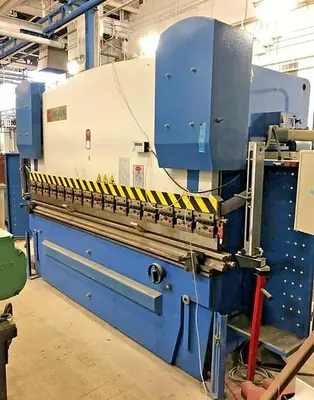

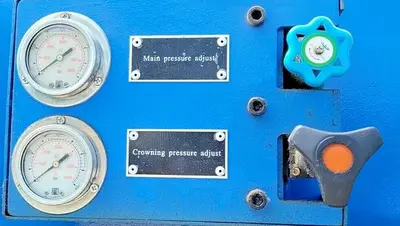

2010 Knuth AHK-32160 Hydraulic Press Brake160 Ton x 121" O.A.L. | 3-Axis NC Backgauge | S/N 2117The Knuth AHK-32160 is a high-production hydraulic press brake engineered for precision and heavy-duty reliability. Manufactured in 2010, this machine features a massive 160-ton bending force and a 10-foot bed, making it a powerhouse for everything from thick plate fabrication to long-form structural bending. This specific unit is equipped with a 3-axis backgauge and integrated hydraulic lower table crowning, ensuring constant angular accuracy and straight bends across the entire workpiece.Technical SpecificationsCapacity: 160 Tons (1600 kN)Overall Length of Bed (O.A.L.): 121" (3075 mm)Distance Between Housings: 106" (2700 mm)Year of Manufacture: 2010Serial Number: 2117Stroke Length: 6.3" (160 mm)Throat Depth: 13.7" (350 mm)Backgauge: 3-Axis Motorized (X, R, and manual/motorized Z)Bending Speed: 0.35 in/s (9 mm/s)Approach Speed: 3.1 in/s (80 mm/s)Main Motor: 15 HP (11 kW)Machine Weight: Approx. 21,168 lbs (9,600 kg)Key Features & PerformanceIntegrated Hydraulic Crowning: The AHK series features a sophisticated hydraulic compensation system in the lower table. This automatically offsets frame deflection under high tonnage, guaranteeing a perfectly straight bend without "boing" in the center of the sheet.3-Axis Precision Backgauge: Features motorized control for depth (X-axis) and height (R-axis), allowing for rapid setup of complex, multi-stage bending sequences.Heavy Torsion Bar Synchronism: A massive mechanical torsion shaft connects the two hydraulic cylinders, ensuring the ram remains perfectly level even during off-center or asymmetrical loading.Advanced Safety Suite: Equipped with the Fiessler Safety System (laser guarding) and rear light curtains to meet high industrial safety standards.Rigid Construction: The frame is a stress-relieved steel weldment designed for maximum rigidity and long-term service life in a production environment.Condition & ToolingController: Weintek / Knuth NC Touchscreen Interface for easy program storage and recall.

Seller notes: “USED - IN EXCELLENT WORKING CONDITION”
Control: CNC
No. of axis: 3
Power source: Electric, Hydraulic
Capacity: 160 ton
Custom bundle: No
Bending length: 10.5 ft
Modified item: No
* Capacity: 160 Tons (1600 kN)
* Distance Between Housings: 106" (2700 mm)
* Stroke Length: 6.3" (160 mm)
* Throat Depth: 13.7" (350 mm)
* Bending Speed: 0.35 in/s (9 mm/s)
* Approach Speed: 3.1 in/s (80 mm/s)

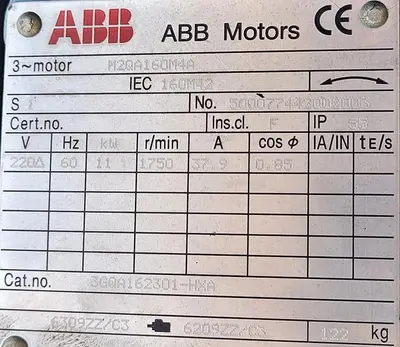

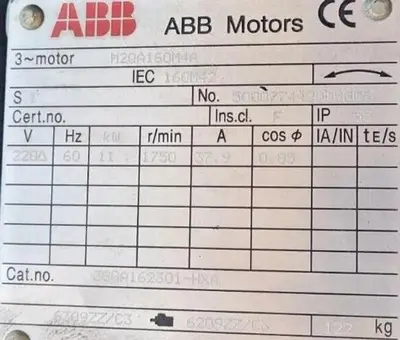

* Main Motor: 15 HP (11 kW)
