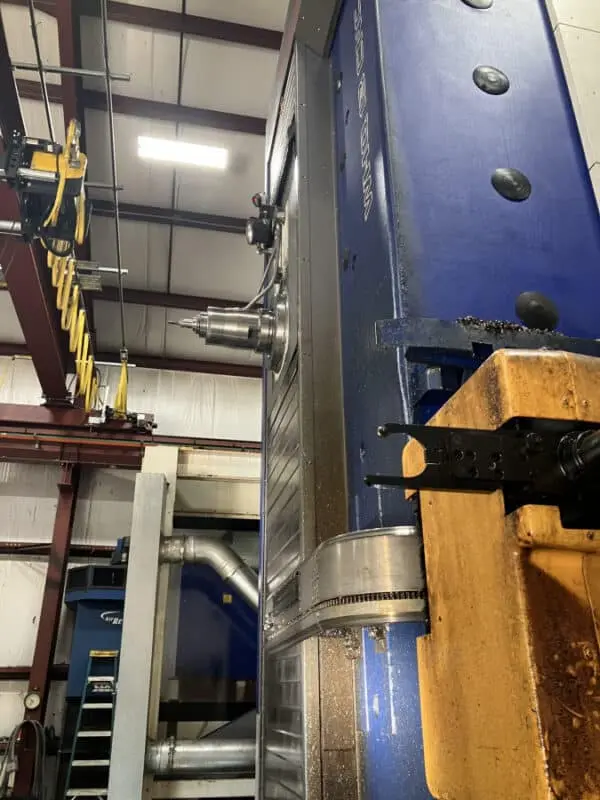

TOS WHQ-13 HBM – 2012

TOS WHQ13 CNC HORIZONTAL BORING MILL WITH HEIDENHAIN i530 CONTROL

NEW 2012
Control ……………………..: Heidenhain TNC i530

Spindle Diameter ……………..: 5.1″

Spindle Taper ………………..: #50

Maximum Spindle Speed ………..: 3,000 RPM

Spindle Drive Motor …………..: 50 HP

Travels X-Axis ……………….: 197″ (5 Meter)

Y-Axis (Vertical)………: 118″ (3 Meter)

Z-Axis (Spindle) ………: 39″ (1 Meter)

W-Axis Column in/out …..: 70″
Table Size …………………..: 71″ x 98″ (Rotary)

Maximum Load …………………: 56,000 Lbs.

Rotary Table Index: 360,000 Degrees

T-Type (Column In/Out)

All Hardened Ways

Spindle Oil Temp. Compensation

Coolant Filter Paper Roll Type

Coolant Through Spindle

Renishaw Probe

Chip Conveyor

Auto Lube System

Mist Collector

Spindle Nose Support

40 ATC Tool Changer
Machine Hours:

Control on 29,904

Machine on 27,506

Program run 7380

Total Spindle Time 9394
