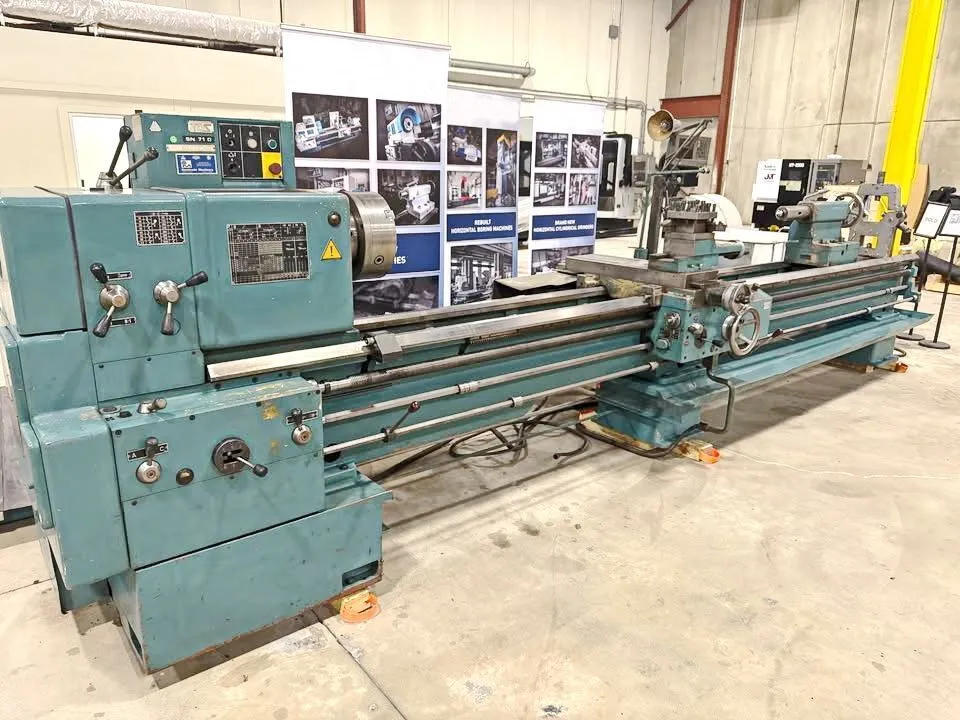

1996 TOS SN 71 / 4000 Engine Lathe, Digital Readout, Tailstock, Steady Rests, Coolant System, Quick-Change Threading And Feed Gearbox
| Swing | 28" | 711.2 mm |
| Swing Over Carriage | 19" | 482.6 mm |
| Chuck | 11" | 279.4 mm |
| Centers | 157" | 3,987.8 mm |
| Spindle Bore | 3" | 76.2 mm |
| Spindle Nose | D1-8 | D1-8 |
| RPM | 1,000 RPM | 1,000 RPM |
| Power | 11 hp | 8.2 kW |
| X-Axis | 15" | 381 mm |
| Z-Axis | 145" | 3,683 mm |
| Quill Taper | MT5 | MT5 |
| Quill Travel | 7.5" | 190.5 mm |
| Made In | Czech Republic | Czech Republic |
| Dimensions | 230" X 70" X 72" | 230" X 70" X 72" |
| Weight | 16,000 lb | 16,000 lb |
Digital readout (DRO)
(2) steady rests
Heavy-duty tailstock w/ MT5 quill
Quick-change threading & feed gearbox
Hardened and ground bed ways
D1-8 camlock spindle nose
3-jaw chuck
4-way tool post
Full length lead screw & feed rod
Thread dial indicator
Integrated coolant system
