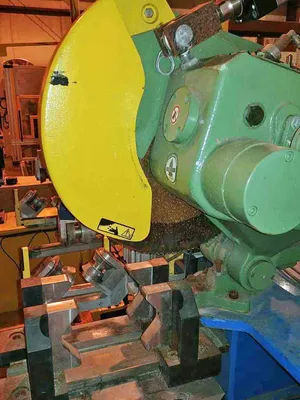

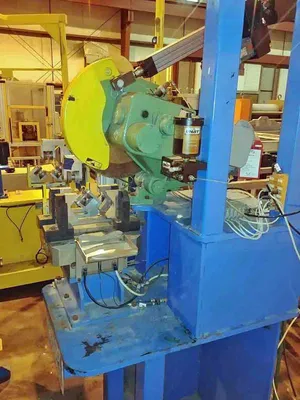

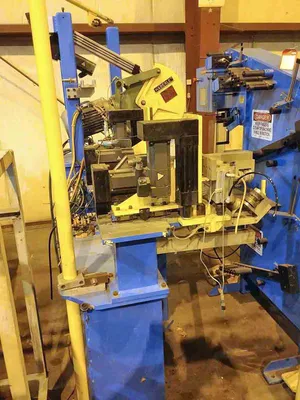

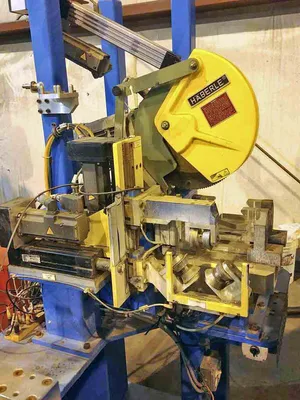

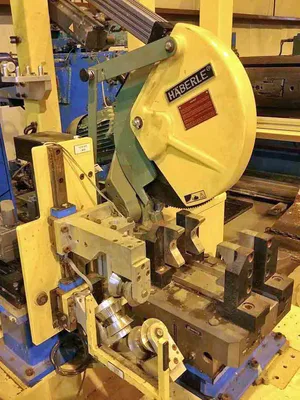

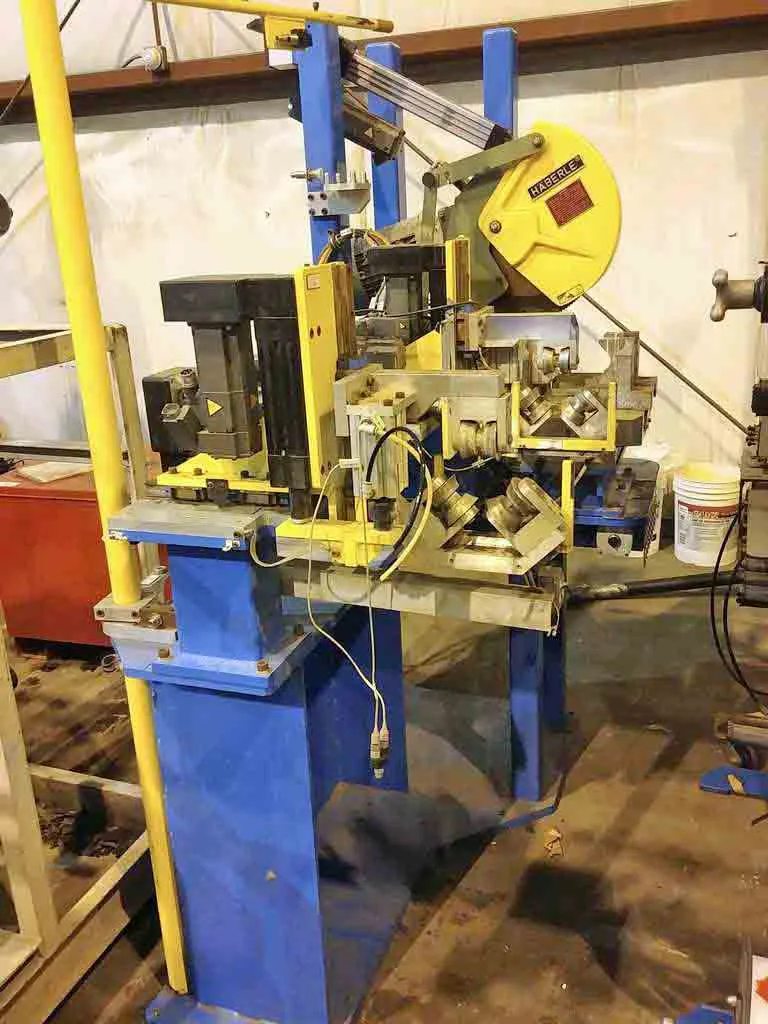

USED 2011 HABERLE H 350-H SERIES D SEMI-AUTOMATIC

YEAR: 2011
Haberle Cold Saw

-Model: H 350-H Series D Semi-Automatic

-Capacity: at 90 Degree Round Tube 4.7"
Round Solid: 2.4"
Square Tube: 4.1"
Rectangle: 6" x 3"
-Capacity: at 45 Degree Round Tube 4.3"
Round Solid: 2"
Square Tube: 3.7"
Rectangle: 4" x 3"
-Maximum Sawblade Dia.: 13.7"

-Production Saw with automatic downfeed.
-Powered Saw Head with quick forward motion, adjustable power stroke
and quick return.
-Pneumatic control system with two air vises.
-Drive Gears: Extremely robust worm and wheel drive with hardened
and ground worm shaft.
-Air Vise: Strong double-grip air vise with adjustable guide rails
and adjustable arm bracket to hold the cut-off piece, for burr-free
finished cuts.
Replaceable vise jaws allow the installation of profiled jaws for
special applications.
-Saw Blade Speed: 27/54 RPM
-Main Motor: 1.3/2.4 KW (1.75/3.22 HP), 850/1700 RPM, 460 V

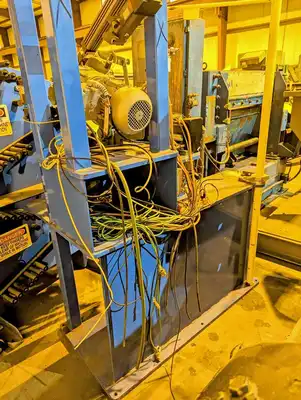

-Saw is mounted on steel base.

-No Drives or Controls Included

-In Storage: Toledo, OH.
