Feeder, Servo, Mecon, 36"

YEAR: 1995

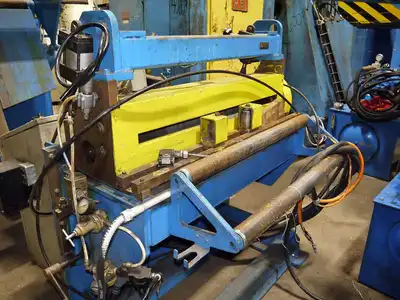

Mecon Precision Servo Feeder

400F-I Series

-36" Wide Capacity

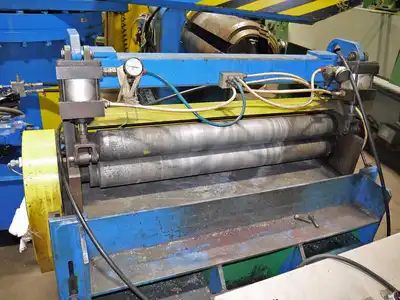

-37" Face x 4" Dia. Rolls
Air Cylinder Loaded
-Thickness Capacity:
12" x 0.255" thick max
30" x 0.160"
36" x 0.135" thick.
-Max Feed Rate: 300fpm
-Entry Edge Guides, Manual Adjustment

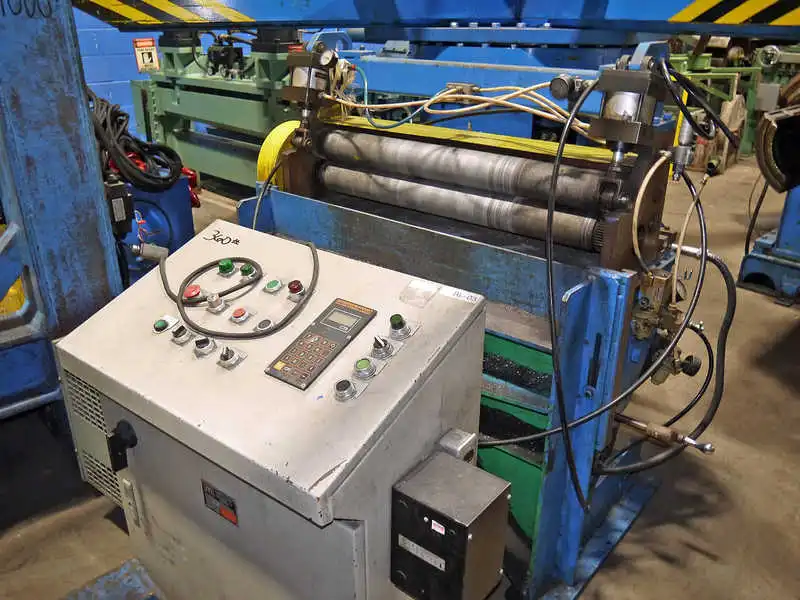

-Operators Control Panel with Indramat Pushbutton Keypad
-Indramet Servo Drive
-40" Passline
-Operating Manual and Drawings Included
-Overall Size: 59" L x 40" W x 55" High

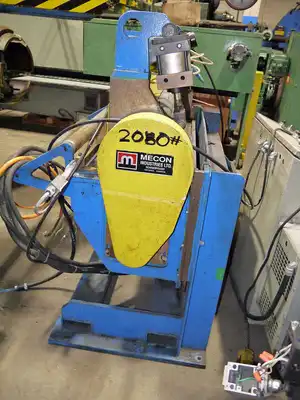

-Approx. Weight: 2,080#
-Note: This Feeder is not meant to pull material directly off an
Uncoiler. It is designed to pull material from a free loop.
-In Storage: Toledo, Ohio

New Controls available from Mecon as listed below.
Feeder must be sent direct to Mecon factory in Canada.

Option #1:

Control system for Mecon feeder 400F
- Supply new panel, motor and cables:
- Estop circuit with auxiliary contacts for integration to external systems.
- Control and Wiring for feed roll, pilot release valve, elevator

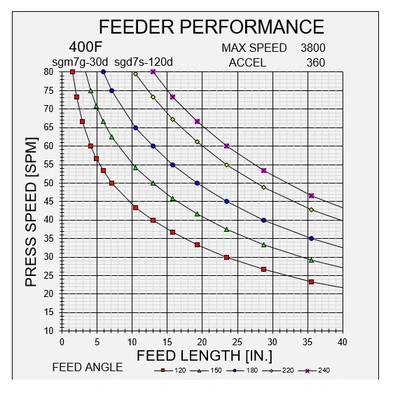

- Servo system -Yaskawa Roll Feed Standard
-SGD7S-120D drive converter

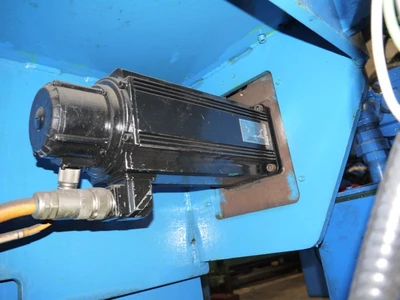

-SGM7G-30D servo motor 3 kw
-15ft of flexible cable bundle, including motor power, encoder, valve control.
-2 button pendant - Jog Forward, Jog Reverse
-Operation instruction manual for Yaskawa feed system
-Electrical drawings "As Installed"
-Delivery: 20 - 24 Weeks

Estimated Price: ....................... $26,784. Extra

Required connections:
Main power: 460v, 3ph, 60 Hz, (to be confirmed with final sizing)
Press cam switch "Feed"
Press cam switch "Pilot"

-Option #2:

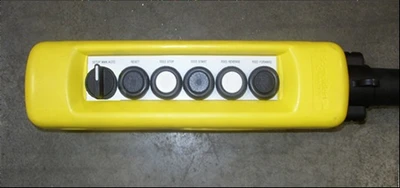

6 button Multifunction Pendant instead of standard 2 button pendant
Includes: Reset, Start, Run light, Setup-Auto-Man selector, Jog Fwd,
Jog Rev, Stop

Estimated Price: ........................ $2,500. Extra
