YJSMT Graphine Mill

SPECIFICATIONS:
X-Axis: 23.62"
Y-Axis: 27.55"
Z-Axis: 12.59"
Max Height Table to Spindle: 22.83"
Spindle Speeds: 12,000 RPM
Spindle Taper: BT 40
Work Table Size: 25.59" x 31.49"
Weight Capacity: 990 lbs.
Fast travel speed, All Axis: 1417 IPM
Cutting feed rate, All Axis: 393 IPM
Machine Footprint: 118.11" x 94.48" x 94.48"
Weight: 15,400 lbs.

Equipped With:

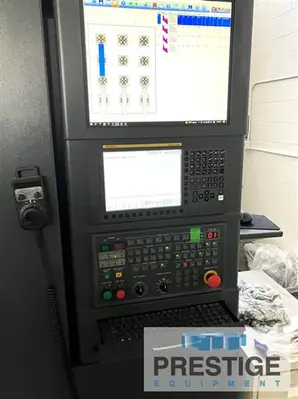

Fanuc 0i + YJSMI CNC Controls

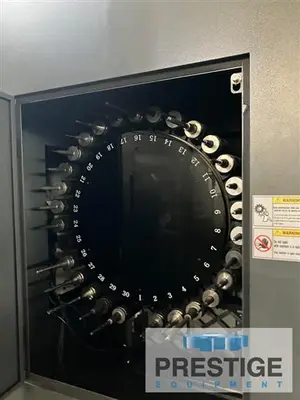

30 Station Automatic Tool Changer

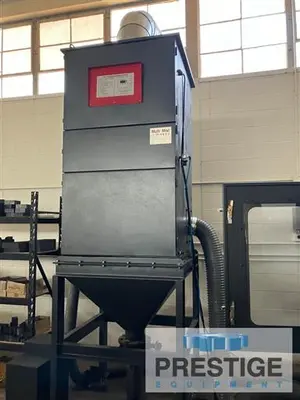

Dust Collection Unit

Features:
Fanuc 0i + YJSMI CNC Controls
30 Station Automatic Tool Changer
Dust Collection Unit
