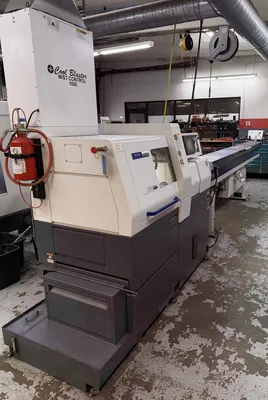

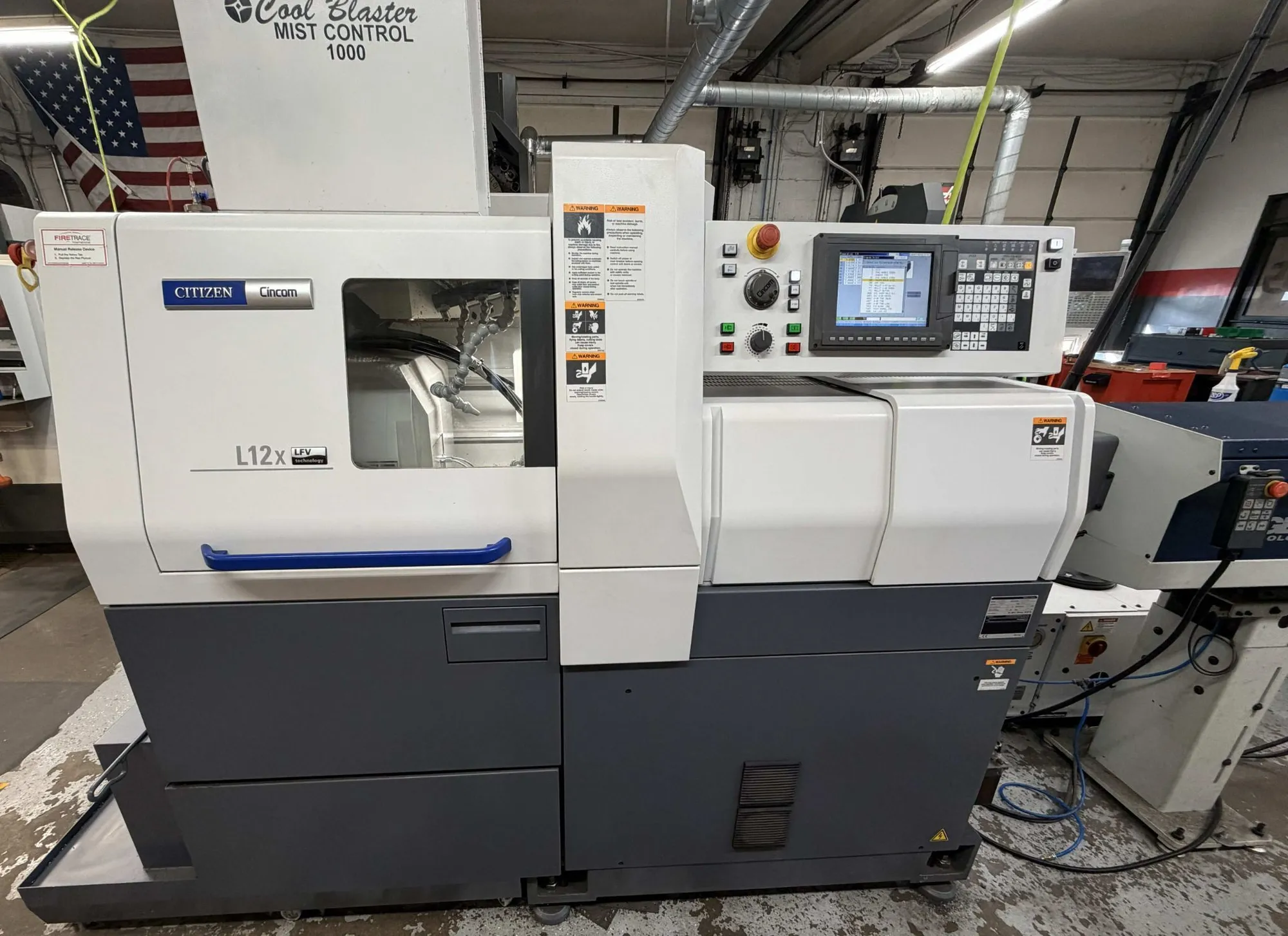

USED 2021 CITIZEN L12X

YOU WILL NOT FIND THIS AT AUCTION - CITIZEN L12X (2M10) WITH LFV-ON - New 2021 - rarely available w/EDGE Minuteman 320 magazine bar loader, Y-AXIS SUB, Fire Trace, High Pressure Coolant, Mist Collector, LOW HOURS, ran oil, misc tooling.
CITIZEN Cincom L12-2M10 - The CINCOM L12 is a state of the art Swiss Turning Center manufactured by CITIZEN MACHINERY CO LTD. It features the ALL axis Simultaneous Cincom System M70 Control (Mitsubishi Meldas 70LPC-VU). Its standard Eight Cutting Axes (X1, Y1, Z1, X2, Y2, Z2, C1, C2) and One bar loader axis (A7) can make easy work of your toughest applications. The user-friendly editing function which utilizes Multi line Multi axes programming, along with superimposed and synchronized control make setting up the most complex jobs easy.

CITIZEN Cincom L12-2M10

I. Including:
1) Simultaneous Axes control
2) AC Servo Axes Control
3) Main Spindle Speed 200 ~ 15,000 rpm (GB Mode) / 12,000 rpm (GBL Mode) 5-digit stepless command
4) Back Spindle Speed 200 ~ 12,000 rpm 5-digit stepless command
5) Live Tool Spindle Speed
Gang Tool Post: 200 ~ 10,000 rpm 5-digit stepless command
Back Tool Post: 200 ~ 9,000 rpm 4-digit stepless command
6) Rotary Tools Drive System
6-Stations on Gang Tool Post (L212U30B + GSE4107)
4-Stations on Back Tool Post (+ 4-stationary) (L212U152B)
7) Main Spindle Collet Chuck Unit (S&M TF16)
8) Back Spindle Collet Chuck Unit (S&M TF16)
9) Work-piece Separator (max part length = 80mm)
10) Cutting Oil Tank with Oil Level Detector (42 Gal Oil capacity)
11) Back Spindle Air Blow Unit
12) Synchronous Type Rotary Guide Bushing Unit for (uses S&M SD125R)
13) Door Interlock with Switches
14) Tool Package: GTF7113 6 Turning (1/2") Tool Holder 1 pc
MSC507 Cross Milling Spindle (ER11) 7 pcs
GSE4107 3-Stations Rotary Tool Driving Device with
0 ~ 90° angle adjustment feature 1 pc
SAU919 Sleeve Adapter on U120B or U152B 8 pcs
BDS707 ¾” Diameter Drill Sleeve (ER11) 6 pcs
VDS506 ¾" Diameter Drill Sleeve (ER11) 2 pcs
15) Centralized Lubrication System w/ Oil Level Detector (0.8 Litter Oil Capacity)
16) Air Pressurized Guide Bushing Unit
17) Leveling Bolts & Pads
18) Hand Tools (spanners, wrenches, etc.)
19) One Complete Set of Manuals
20) Test Chart
21) Parameter List
22) NGB Main Spindle Cap Nut and Stopper (L212U60C)

Standard Specifications of CNC System

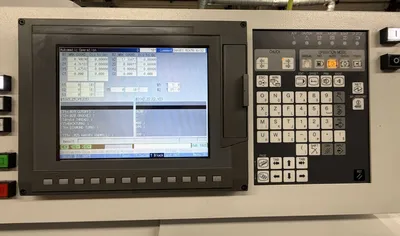

23) 8.4" Color LCD
24) 4-Spindle Speeds Command in the Single Block
29) 8 bit B-code Function
30) Absolute/Incremental Command (Combined Use in Same Block)
31) Automatic Power Off Function
32) Background Edit Function
33) Canned Cycle for Threading
34) Chamfer/Corner Rounding Function
35) Constant Surface Speed Control ( Main & Back)
36) Continuous Threading Cycle
37) Cutting Feed rate: 1 - 8,000 mm/min
38) Cycle Time Check Function
39) Feed Command by inch/rev or inch/min (switchable by G code)
40) Help Function
41) I/O Interface for RS232C / Compact Flash Card / USB
42) Inch/Metric Conversion
43) Machine Status Memory/Display
44) Manual Feed by Pulse Generator for all Axes
45) Minimum Increment (0.00001 inch)
46) Multi-axis & Multi-line Free Control System
47) Multiple Repetitive Cycle
48) Number of Tool Offset: 40 pairs
49) Output of Miscellaneous Function during Axis Movement
50) Part Program Work Area: Program Storage Capacity 160m (64KB) tape length
51) Preparation Function
52) Program Check Function (run program forward & reverse by pulse generator)
53) Program Editing Support Function (Calculator , M&G codes list-up, Cutting condition)
54) Radius Designation on Arc
55) Rapid Feed rate: 35m/min (Y2 Axis: 10m/min)
56) Reference Point Return (Absolute Position Detector)

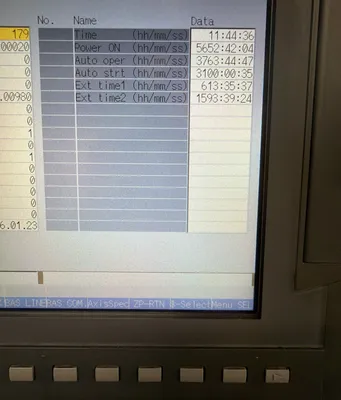

57) Run Hour Display
58) Self-Diagnosis Function
59) Single Point Threading
60) Spindle Speed Fluctuation Detection
61) Superimposed & Simultaneous Control System
62) Tape Code (ISO Automatic Recognition)
63) Three Dimensional Interference Check Function
64) Cut Off Tool Breakage Detector (Spindle Speed Check)
65) Tool Nose Radius Compensation
66) Main/Back Spindle Synchronization
67) C-Axis Control (Main)
68) C-Axis Control (Back)
69) Canned Cycles for Drilling (G80/83/85/89)
70) User Macro (G65-67)
71) Milling Interpolation
72) Polygon Turning Function
73) Hobbing Function
74) High Speed Synchronous Tapping
75) Synchronous Tapping Phasing Function
76) Differential Speed Tap Function option
77) Tool Life Management I
78) Tool Life Management II
79) Sub Inch Designation
80) Helical Interpolation
81) Slant Helical Interpolation
82) Circular Thread Cutting
83) Work-piece Counter Display
84) Variable Lead Thread Cutting
85) Geometric Command Function
86) 2-system simultaneous thread 1,2
87) Sub-Program Running in External Memory
88) Network I/O Function

LOW FREQUENCY VIBRATION-ON
Cut-Off Breakage Detector

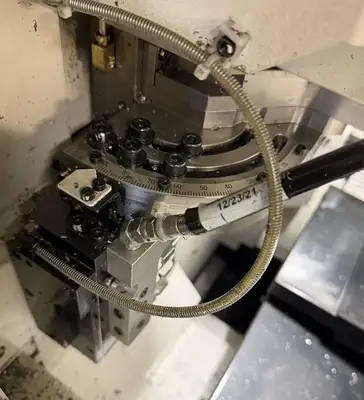

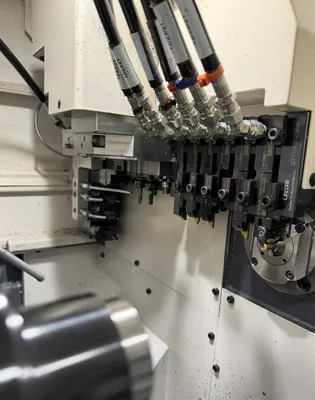

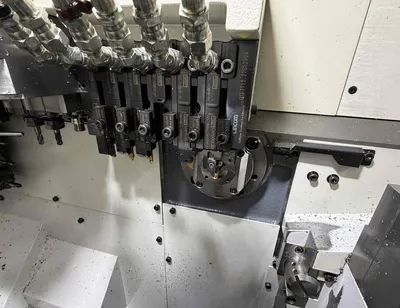

GSE-4307 3-Front / 3-Back live tool spindle (ER-11 end face)

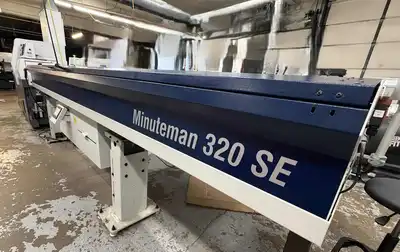

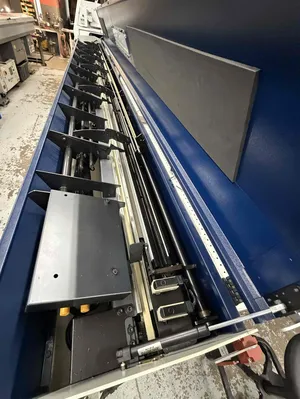

EDGE Minuteman 320 magazine bar loader for 12' bars w/ 2 channel sets and axial shift
Chucker convertible - Chucker Kit

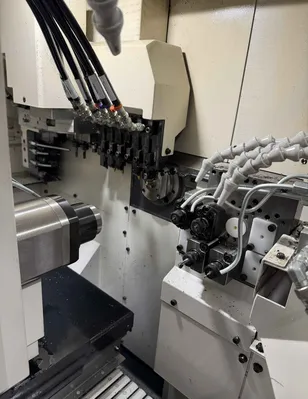

Y-AXIS SUB - back live tools
Fire Trace fire suppression system
High Pressure Coolant - CB510H 10 line with heat exchange - 2000 PSI

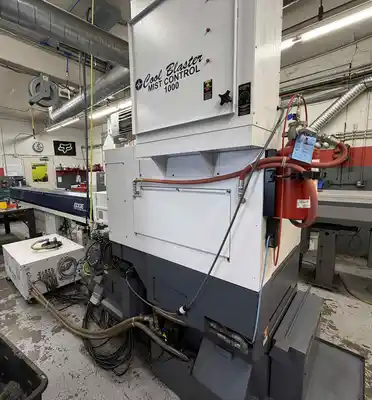

Cool Blaster Mist Control 1000 mist collector
Manuals, Tool kit, Keys
