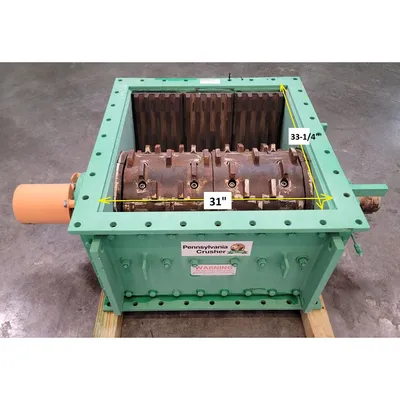

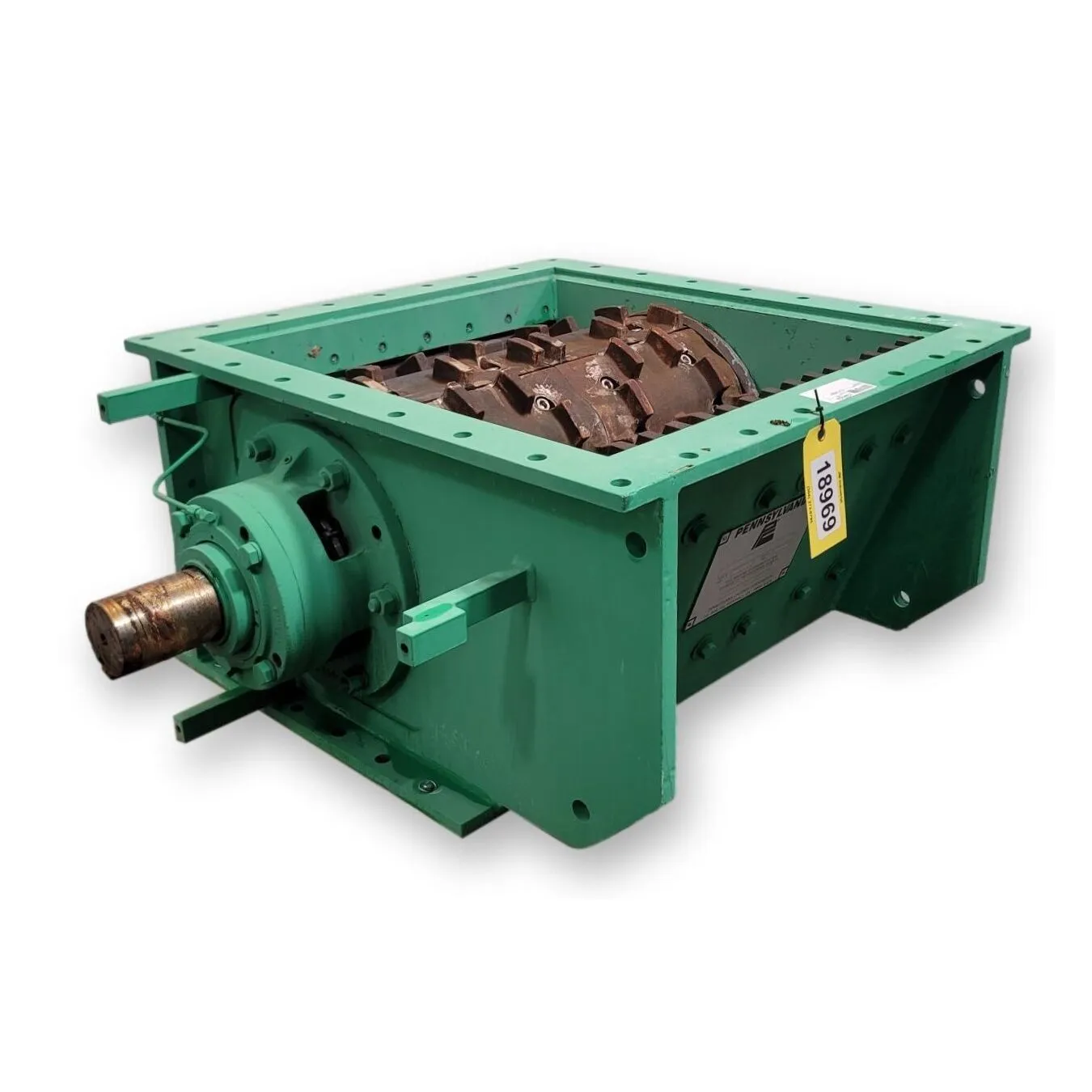

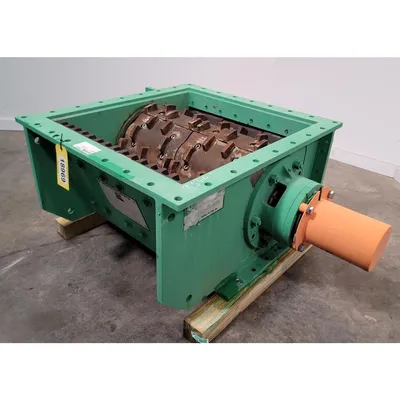

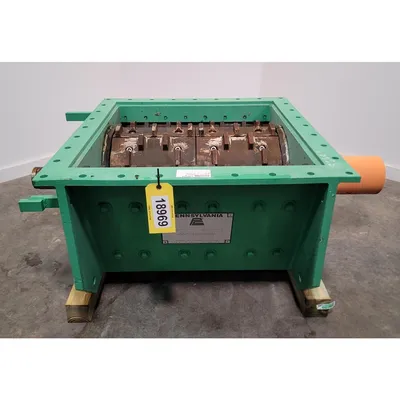

NEW PENNSYLVANIA CRUSHER CGA 33"-30"

Serial # 70846A04
Designed to reduce clinker material to 1 1/4" to 1 1/2"
Frame is heavy-duty welded construction using 3/4" plate steel with bolted back plate
It is equipped with front and rear internal wear liners

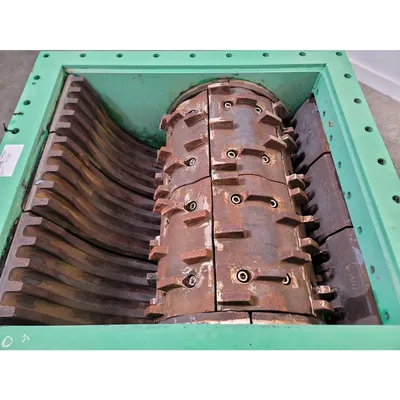

Roll Shell is made of hardened steel radial segments (replaceable and reversible to extend wear life)
Typically powered by a 10HP drive (not included)
Nominal Operating Speed: 16RPM
Product inlet throat is 30" wide and 33" long
Line height of the frame is 21.5"
Overall dimensions: 43x63x25
Weight = 3,470 LBS

FOB: Millwood, WV 25262

Item: 18969      Model :   CGA 33"-30"
 MFG: Pennsylvania Crusher
