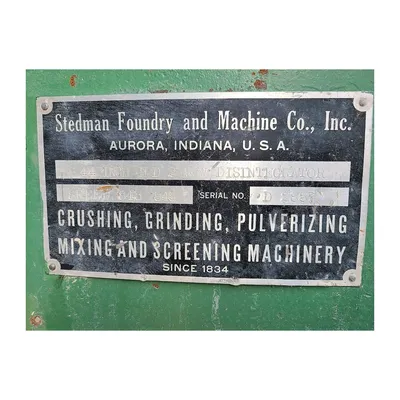

Serial Number: D 2857

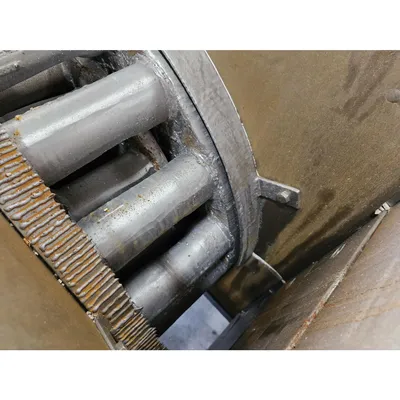

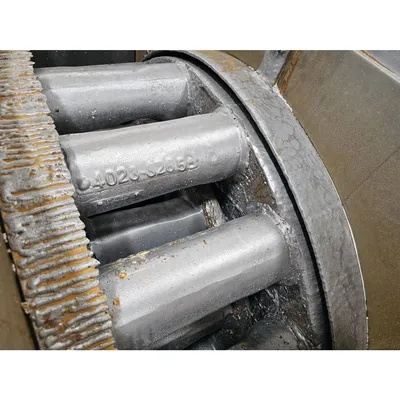

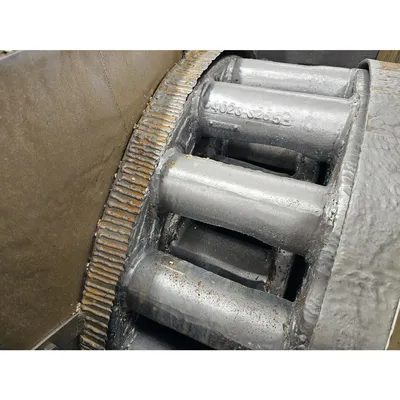

Material is gravity fed into the center area of the counter-rotating cages thru an 8"Ø flanged chute

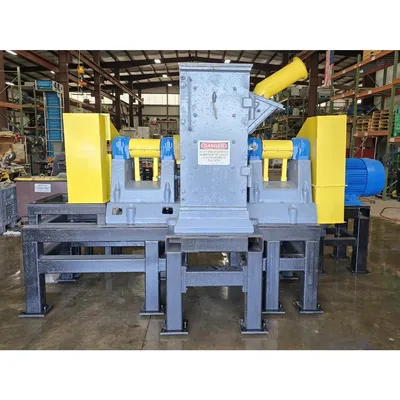

Mill housing constructed of heavy plate steel with hinged side doors and internal wear plating

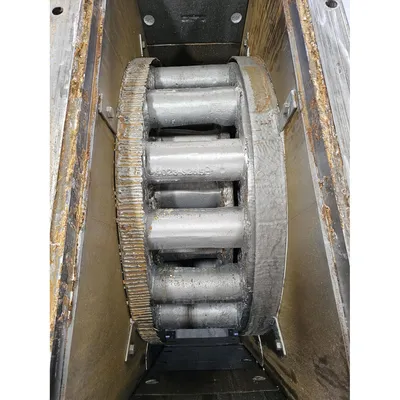

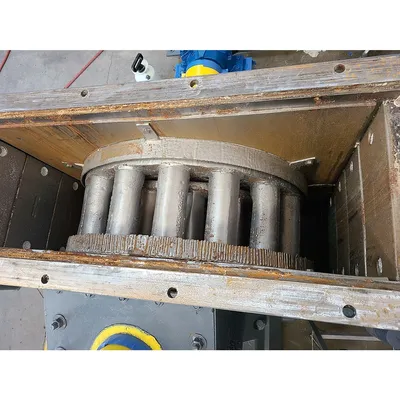

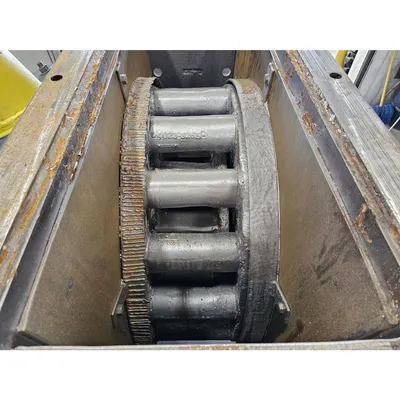

Area of the milling/crushing chamber: 17" X 55"
Cantilevered drive shafts for the cages are twin pillow block supported with packing gland seals on housing
Working speed of the cages is 845RPM (machine is reversible)
Unitary base of the mill is cast iron construction

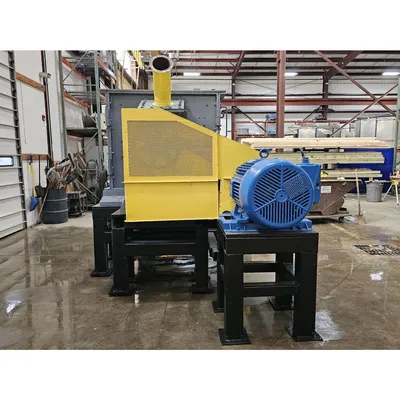

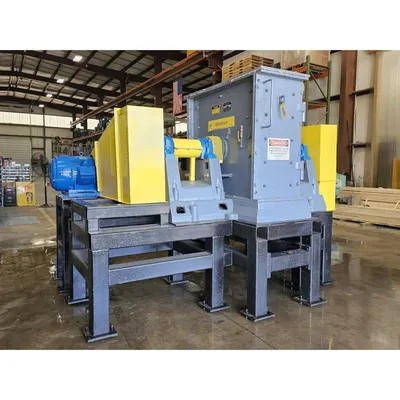

Elevating base assembly constructed from welded 6" square tube with machined mounting surfaces (36.75" high)

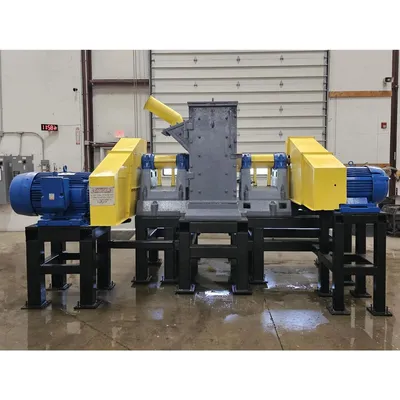

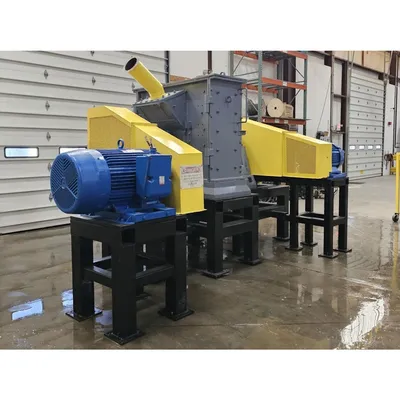

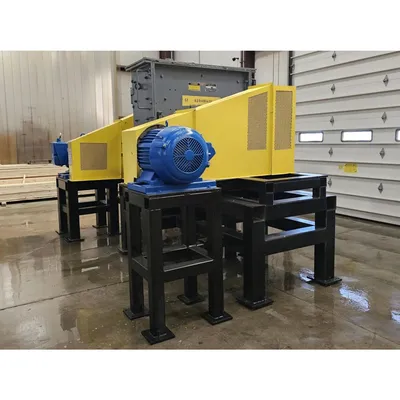

100HP (outside cage) and 75HP (inside cage) V-belt reduction drives

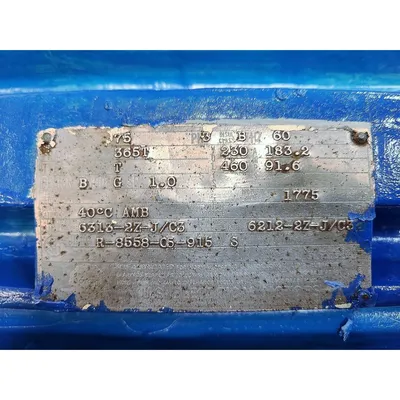

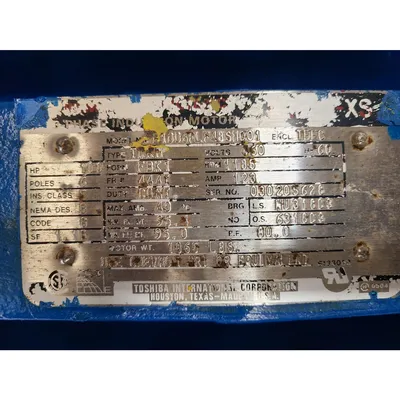

Service Power (X2): 460V, 60Hz, 3ph, 123 Amps (100HP) and 91.6 Amps (75HP)
On File: Operation/Maintenance Manual & Parts Drawings (exploded isometric & details)
Freely hand rotates. The mill will ship in (10) pieces, standard flatbed. Assembling required. The total weight of all pieces = 21,506 LBS.
Previous application details:
• Crushing: vinyl floor tile
• Input size: 1"
• Output size: minus 5/8"
• Capacity: 24-26 TPH
FOB: Millwood, WV 25262

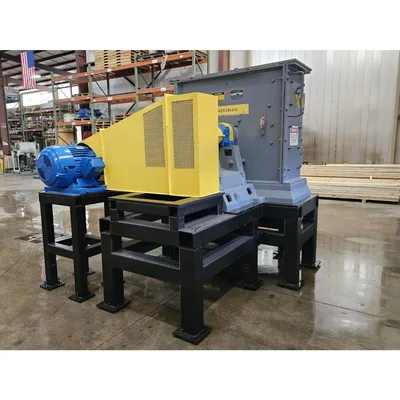

Item: 19478 Model : A44

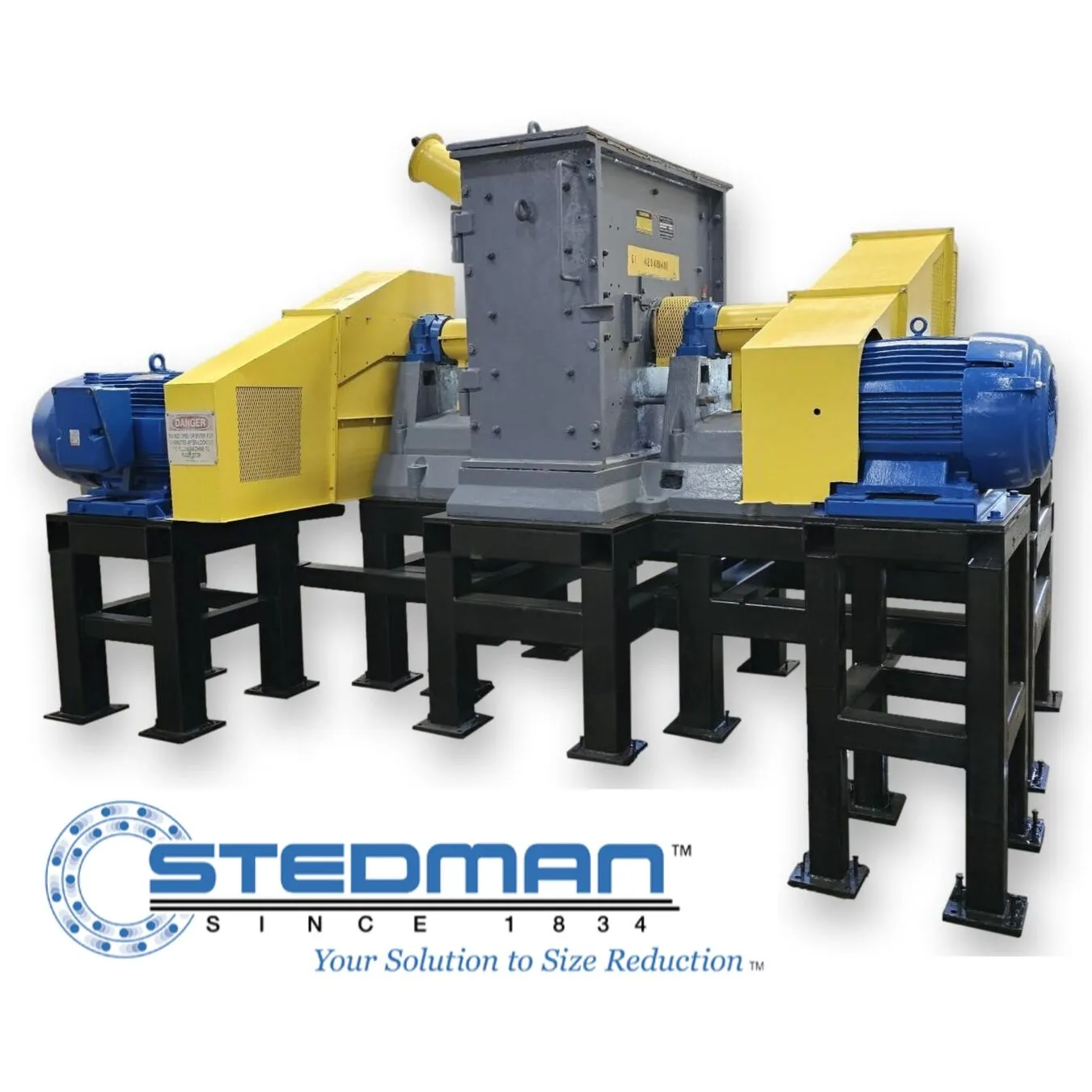

MFG: Stedman Foundry And Machine Co.
