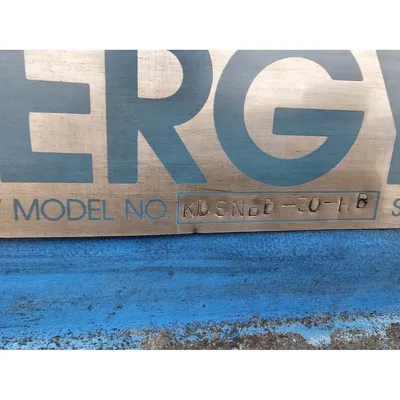

Model KDSNBD-30-HD.

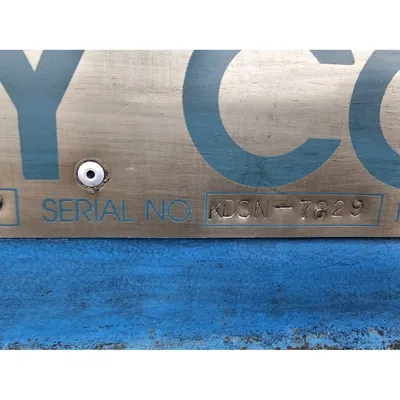

Serial No: KDSN-7829.

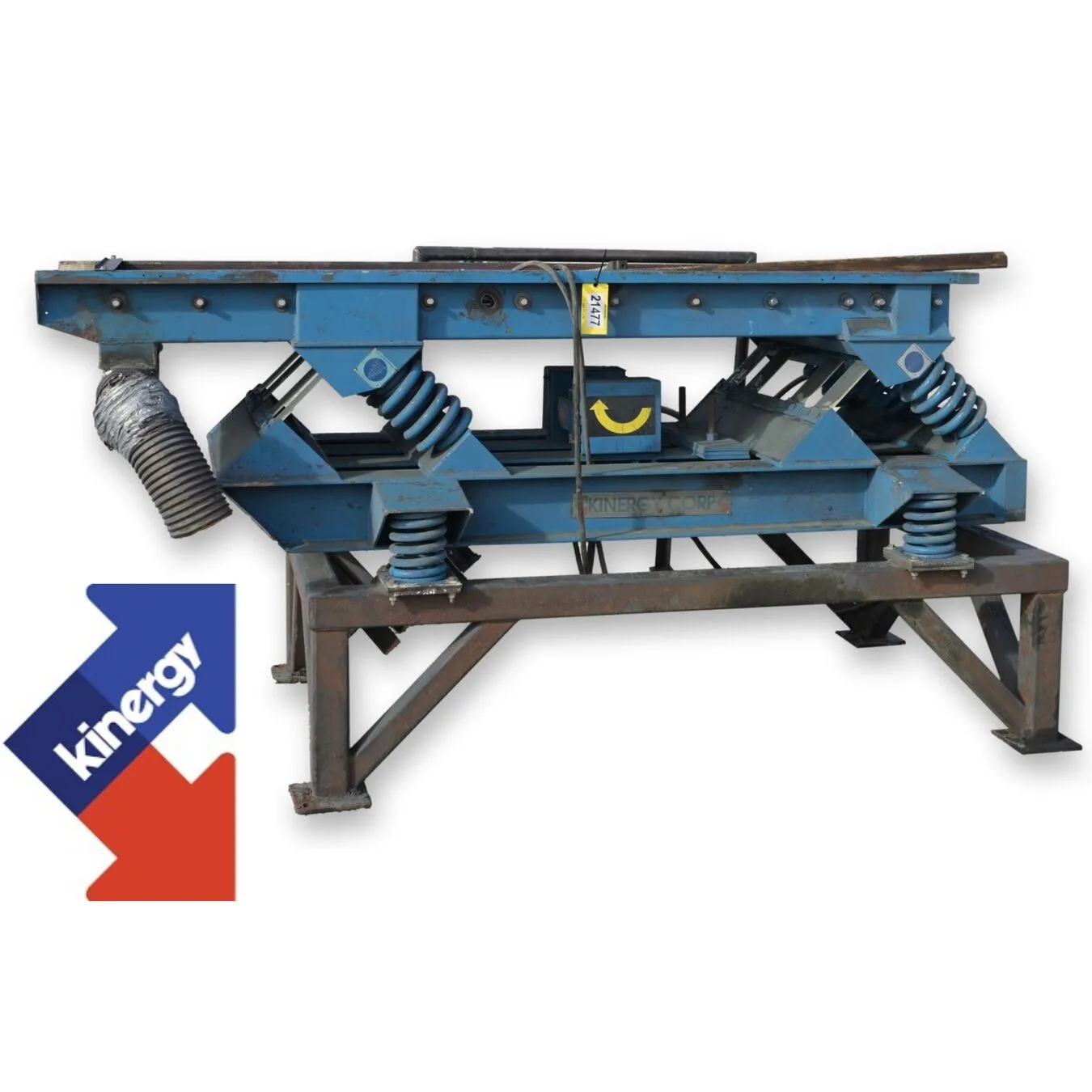

Open top screener/sifter constructed of carbon steel, 6" side walls and a 6"Ø side discharge.
Mounted on a 24" elevated stand with a loading height of approximately 58".
Installed Screen: 7/16"Ø perforated steel

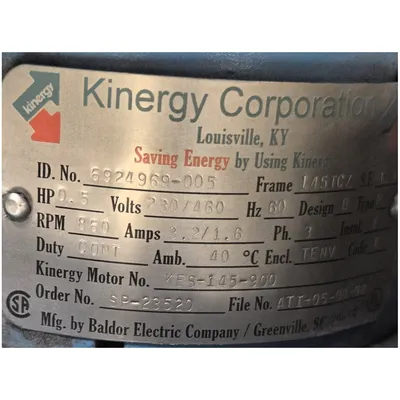

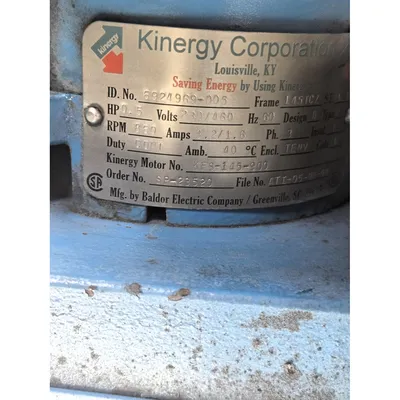

1/2HP vibro-motion drive (230/460V, 60Hz, 3ph, 860 RPM)
Screener can be installed horizontal or on a slight decline.
Overall dimensions: 122" L x 59" W x 60" H.
Weight = 4,095 LBS
FOB: Millwood, WV 25262
Item: 21477 Model : KDSNBD-30-HD

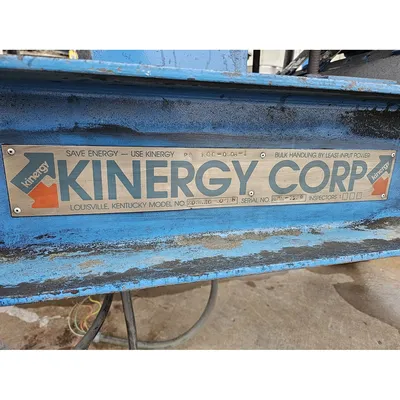

MFG: Kinergy Corp.
Width (inches): 30
# Of Decks: 1
