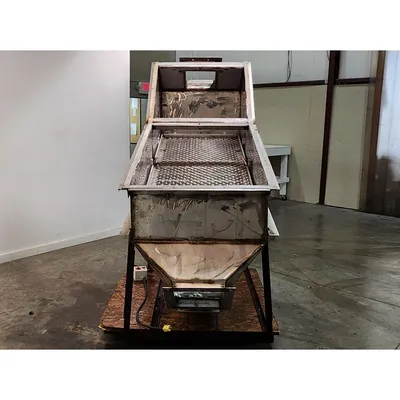

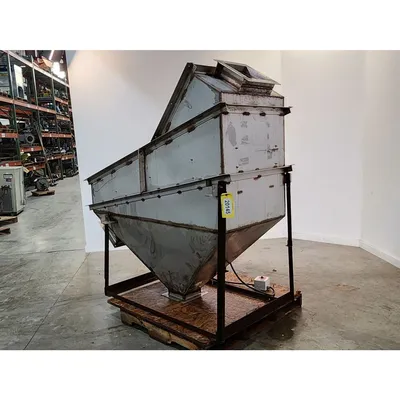

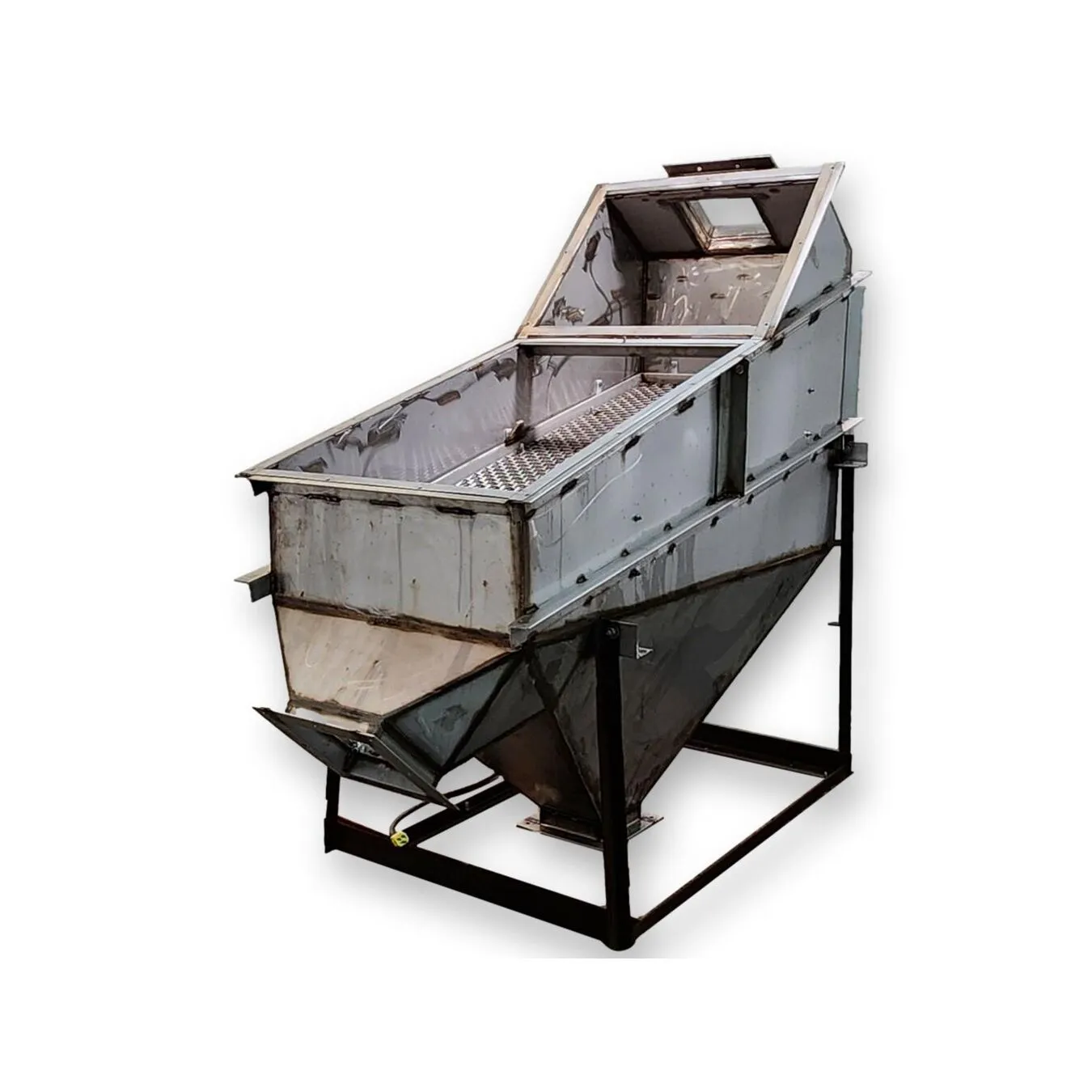

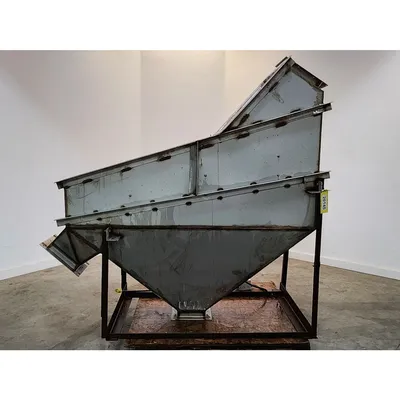

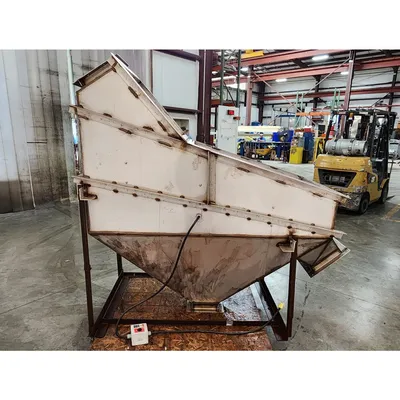

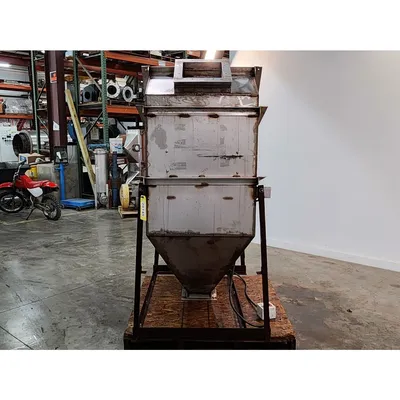

Stainless steel construction with carbon steel base frame.

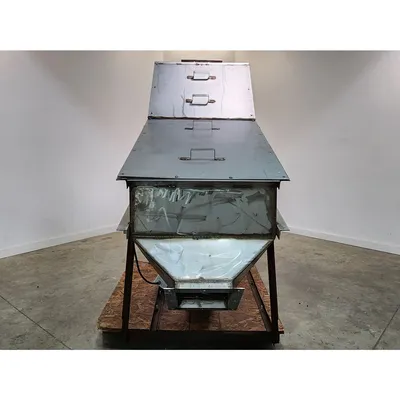

Covered housing is 304 stainless steel with a 0.125" wall thickness.

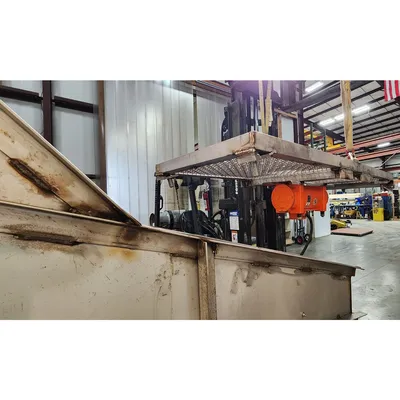

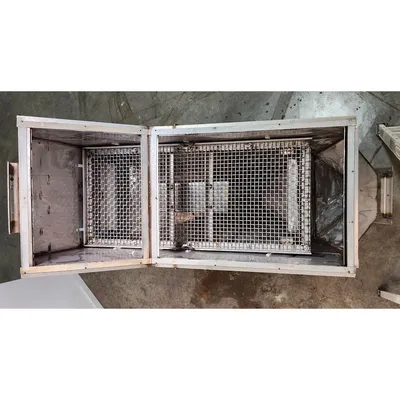

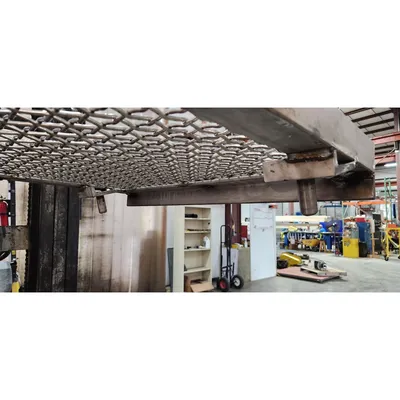

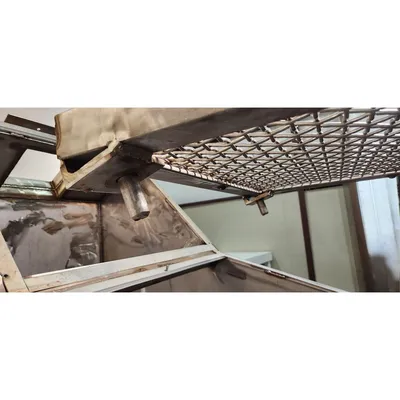

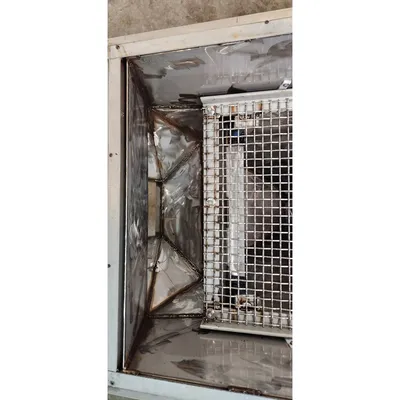

Screen deck is a 1" mesh stainless steel screen, 27"W X 56"L on a fixed 18° slope.
Product inlet/outlets are 10" flanged.

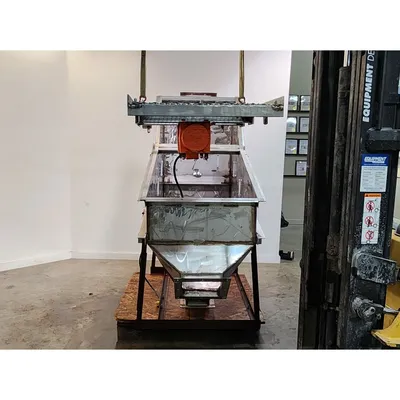

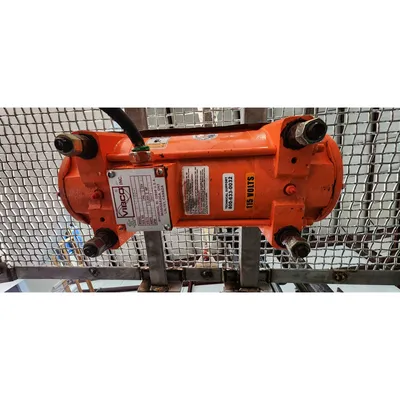

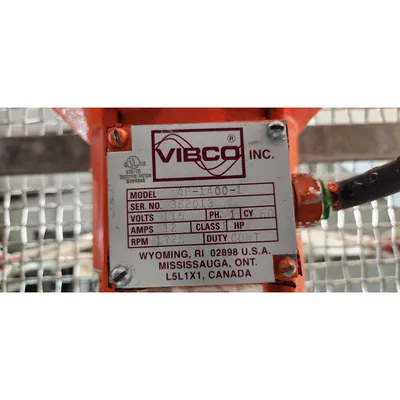

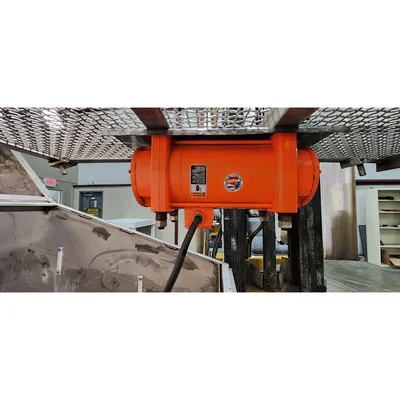

Agitation provided by a 1HP electric vibrator (400-1100LBS of force).

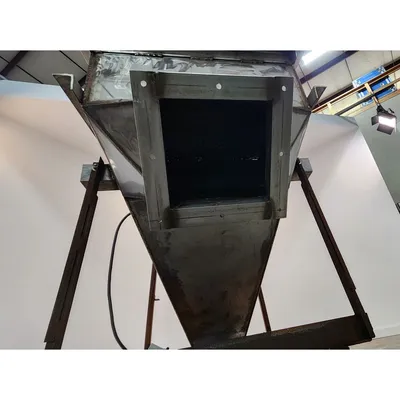

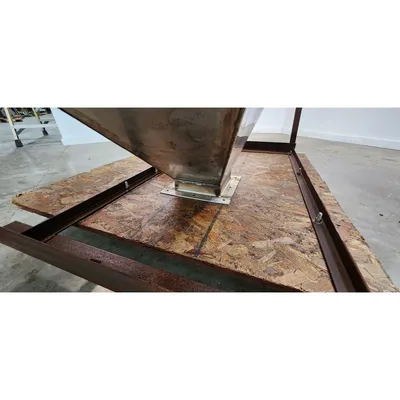

Base of unit is 38"W X 57"L, fines discharge is flush to base elevation.

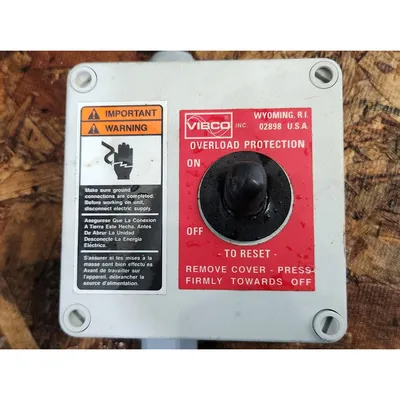

Power Service: 110V, single phase AC
Overall dimensions: 80x48x81"
Weight = 940 LBS.
Unit is designed to scalp 1"+ bulk product at a rate of 30 ton an hour.
FOB: Millwood, WV 25262
Item: 20145
Width (inches): 27
# Of Decks: 1
