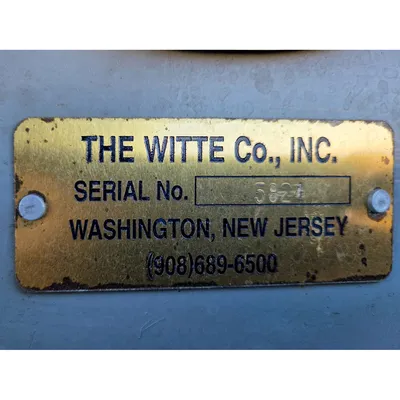

Serial No: 5824
Capacity: up to 750 LB/HR
Vibrating deck is 10" wide X 69" long, 2.5" side wall.
Screen decks are quick top removal with C-clamp hold-downs, 2.5" sidewall.
Fines Screen: Ø3/32" perforations X 30"L (quantity of two)
Pellet Screen: Ø1/4" perforations X 23"L (quantity of two)
Product Inlet: 8" X 6" sleeve, 40" above base
Discharge outlets are 4".
Base Area: 24.5" X 54"

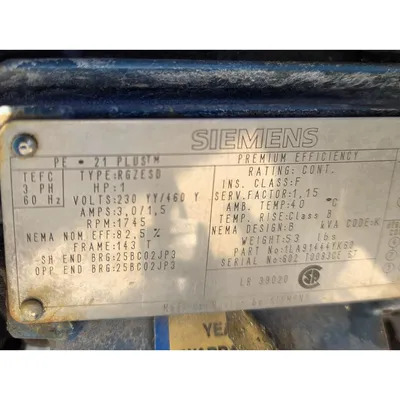

1.0HP linear motion vibrating V-belt drive (230/460V, 60Hz, 3ph)
FOB: Millwood, WV 25262
Item: 21372 Model : 210-D
MFG: Witte
Width (inches): 10
# Of Decks: 2
