USED SELCO PRODUCTS-HARRIS HL-50-HD

Previously used for post-use corrugated cardboard (OCC)

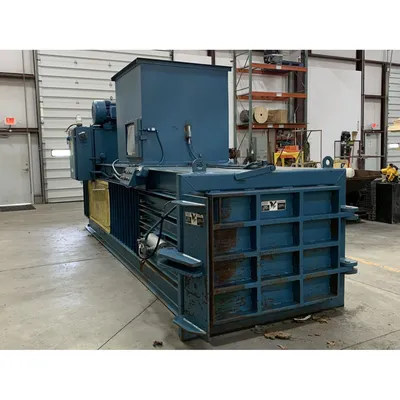

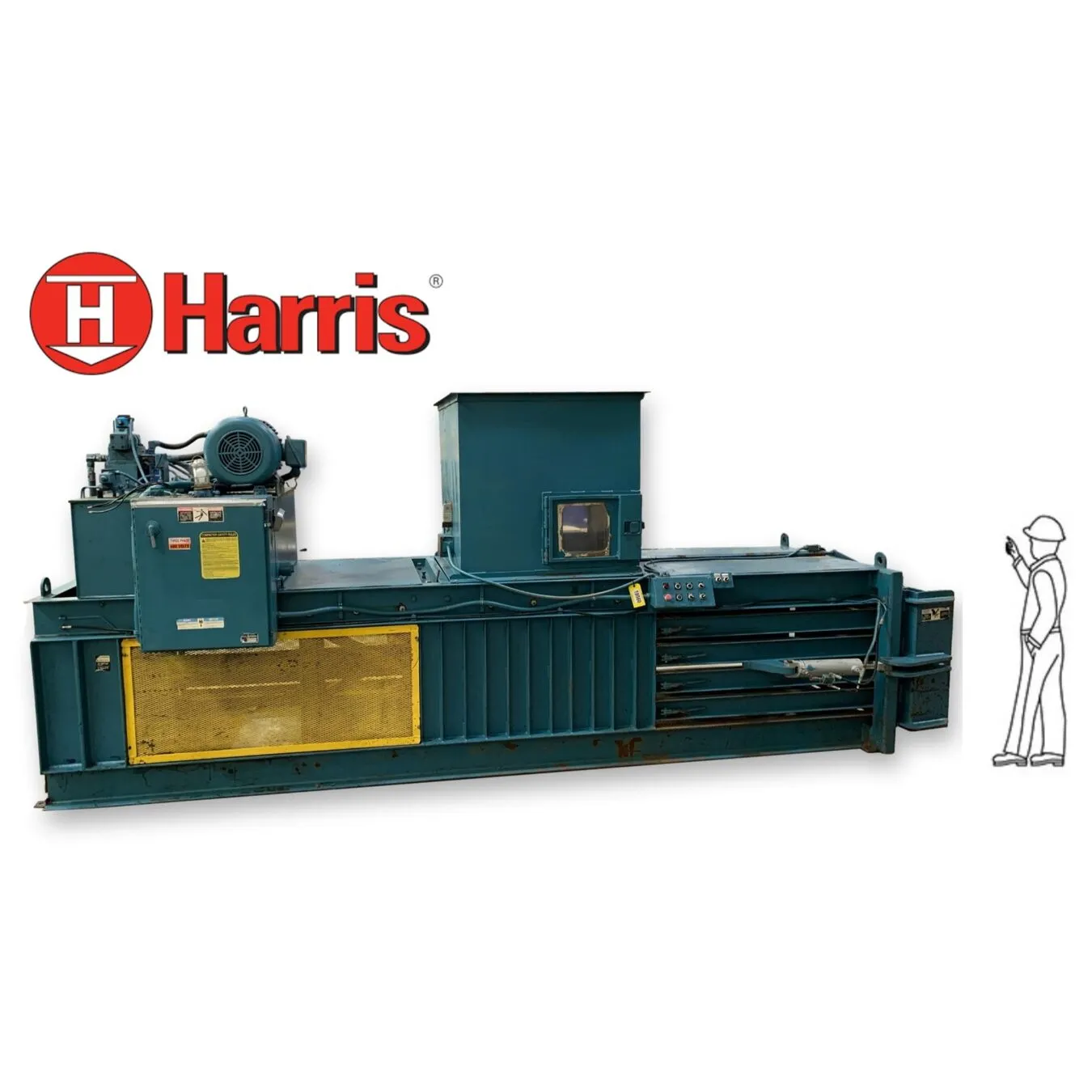

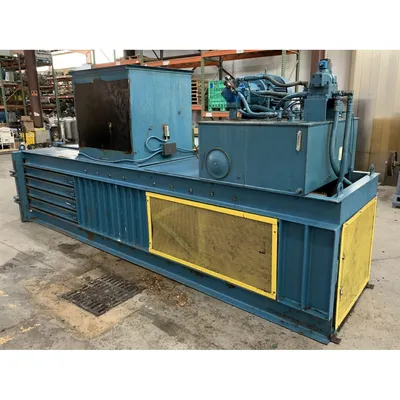

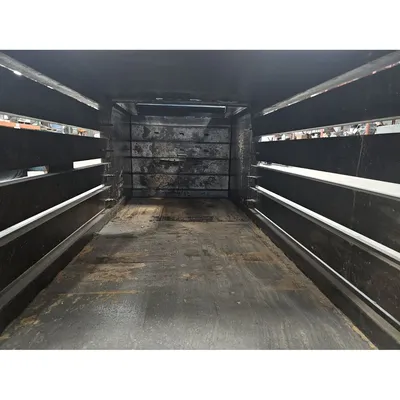

Baler: 40HP Selco Harris Horizontal Single Ram Closed End Baler - Model HL-50-HD
Output Bale Size: 48"W X 40"H X 72"L
Bale Volume: 72 CU/FT

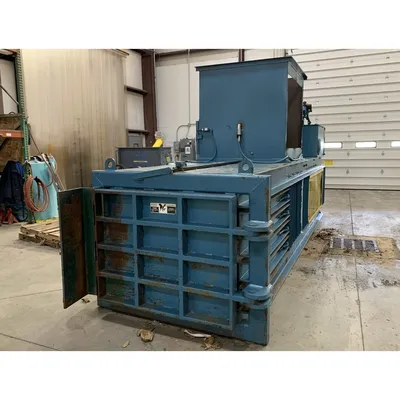

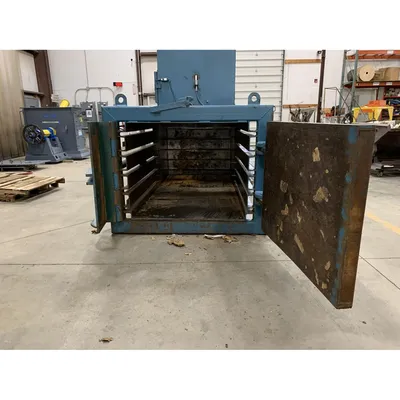

Hydraulic lock on bale exit end door

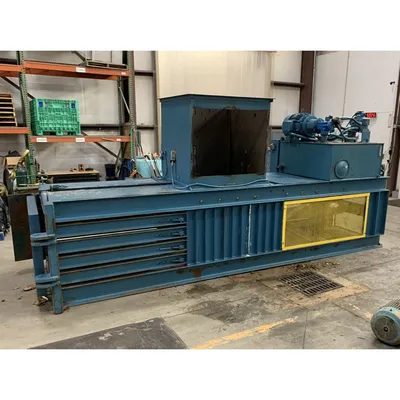

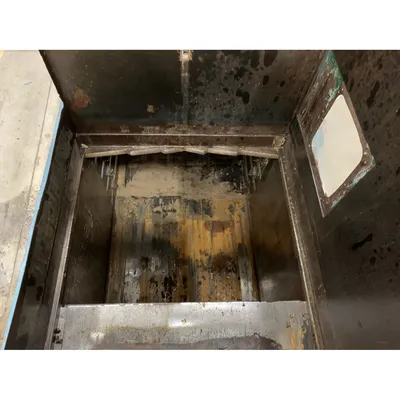

Infeed Hopper: 50" X 46" X 50"H flanged top & bottom with photo eye and side door (104" from base elevation)

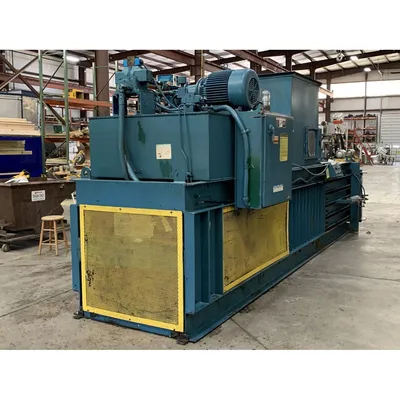

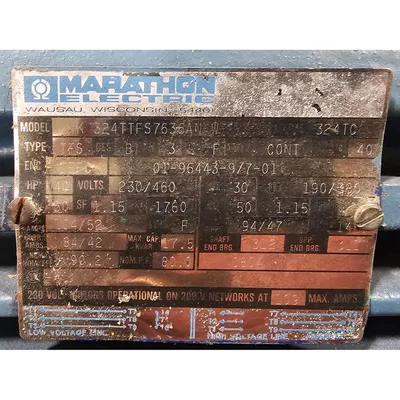

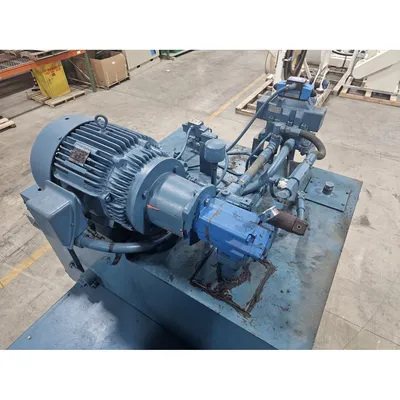

Hydraulic Pump: 1-52GPM @ 800PSI (40HP)
Ram Face Pressure: 68PSI
Cycle Time: 18.5 seconds

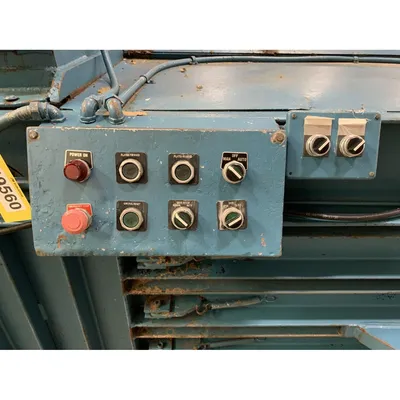

Integrated system controls, requires 460VAC, 60Hz, 3 phase service
System Electrical Schematic and Service Manual for Baler on file
Baler weight = 17,280 LBS
- Transfer Belt Conveyor (shredded OCC): 7.5HP Incline Belt Conveyor
40" wide heavy-duty neoprene belt (sprocket / chain)
Nylon belt glides, 33" high sidewalls
Field welding on conveyor support stand required at installation

FOB: Millwood, WV 25262

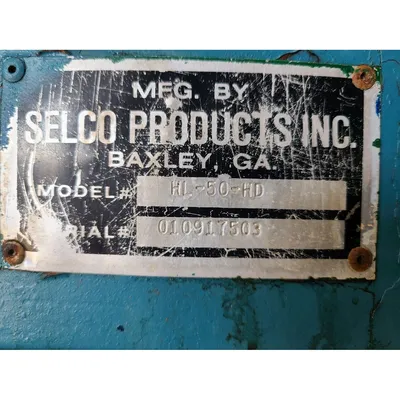

Item: 19560      Model :   HL-50-HD
 MFG: Selco Products-Harris
