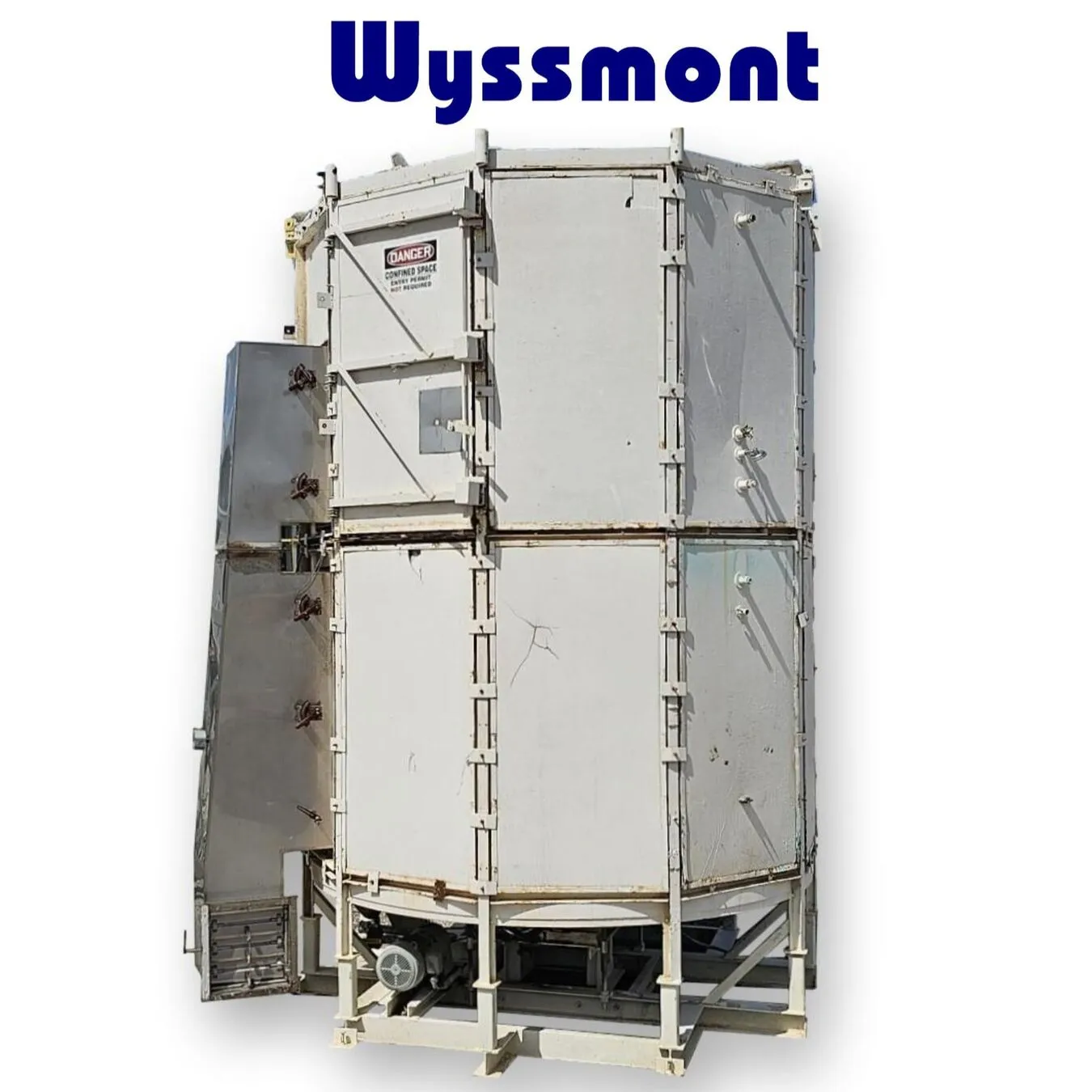

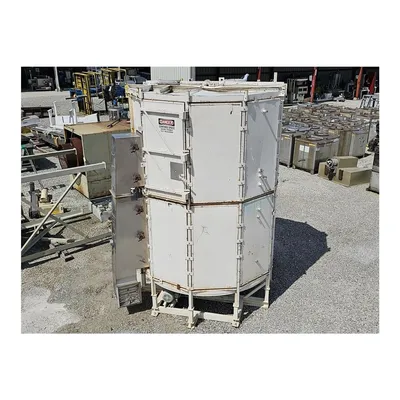

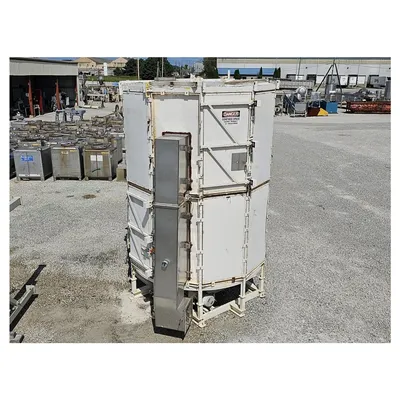

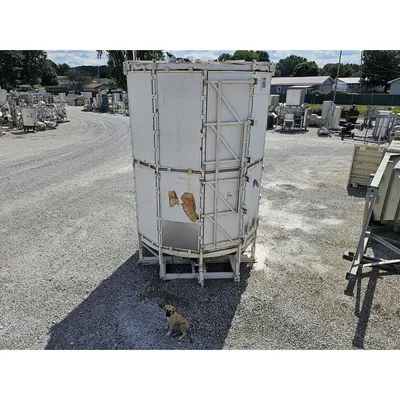

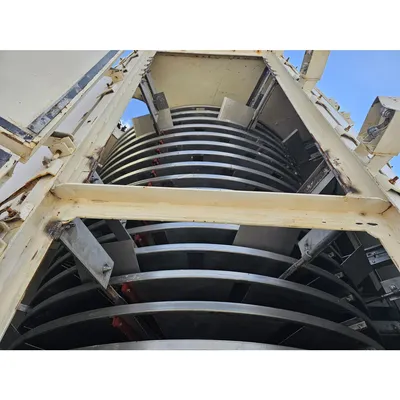

USED WYSSMONT N-28

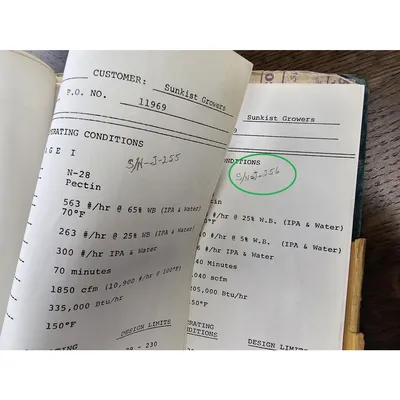

Serial No: J-256
Product contact materials are 304 stainless steel.

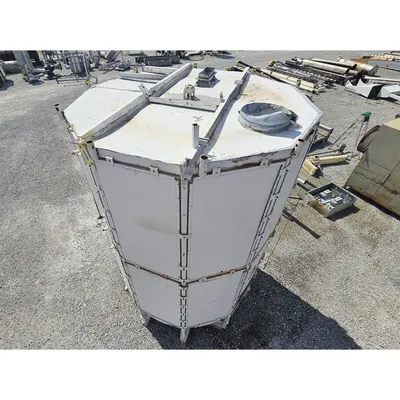

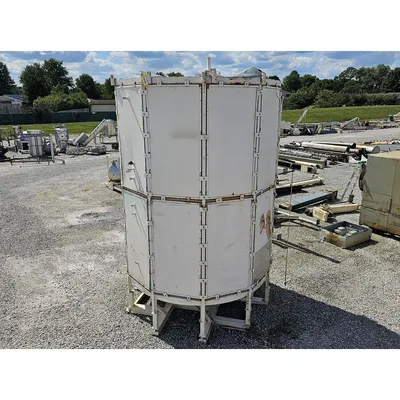

Structural steel support frame with 2" thick insulated panels.
Base area is a ten-sided shape measuring 9'-6" across corners and a 13'-10" roof height.

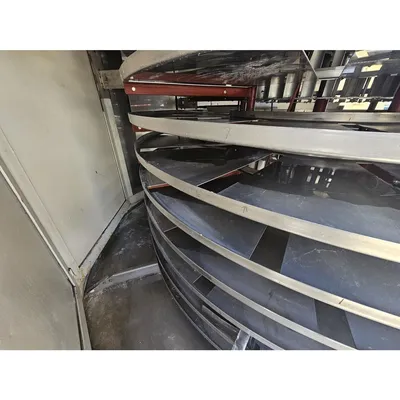

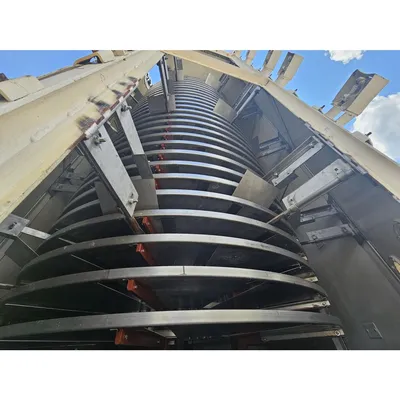

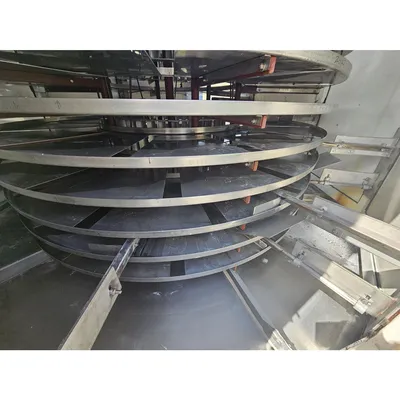

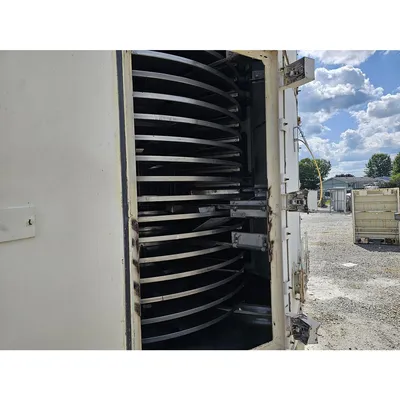

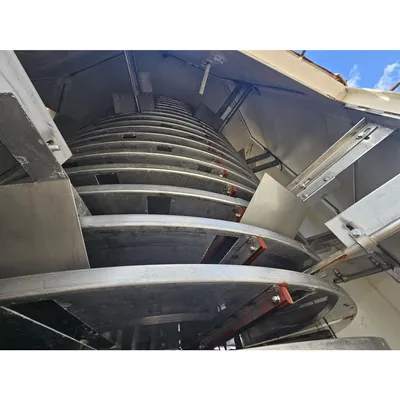

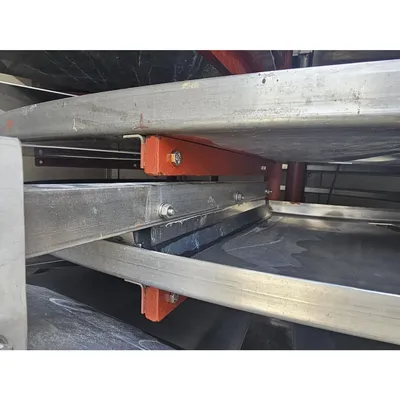

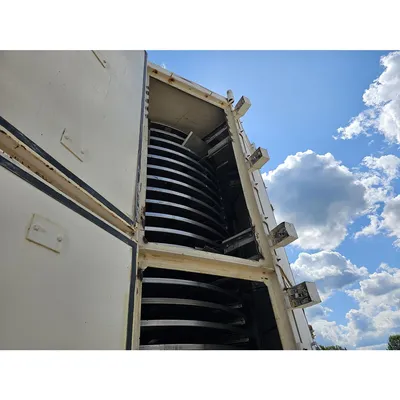

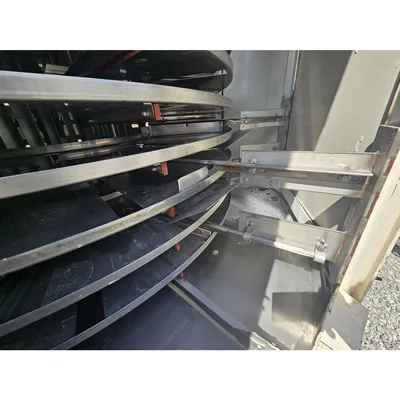

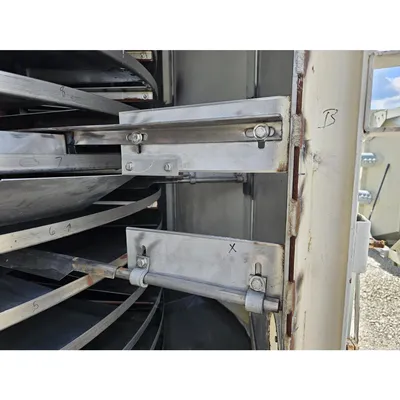

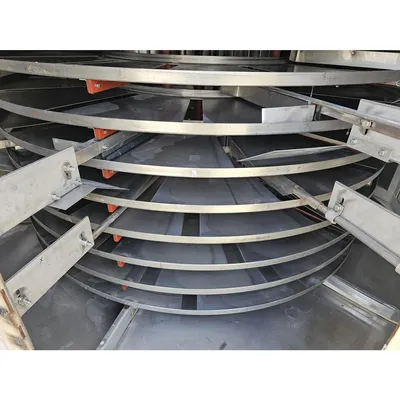

Dryer Trays: quantity of 28, diameter of 78", stacked at 4-5/8" spaces, CCW rotation

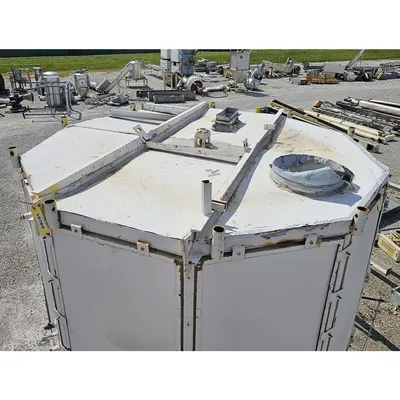

Product Inlet (roof): 5" X 15" flange @ 14'-2" elev.
Product Discharge: 5.5" X 23" flange with pneumatic conveying adapter (2" cam-lock)
Drying Air Outlet (roof): 18"Ø opening @ 14'-2" elev.

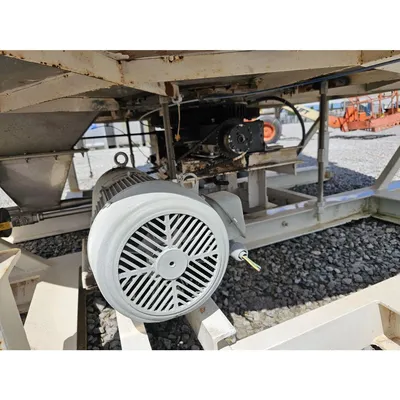

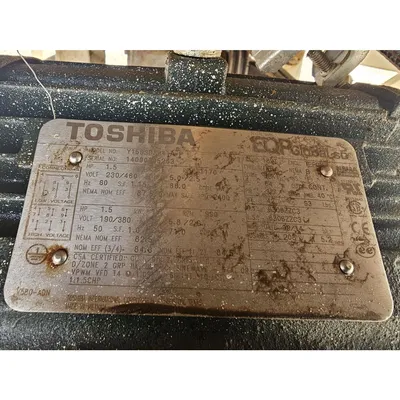

Turbo Fan Drive: 1.5HP (230/460V, 60Hz, 3ph)

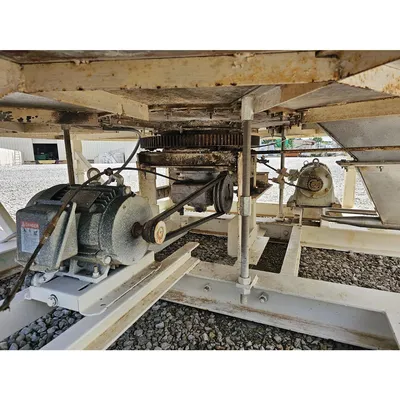

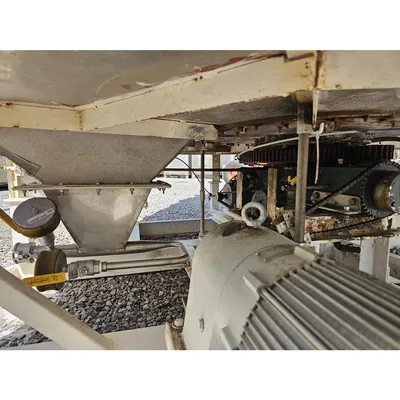

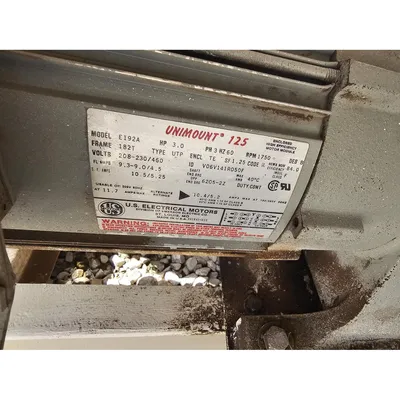

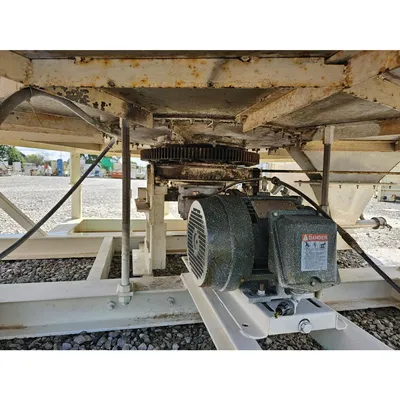

Tray Drive: 3HP (230/460V, 60Hz, 3ph)
Includes stainless steel air inlet header with dampers
Dryer Weight: approximately 14,000LBS

FOB: Millwood, WV 25262

Item: 19780      Model :   N-28
 MFG: Wyssmont
