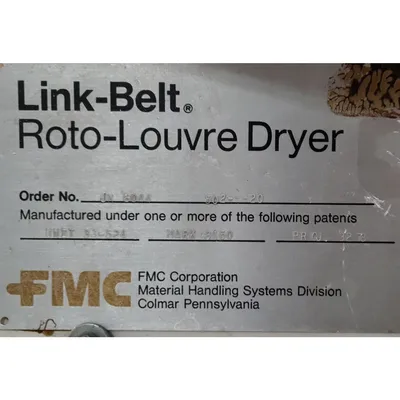

USED FMC CORP 502-20
Overview
Description
Serial Number: JK 6044
For accurate drying/cooling control and gentle handing of bulk materials.

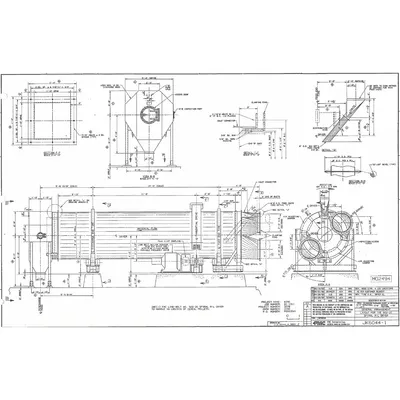

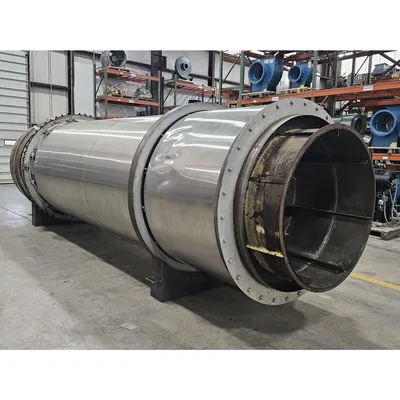

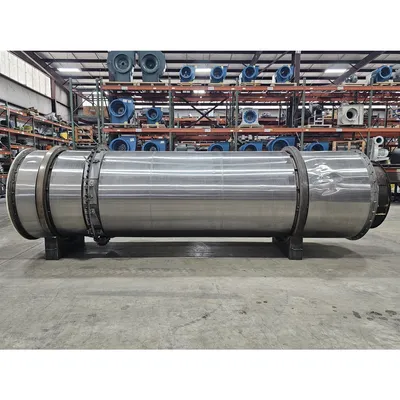

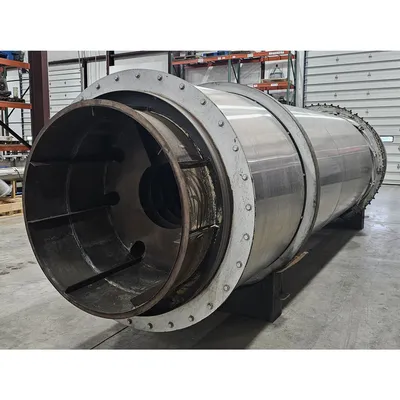

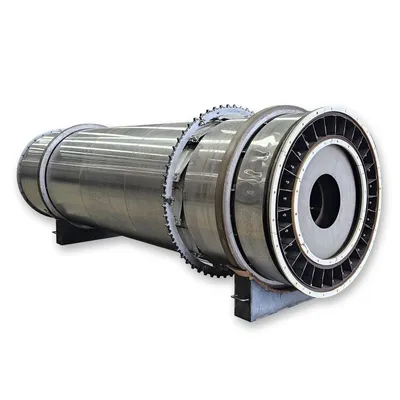

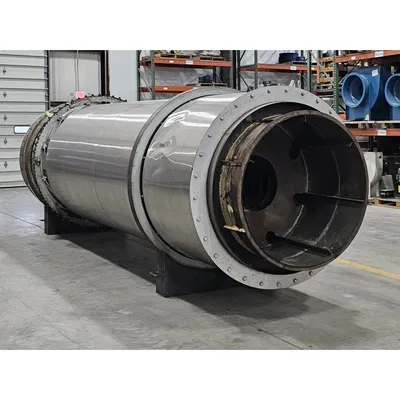

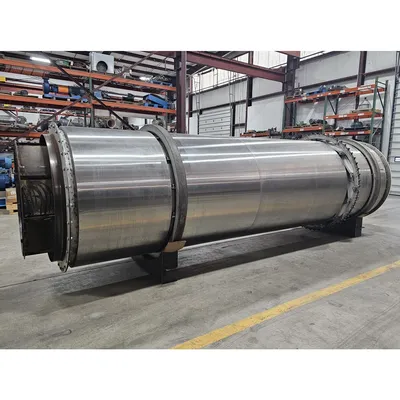

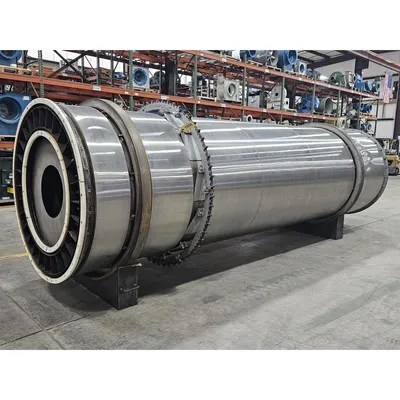

Mild steel dryer shell measuring 5'-2" O.D. X 19'-8" long.

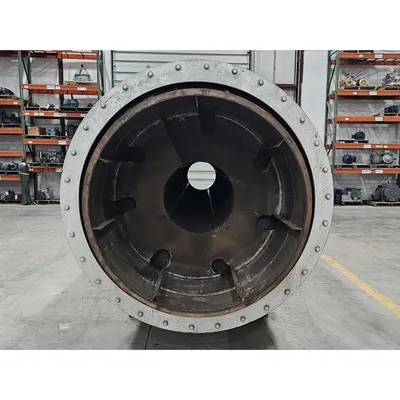

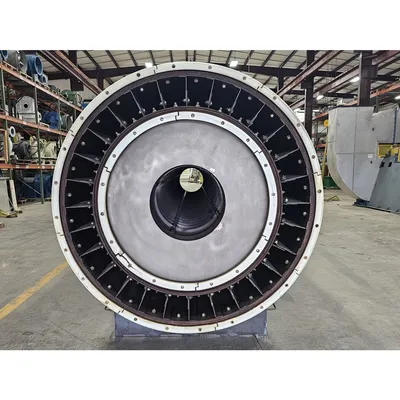

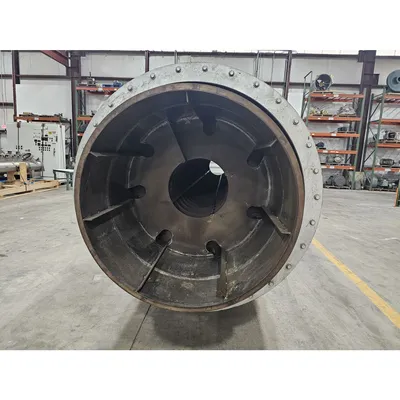

Dryer/cooler internals installed with a hollow, helical auger and Ø3/32" perforated screen.
1.5" thick shell insulation with stainless steel sheet outer cladding.

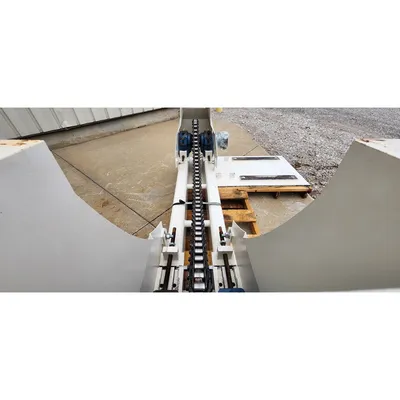

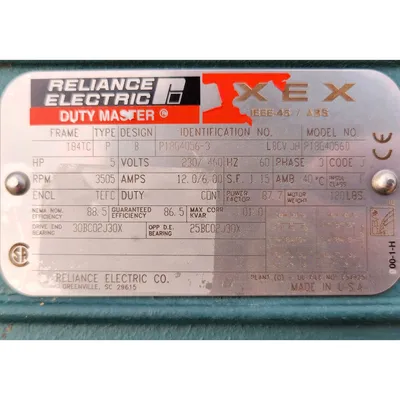

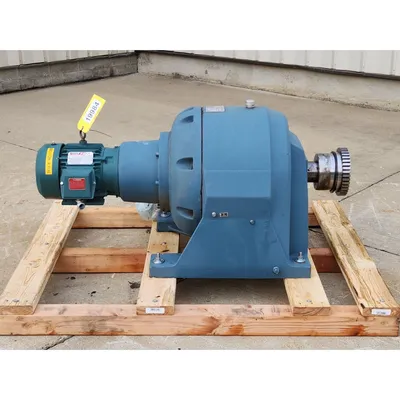

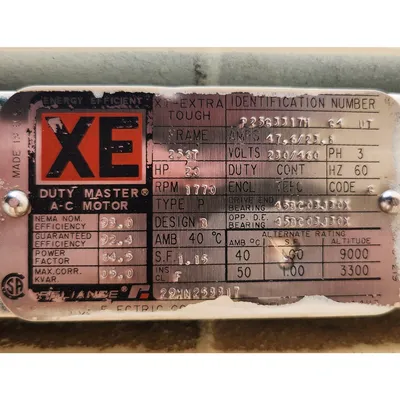

5HP inline gearmotor with tangential chain drive (0.5 to 2.5RPM dryer speed)

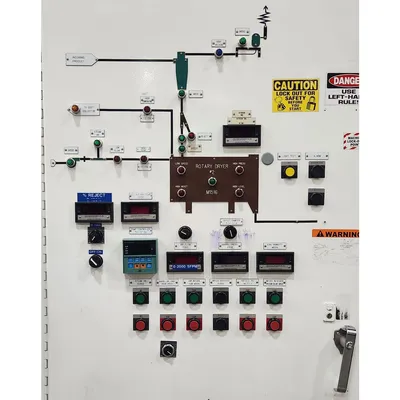

Dryer/Cooler Controls: NEMA 12 enclosure, top conduit-routed, 460V AC service
The main drum weighs 15,800 LBS.

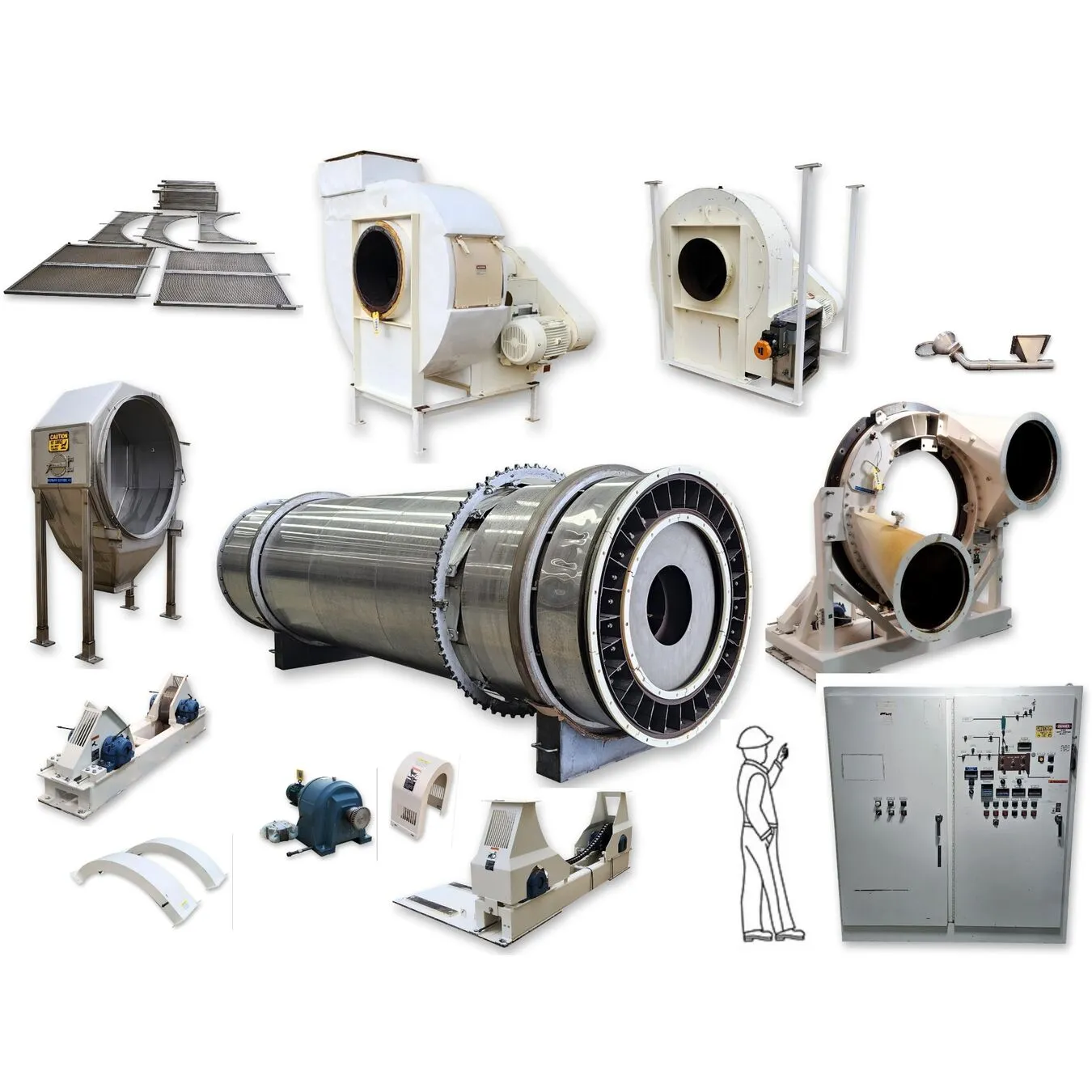

Included Ancillary Components:

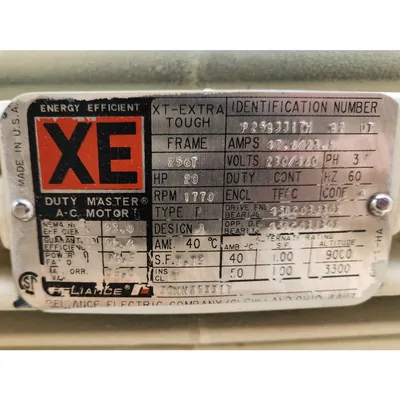

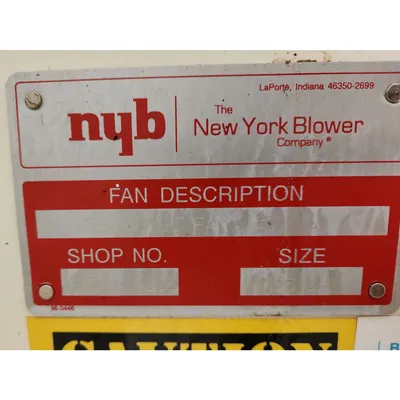

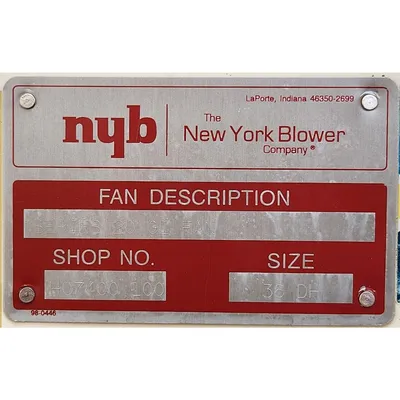

• Air Supply Fan- 20HP, 9000CFM @ 9"SP with modulating zone damper
• Air Exhaust Fan- 20HP, 9000CFM @ 9"SP
• 2-row steam distribution coil with ducting (rated for 225PSI @ 366°F)
Previously used to dry food products (cereal pellets)
FOB: Millwood, WV 25262
Specifications
Item: 19984 Model : 502-20
MFG: FMC Corp
