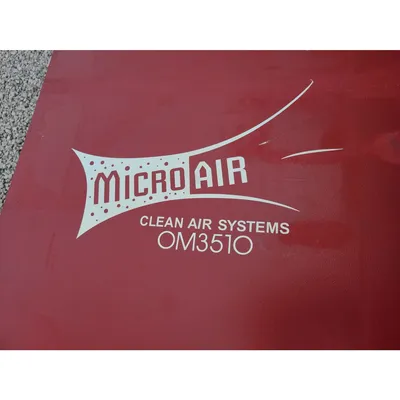

USED MICRO AIR CLEAN AIR SYSTEMS OM3510

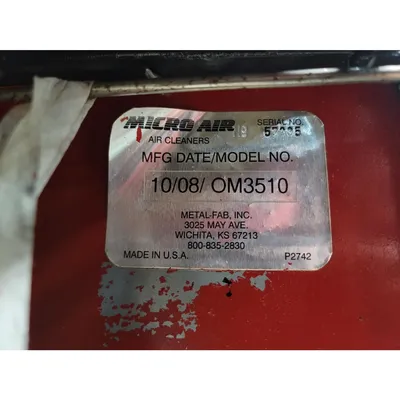

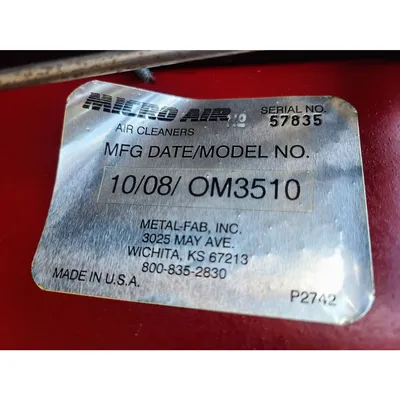

Serial No: 57835

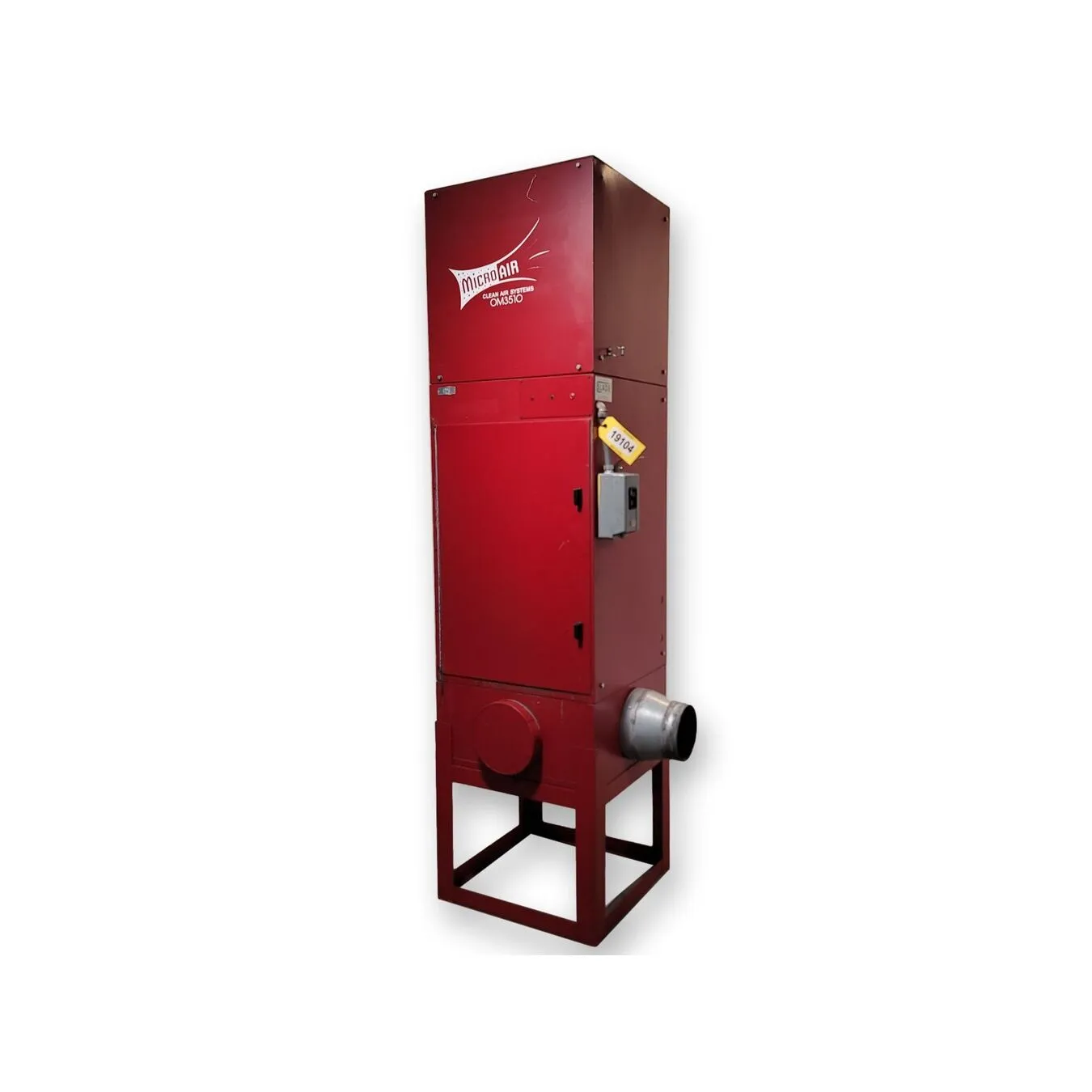

Cabinet construction is 16GA welded galvanized steel
Unit was previously configured as an oil mist separator/collector for machining
Mist-laden process air enters up to three bottom inlets

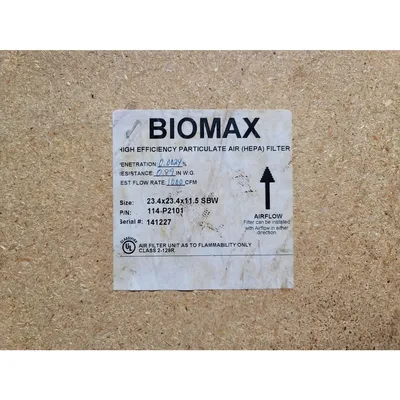

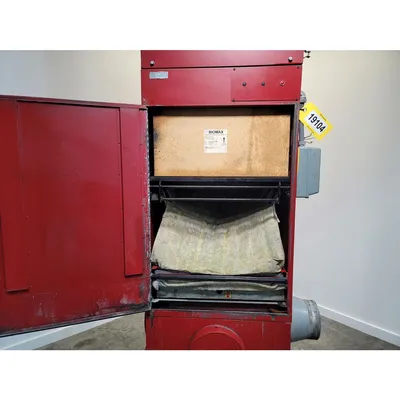

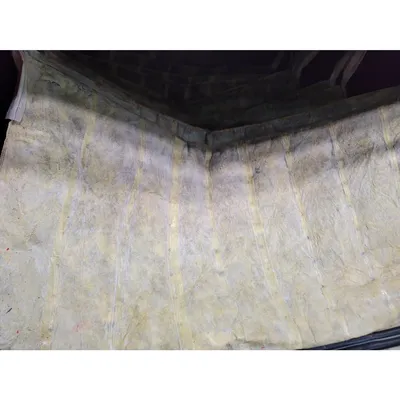

Airflow is directed upwards through a baffle impinger, mesh pre-filter, and oil mist bags
Separated oil drains out the bottom 1 1/2"NPT drain

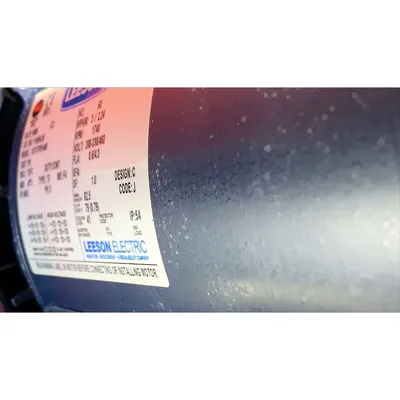

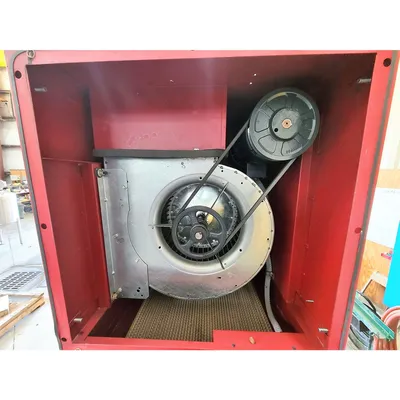

3HP top-mounted centrifugal fan (1740RPM)
Supply: 208-230/460V, 60Hz, 3ph

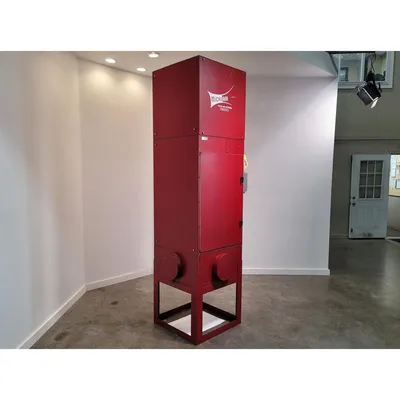

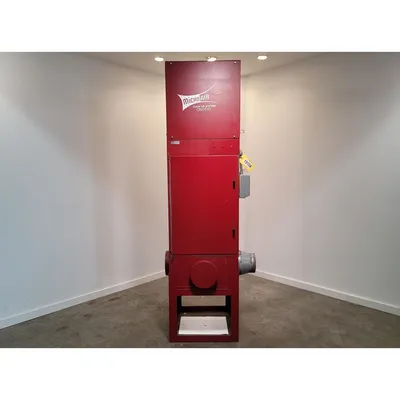

Cabinet Dimensions: 26" square X 103" height (including stand)
Demonstration video on file.
Overall dimensions: 28x37x103"
Weight = 451 LBS

FOB: Millwood, WV 25262

Item: 19104      Model :   OM3510
 MFG: Micro Air Clean Air Systems
