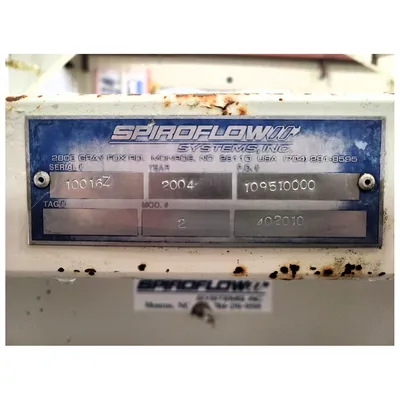

Serial No: 10016Z

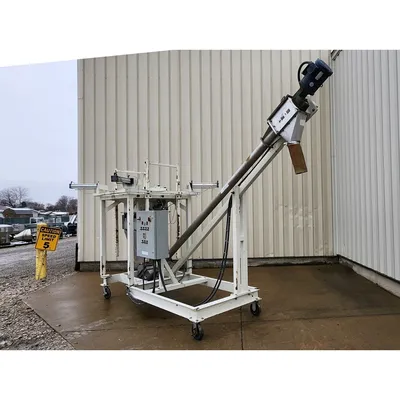

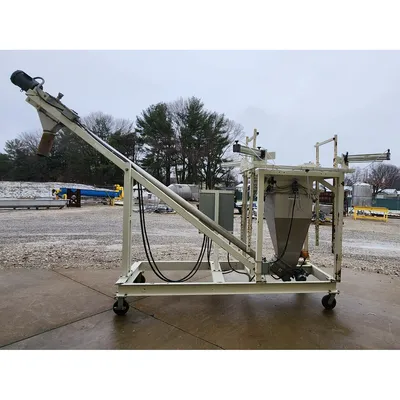

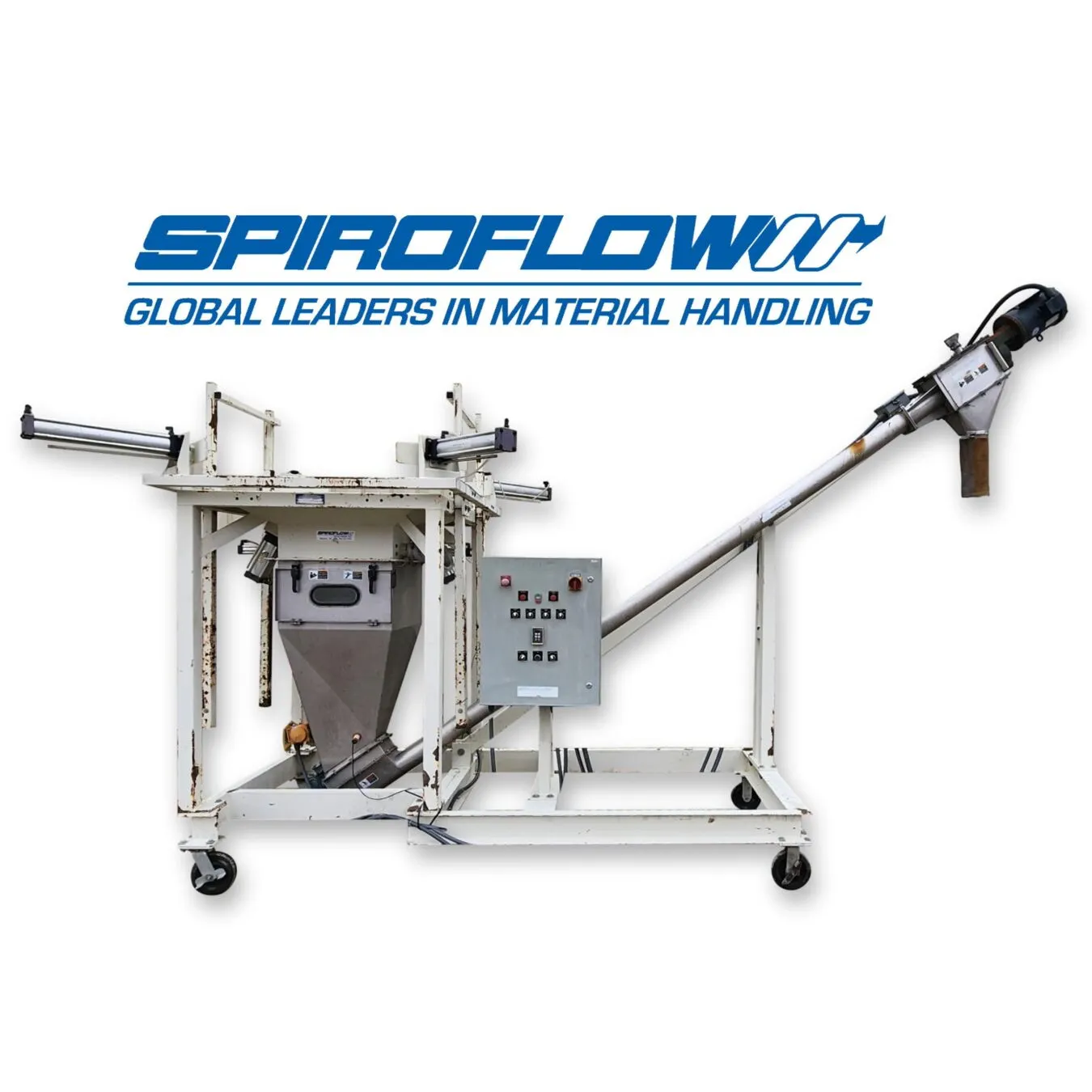

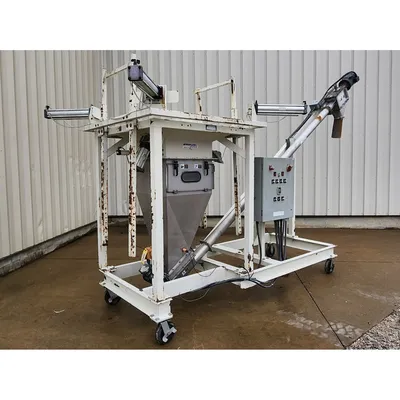

For unloading dry granules, pellets, flake or powders using
304 stainless steel material contact with a mild steel portable frame assembly.
The Type 2 unloader features a bag un-tie access, side and corner bag massagers and spout cincher.
Conveyor: Model FSC 412, 4"Ø rigid tube 168"L, hopper agitator, 35° incline, round spiral auger
6"Ø drop-out discharge at 97.5" discharge height.
Adjustable support frame for forklift bag carriage (forklift carriage not available).

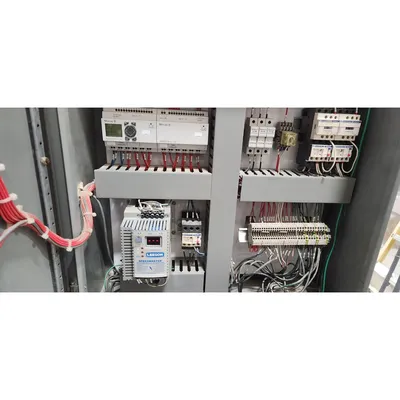

Pre-wired electronics with variable speed controller and a PLC.

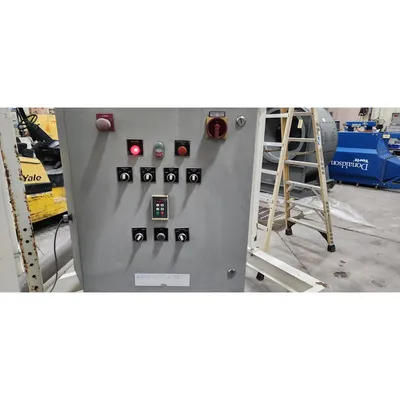

Enclosure: NEMA 4/12 enclosed controls with auger speed control (460V, 60Hz, 3ph)
Compressed air required, manual & arrangement drawing on file.
FOB: Millwood, WV 25262
Item: 20965 Model : 2
MFG: Spiroflow Systems
