USED BEPEX SJ-30-14

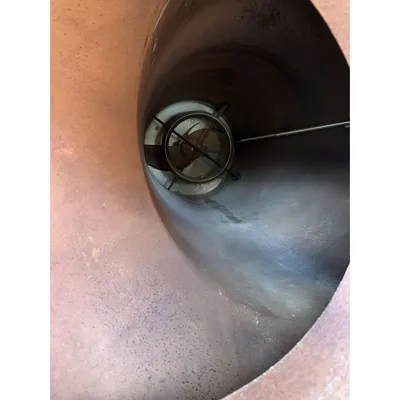

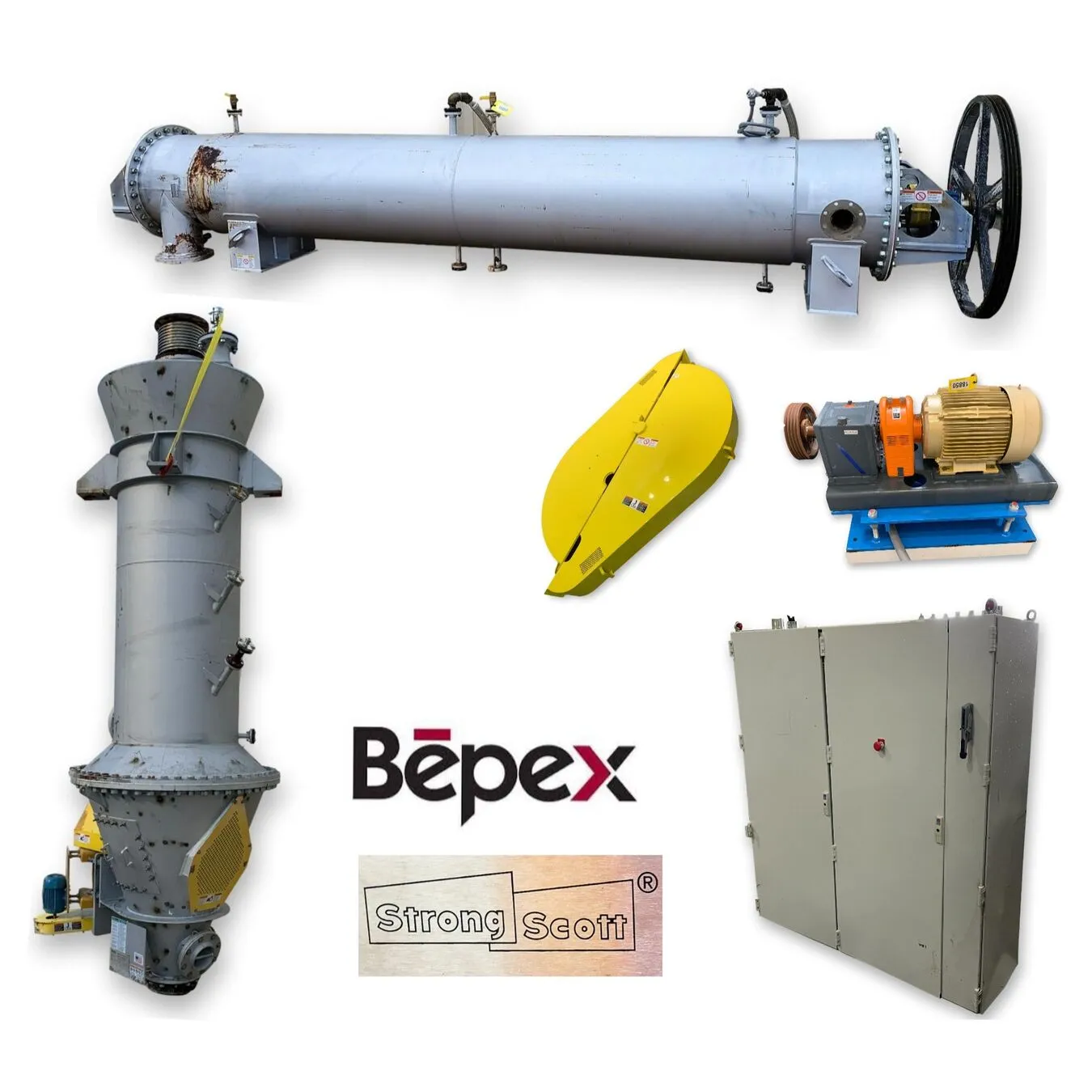

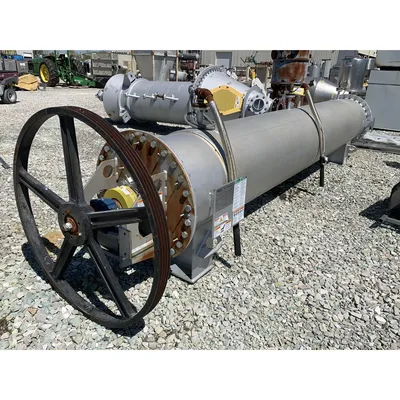

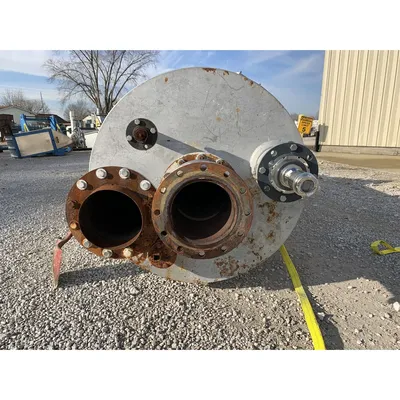

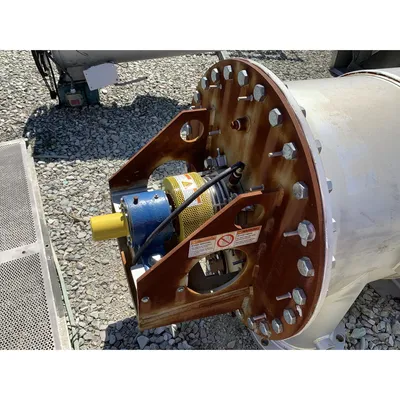

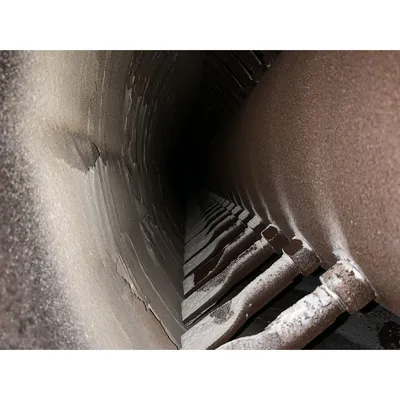

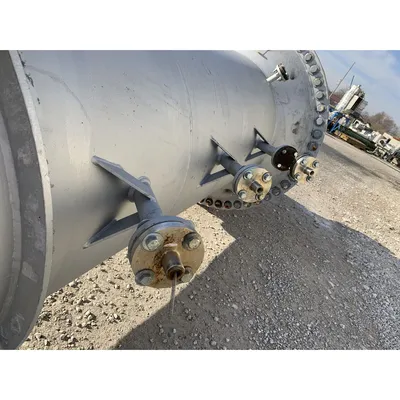

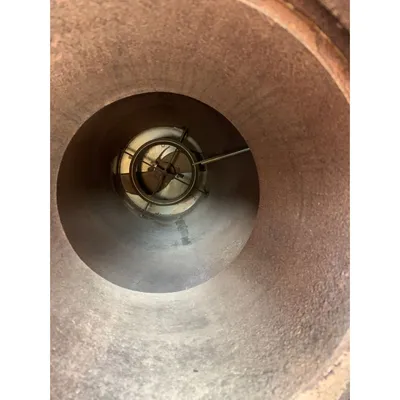

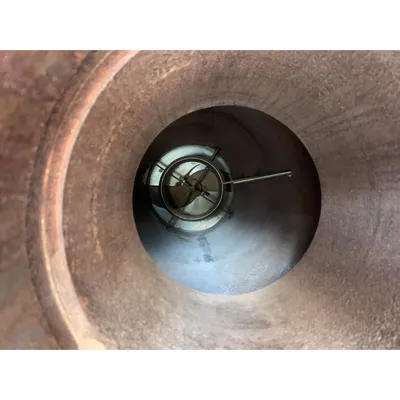

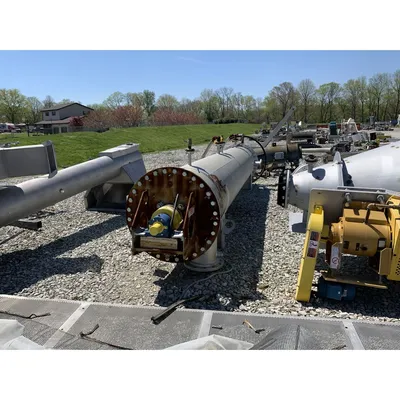

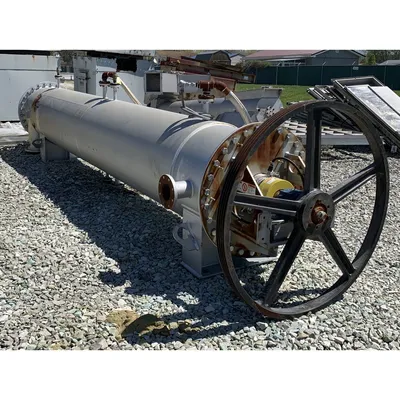

The Bepex Solidaire (Model SJ 30-14) has a flexible design for continuously processing solids (powders, polymers & pigments) in chemical or plastics industries. The Solidaire housing is 30" in diameter and a length of 208" with a jacketed shell (hot oil). It is fitted with a large quantity of adjustable pitch paddles. The unit can by heated by direct heat, indirect heat, or a combination in drying applications.

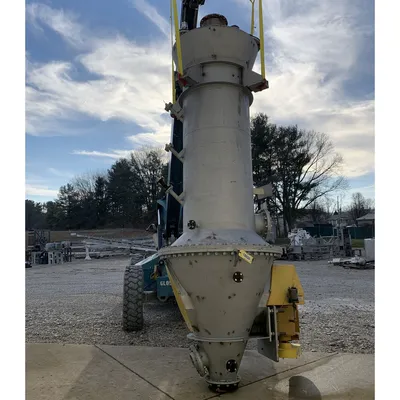

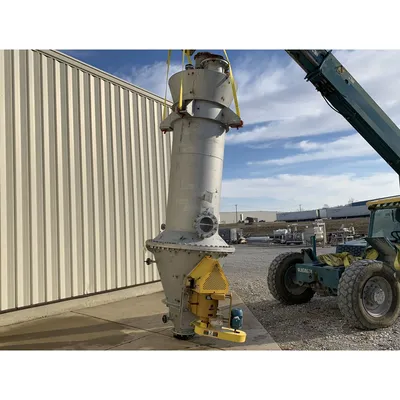

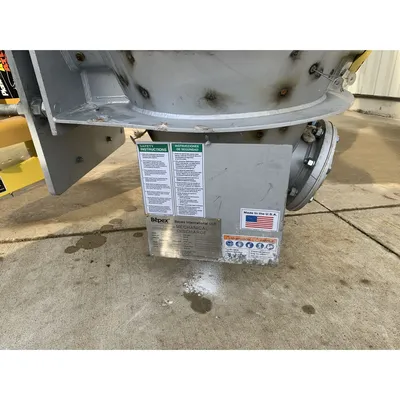

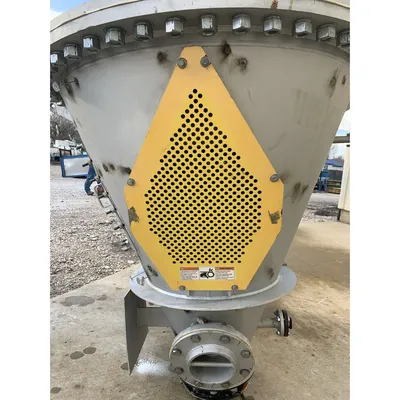

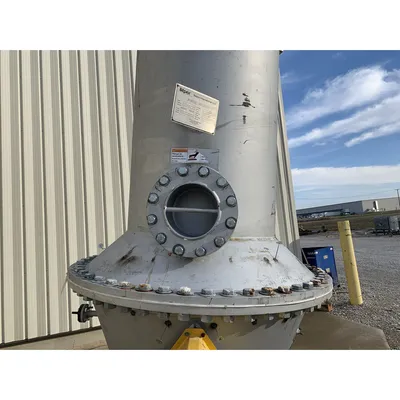

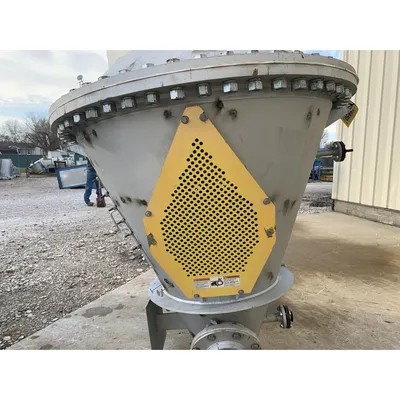

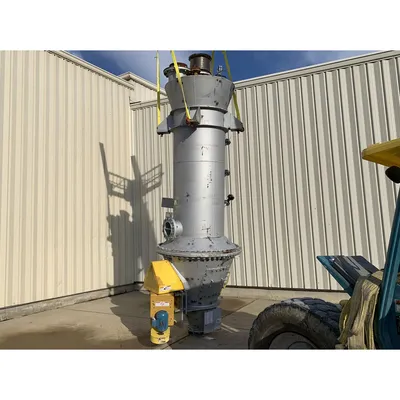

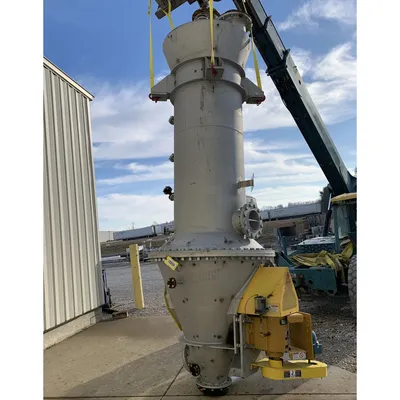

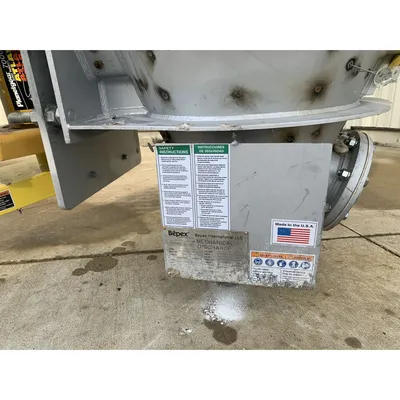

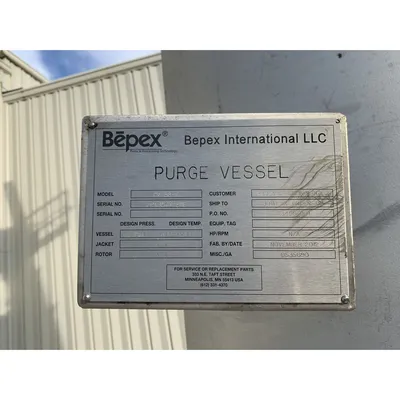

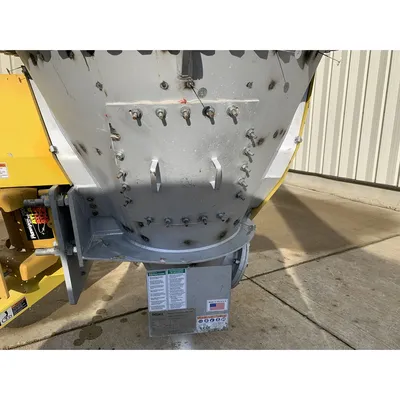

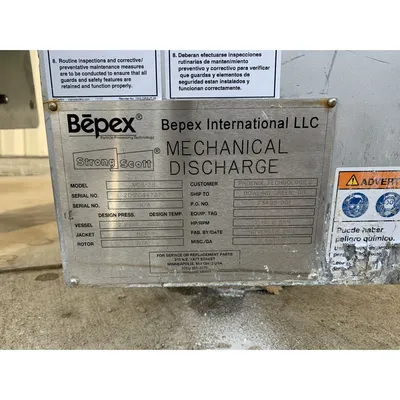

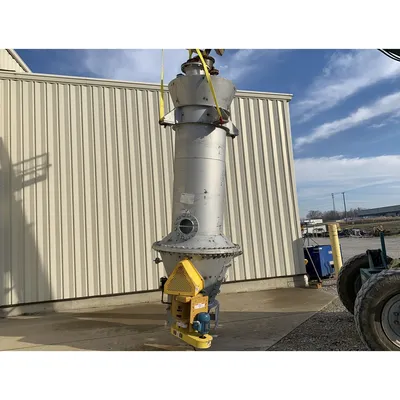

The Purge Vessel (Model PV 36-10) with mechanical discharging hopper for drying material. Hot, dry air enters through a gas distribution ring for uniform flow throughout the material bed. Included Mechanical Discharge Hopper (Model MDS 36) meters material out after residence time is achieved.

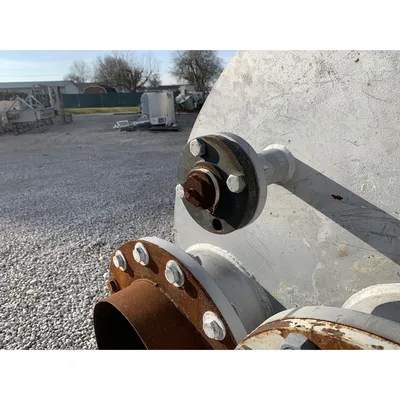

Product Inlet: 4"Ø ANSI 150 class flange
Product discharge: 10"Ø ANSI 150 flange

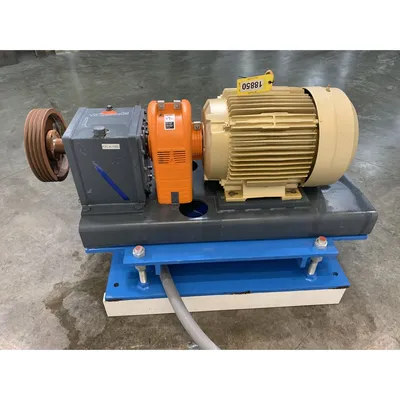

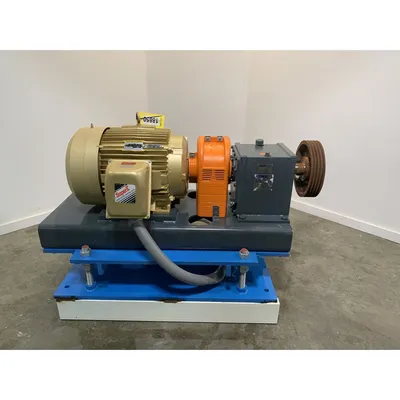

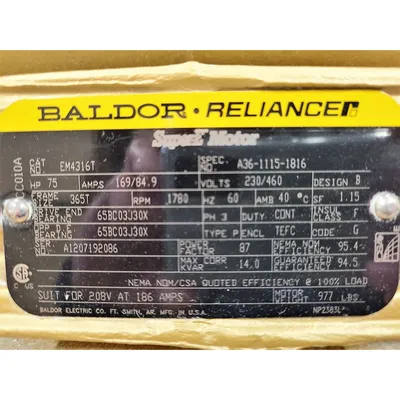

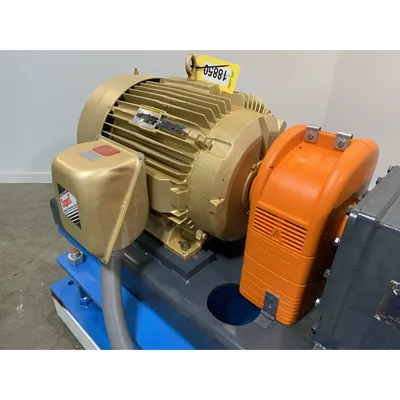

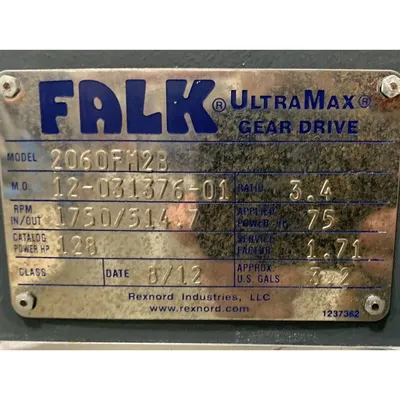

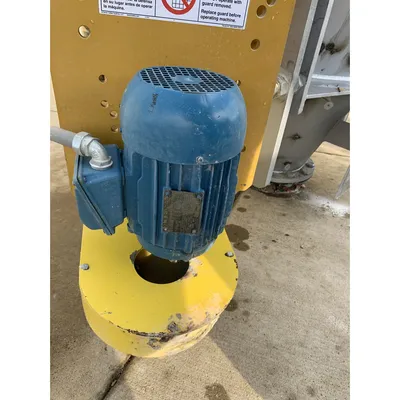

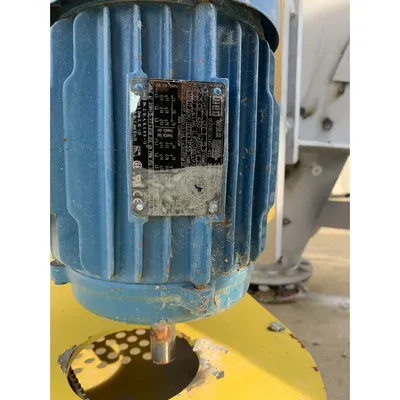

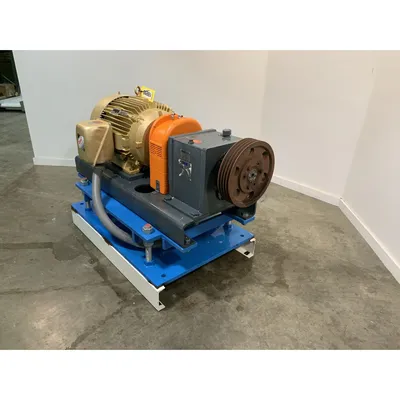

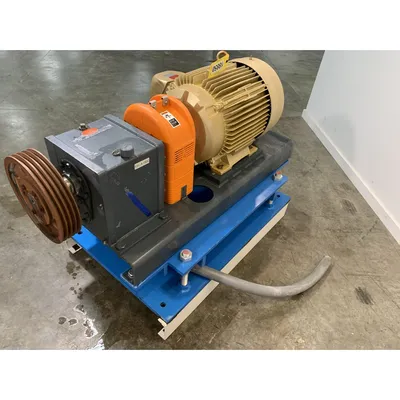

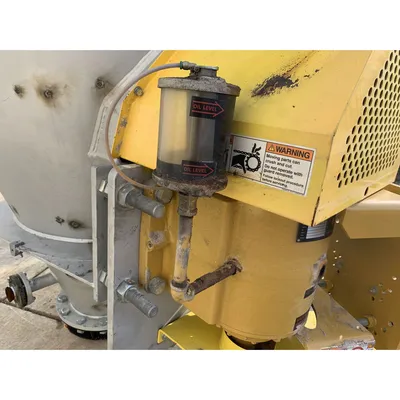

Powered by a 75HP inline gearmotor and belt reduction drive with guard (separately mounted) 230/460VAC, 60Hz, 3ph

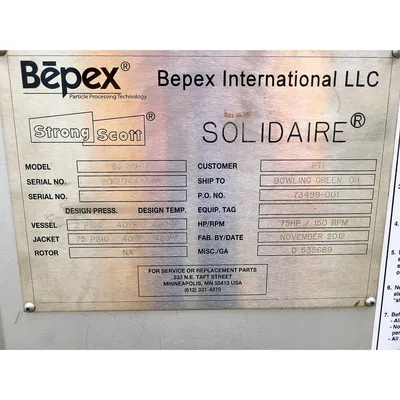

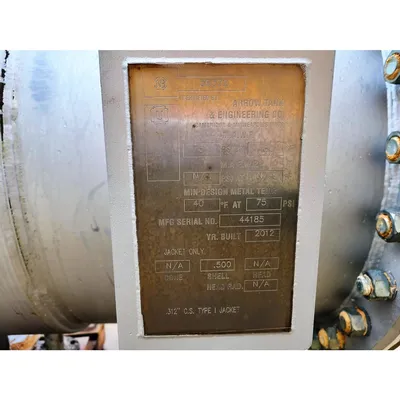

Design Pressure: 2PSIG Vessel; 75PSIG Jacket
Design Temperature: 40°F to 480°F Vessel & Jacket

FOB: Millwood, WV 25262

Item: 18850      Model :   SJ-30-14
 MFG: Bepex
