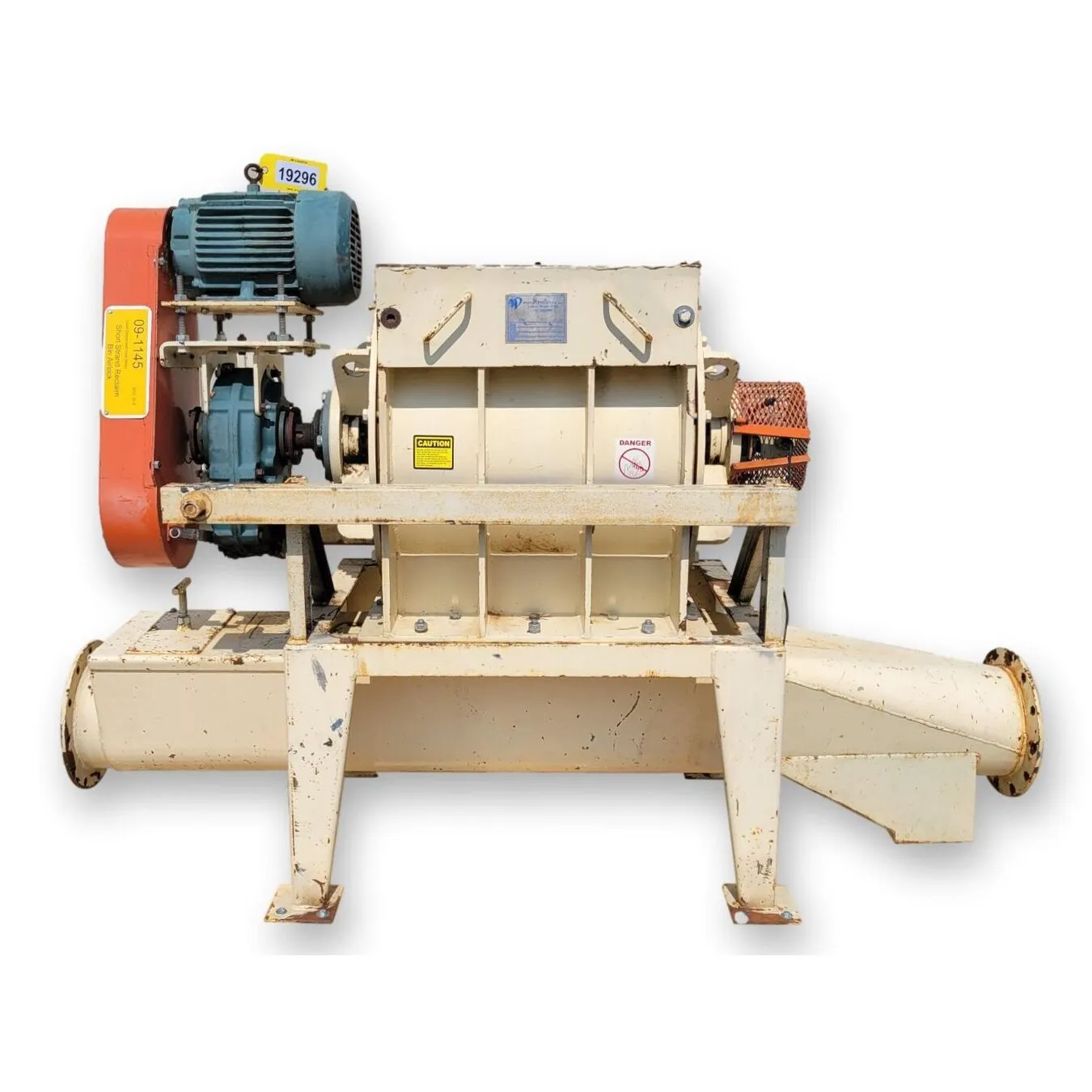

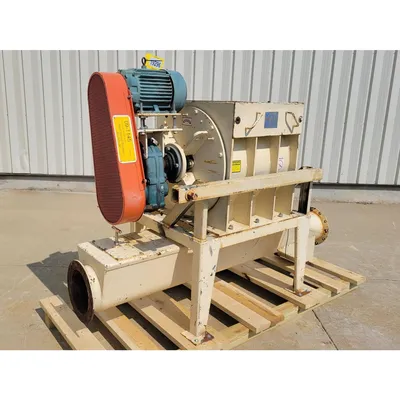

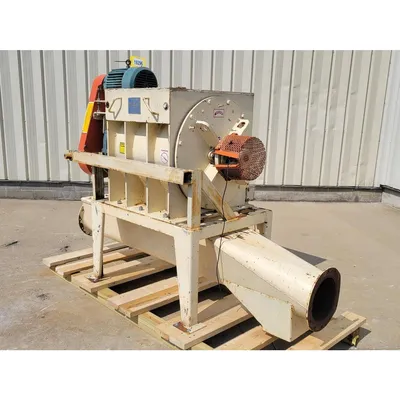

USED WESTERN PNEUMATICS, INC. FDRW 2525

Chip feeder style valve constructed from mild steel

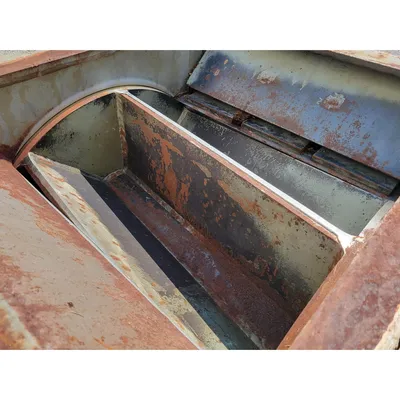

Tapered product inlet throat with cutting blade at pinch point

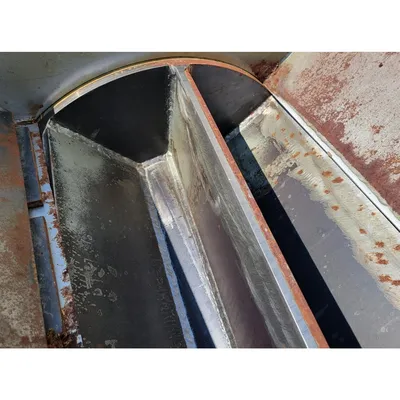

Heavy-duty rotor with helical blades, plain end tips and endplates (4.7ft³ per revolution)
Product Inlet: 22" X 26"
Discharge: 10"Ø flanged pneumatic blow-thru conveying adapter (Line Length: 93.25")
Top of feeder is 57" from floor elevation

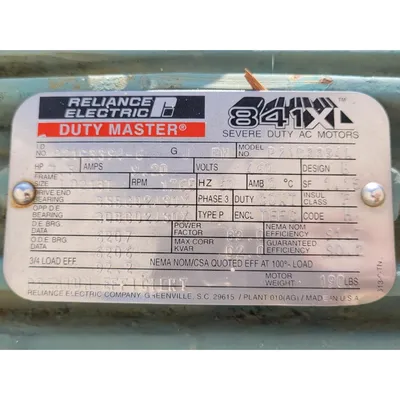

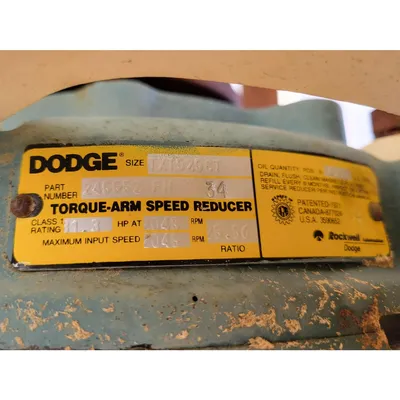

7.5HP V-belt drive with torque-arm gear reducer
Supply: 460VAC, 60Hz, 3 phase
Current rotor RPM: 30.16

FOB: Millwood, WV 25262

Item: 19296      Model :   FDRW 2525

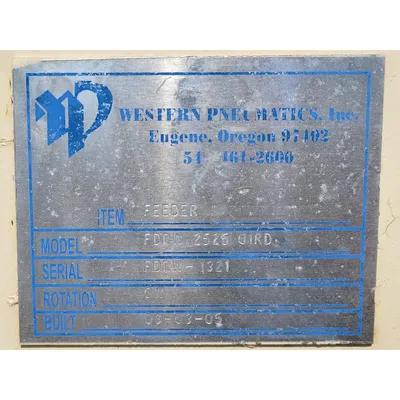

 MFG: Western Pneumatics, Inc.
 Size (inches): 26
  Motor HP: 7.5
