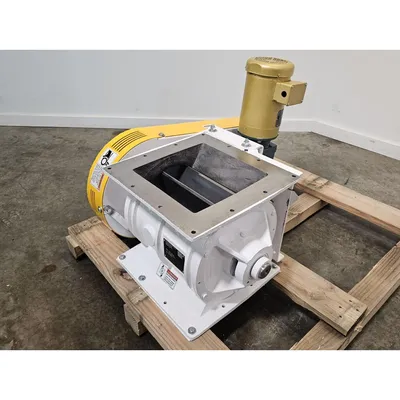

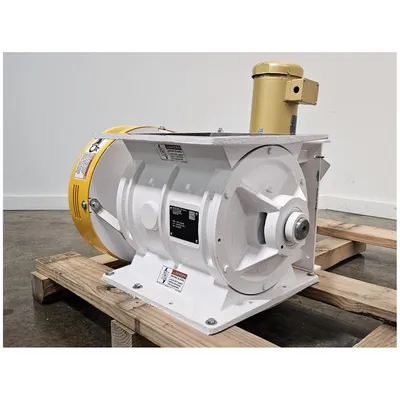

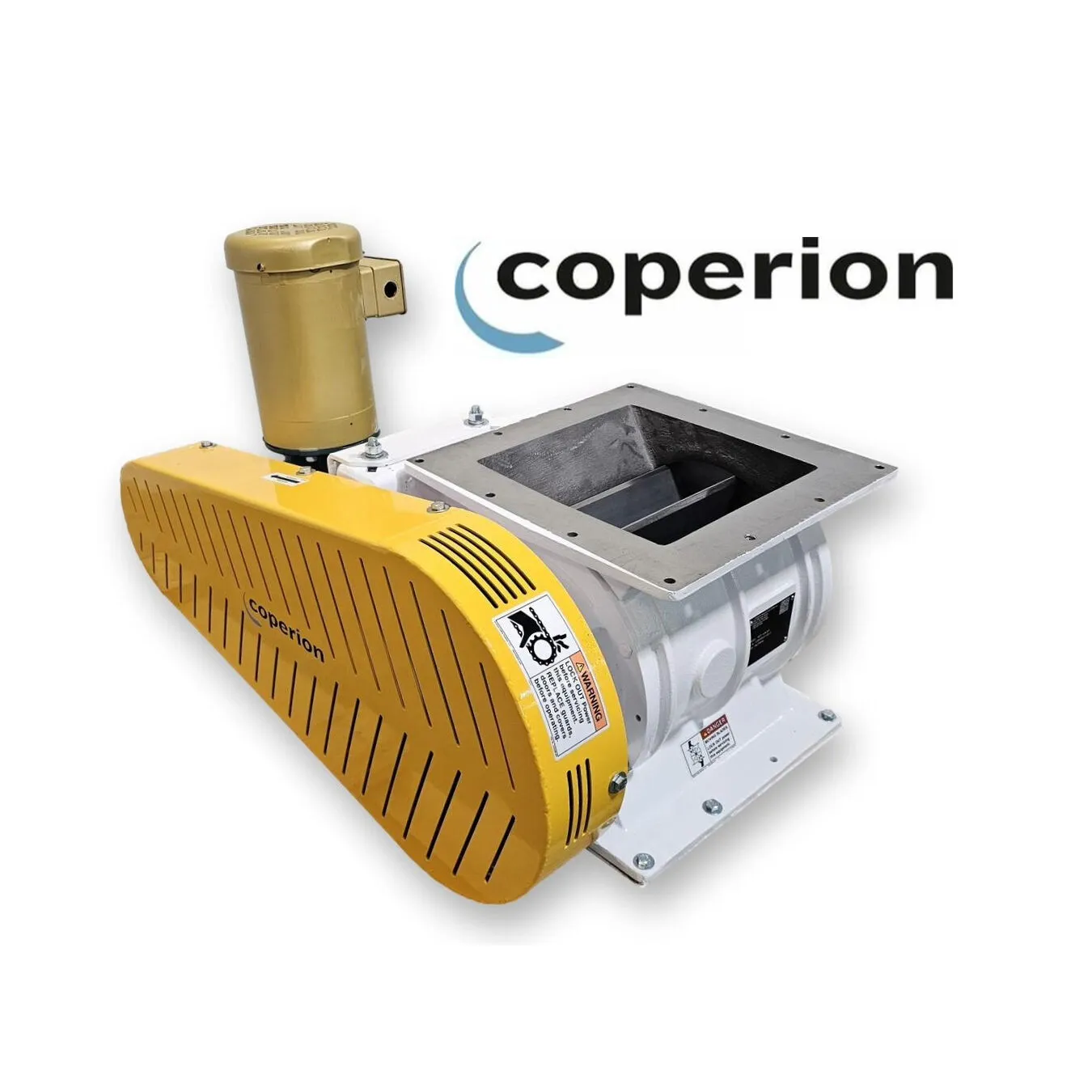

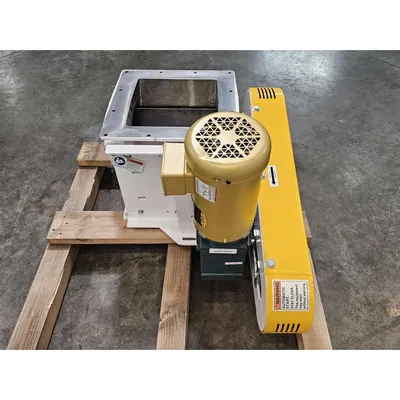

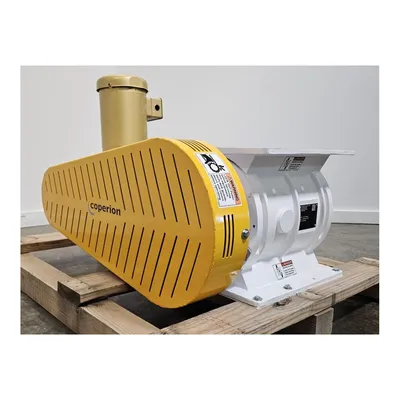

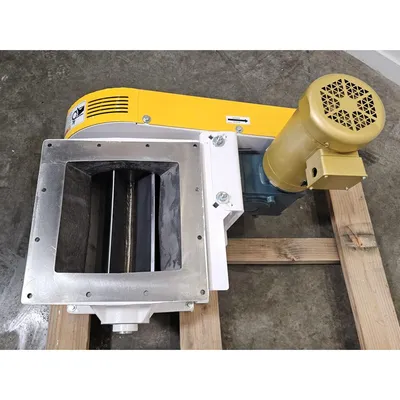

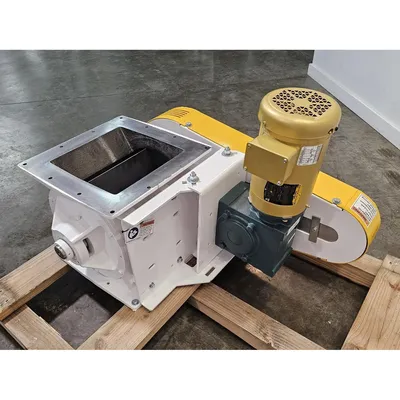

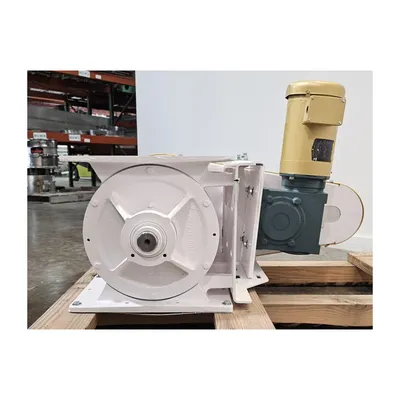

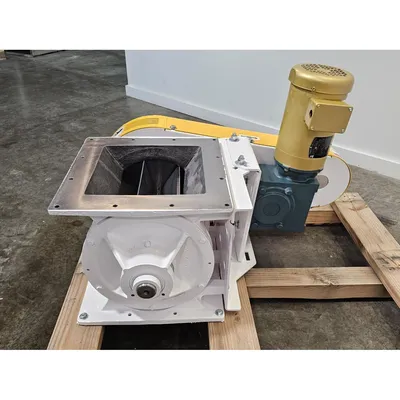

USED COPERION PROCESS LLC MD75

Complete with: cast grey iron housing and endplates

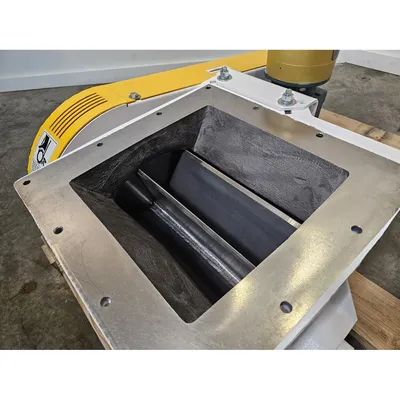

Flanged housing with 12" sq. Inlet and 13" sq. Discharge
Outboard sealed bearings
Stainless steel sleeve TS4 shaft seals for high temp application,

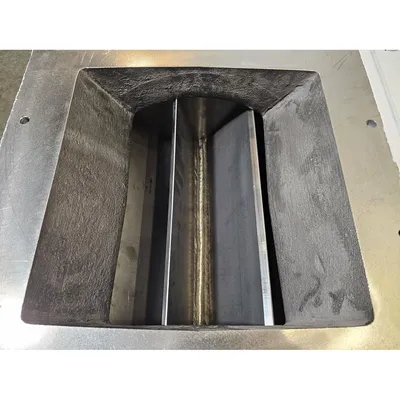

8-vane open end carbon steel rotor with:
- fixed relieved 1/8" land rotor tips
- Class II (0.008" to 0.011") rotor tip clearance

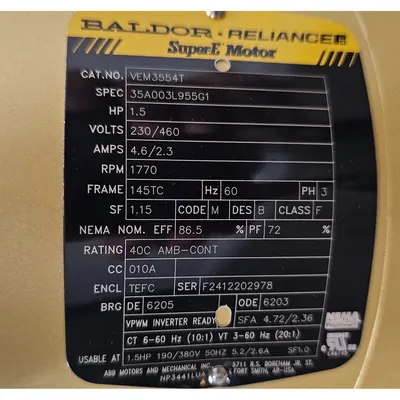

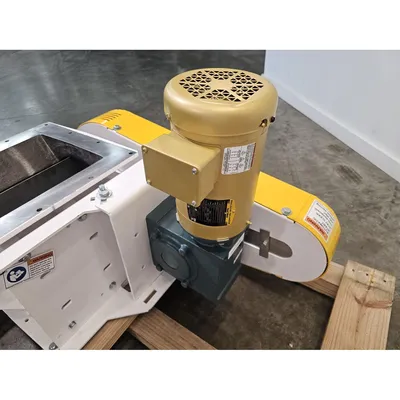

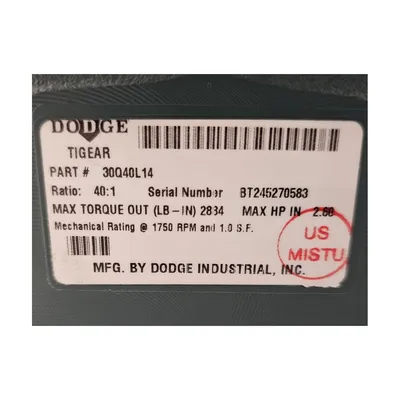

1-1/2HP TEFC premium efficiency gearmotor (230/460/3/60hz)
- Rotor Speed: 18RPM

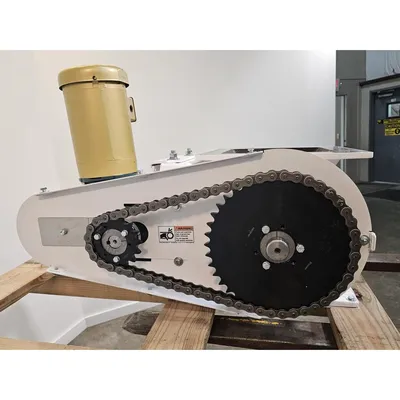

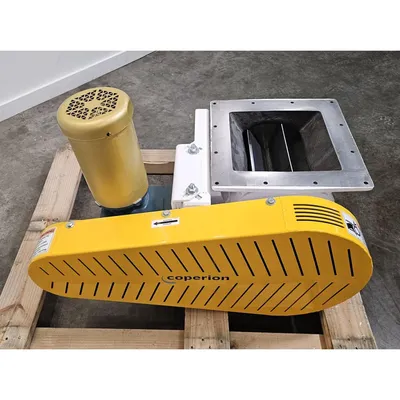

Plastic drive guard cover with carbon steel back
Gasket material on flanges to be food grade silicone caulk
Replacement airlock, duplicate to airlock s/n 110313939, including drive
High temperature epoxy paint, RAL9003 signal white
Max. Temperature: 250°F.
Shipping dimensions: 48x40x30"
Shipping weight = 577 LBS.
Contact us for availability!

FOB: Millwood, WV 25262

Item: 21117      Model :   MD75
 MFG: Coperion Process LLC
 Size (inches): 12
  Motor HP: 1.5
