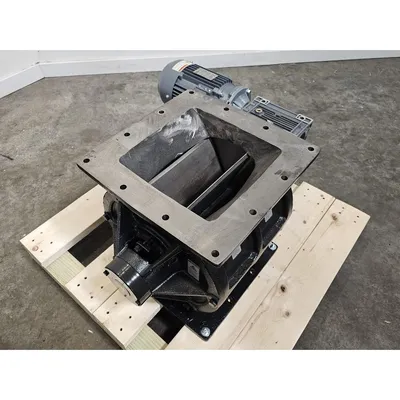

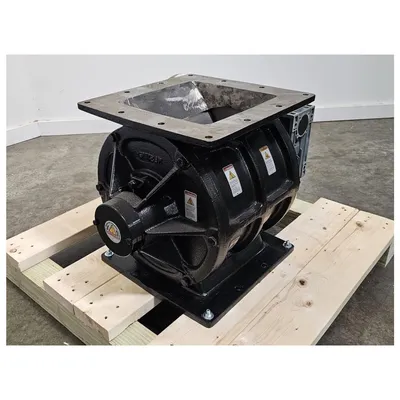

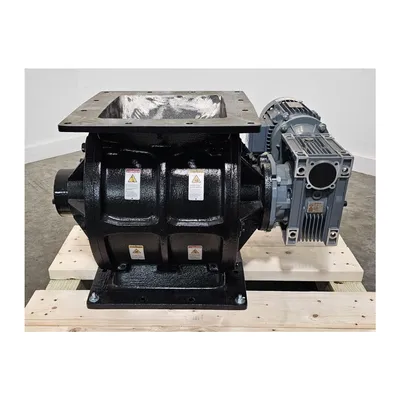

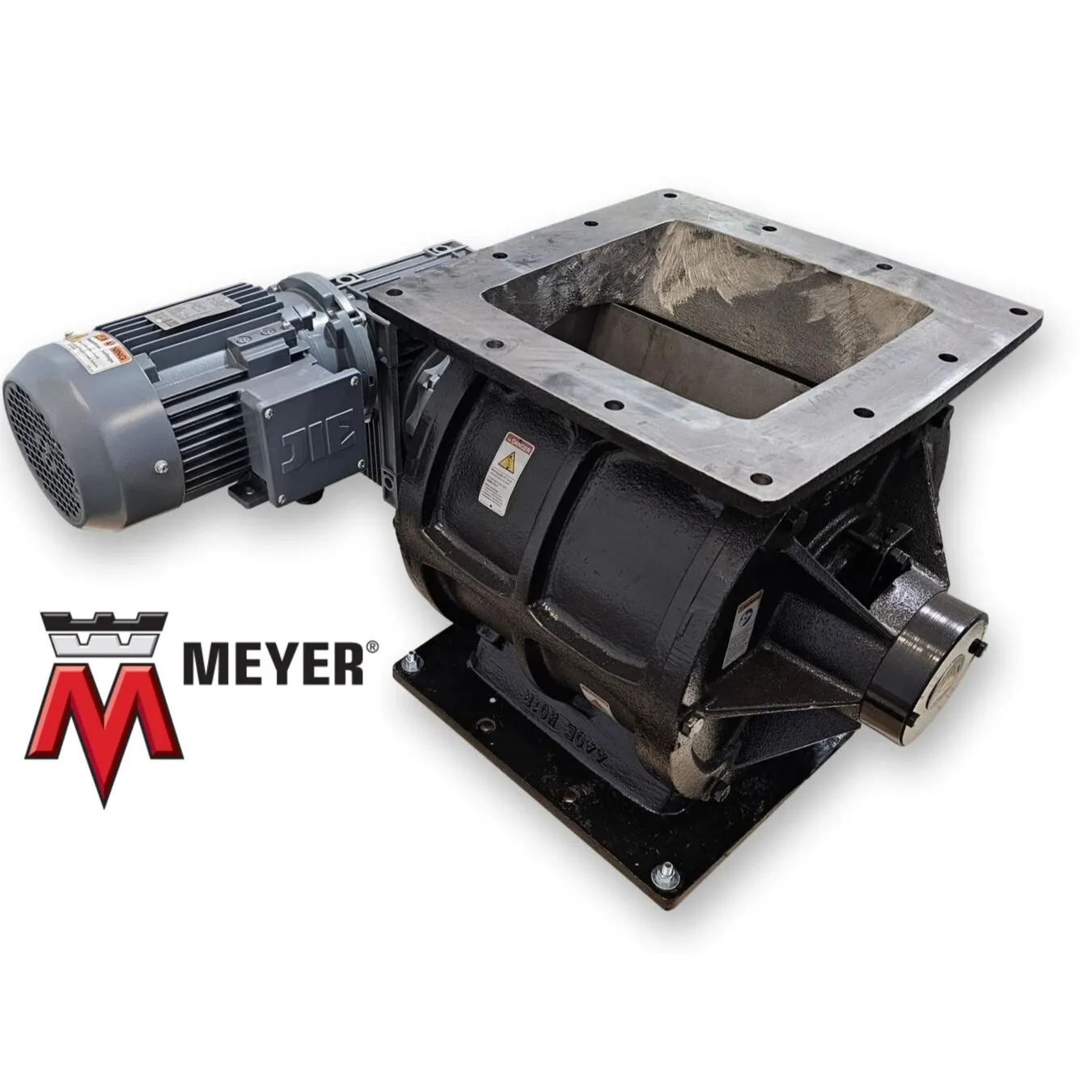

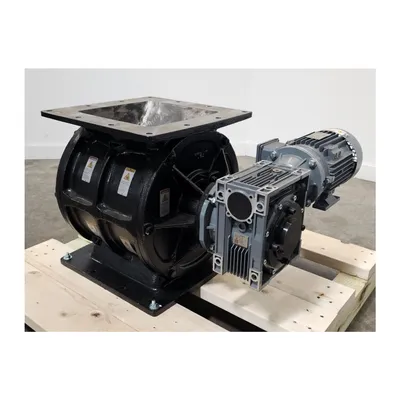

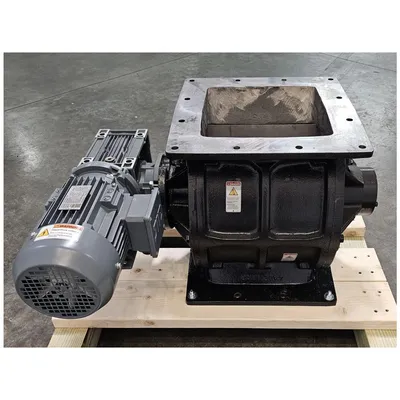

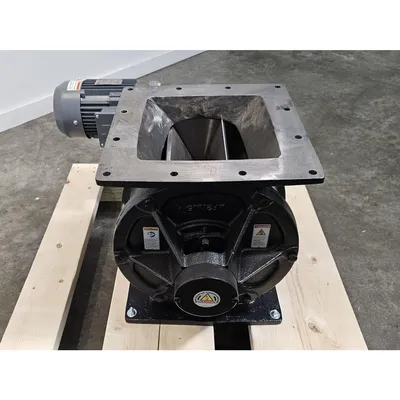

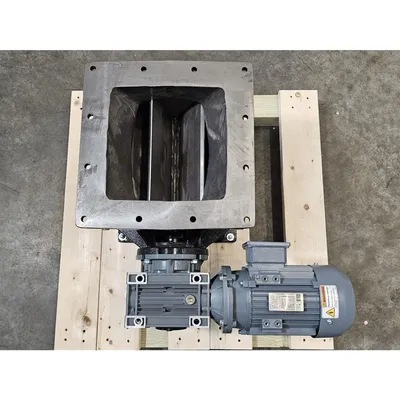

USED WM. W. MEYER & SONS, INC. 12DDVFDR

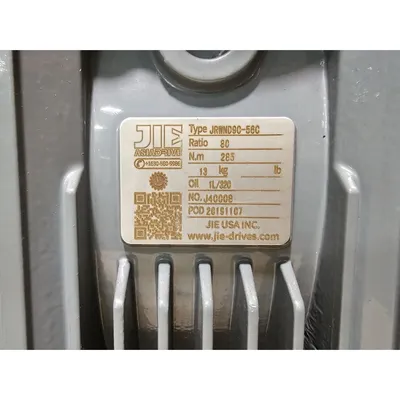

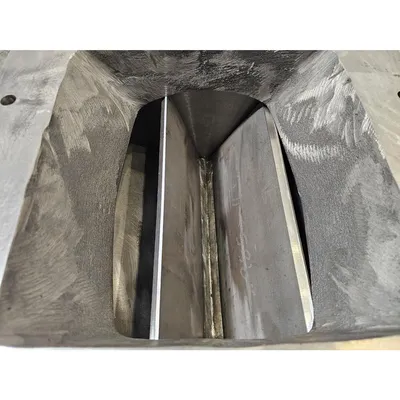

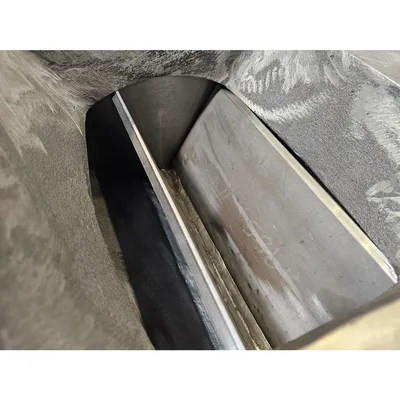

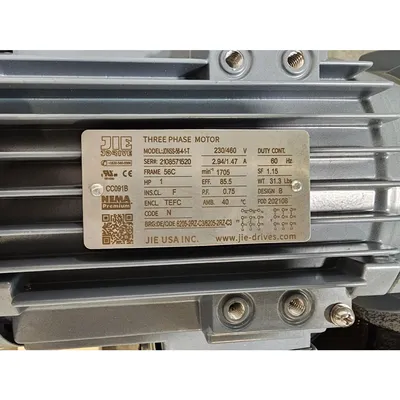

All carbon steel construction. Open-end rotor w/ beveled tips. Feed rate: 0.9 cu ft per revolution. 18.25" valve height. Direct drive right-angle worm gear, motor info: 1hp, 208-230/460v, 60hz, 3ph. Rotor speed = 22 RPM. The DDV dust duty valves are designed to provide a low cost airlock solution for simple dust collection under baghouses and cyclones. This design is uniquely suited for low pressure applications in light duty non-abrasive dust collection projects. Shipping info: 450 lbs. 36"W x 36"L x 29"H. 1 skid.
Video Available.
Contact us for availability and lead time.

FOB: Millwood, WV 25262

Item: 20869      Model :   12DDVFDR
 MFG: Wm. W. Meyer & Sons, Inc.
 Size (inches): 12
  Motor HP: 1
