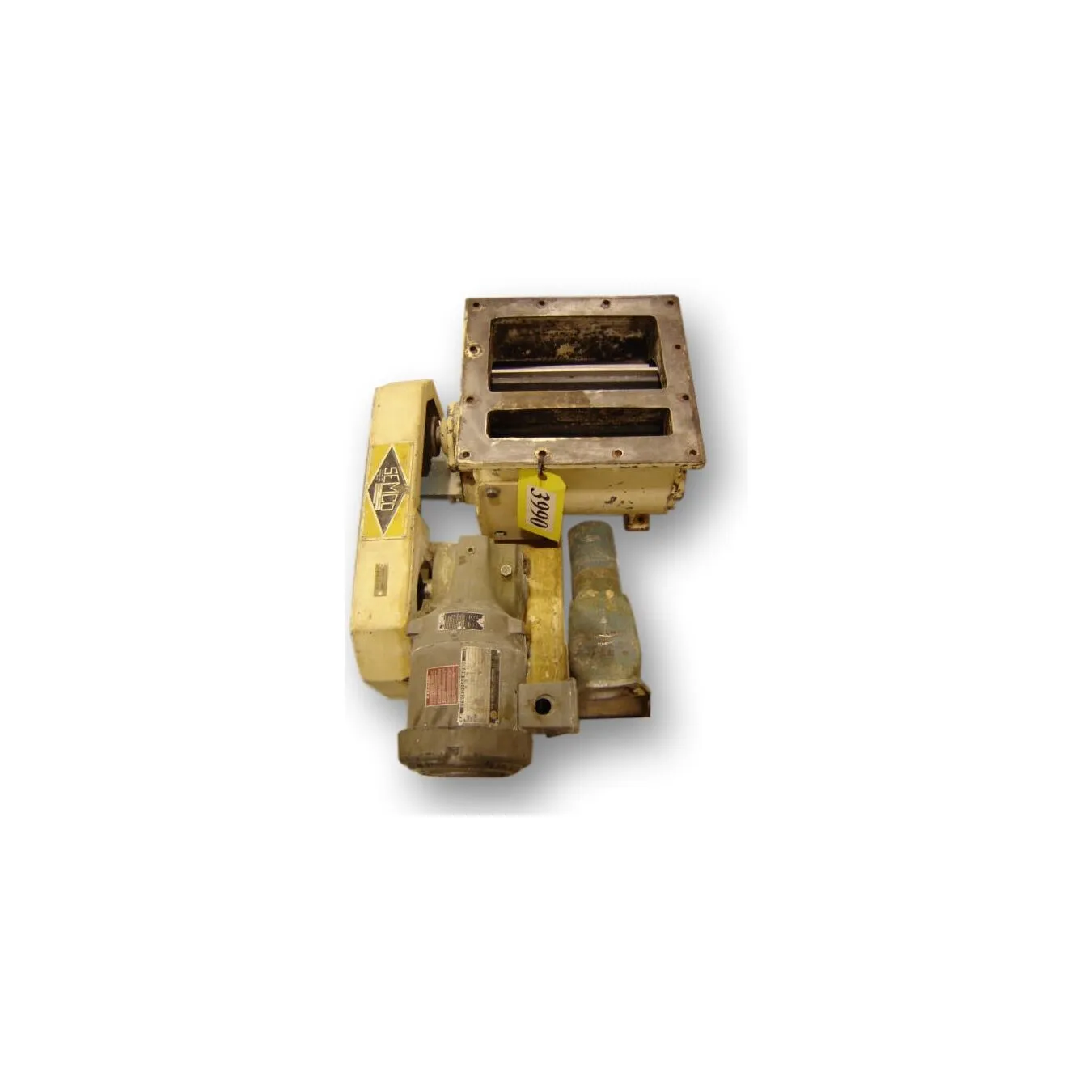

11.25" X 6.5" VENTED INLET SEMCO ROTARY VALVE

BLOW THRU DESIGN. DEEP POCKET, OPEN ENDED, ADJUSTABLE TIP ROTOR. INLET VENT SIZE IS 11.25" X 2.125". BLOW THRU DESIGN, SIDE OUTLET APPROX 2" X 3". REMOVABLE STAINLESS STEEL WIPER BLADES. SYNCROGEAR CHAIN DRIVE SYSTEM WITH GUARD BUT NO CHAIN. 1/2 HP, 1745 RPM, 56-6 FRAME, 230/460 VOLT, 3 PHASE, 60 Hz, TYPE JF-GW, MOTOR. 31.0 RATIO WITH A FINAL RPM OF 56, OUTPUT TORQUE 428 INCH POUNDS, 40 DEGREE C AMBIENT CONTINUOUS RATING. DRIVE ID-F-8017-04-006 K199R166. VALVE TURNS FREELY BY HAND AND IS IN GOOD CONDITION.

FOB: Millwood, WV 25262

Item: 03990
 MFG: SEMCO Inc.
 Size (inches): 10
  Motor HP: 0.5
