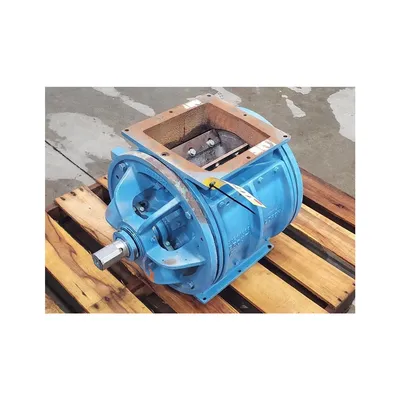

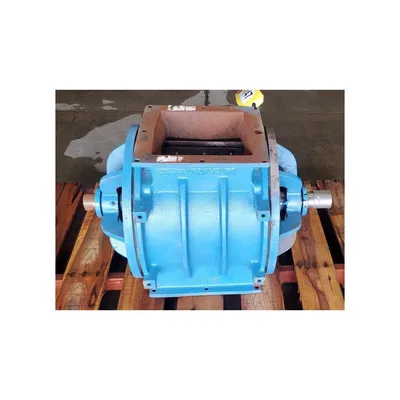

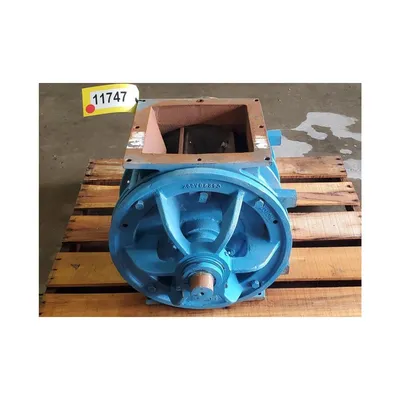

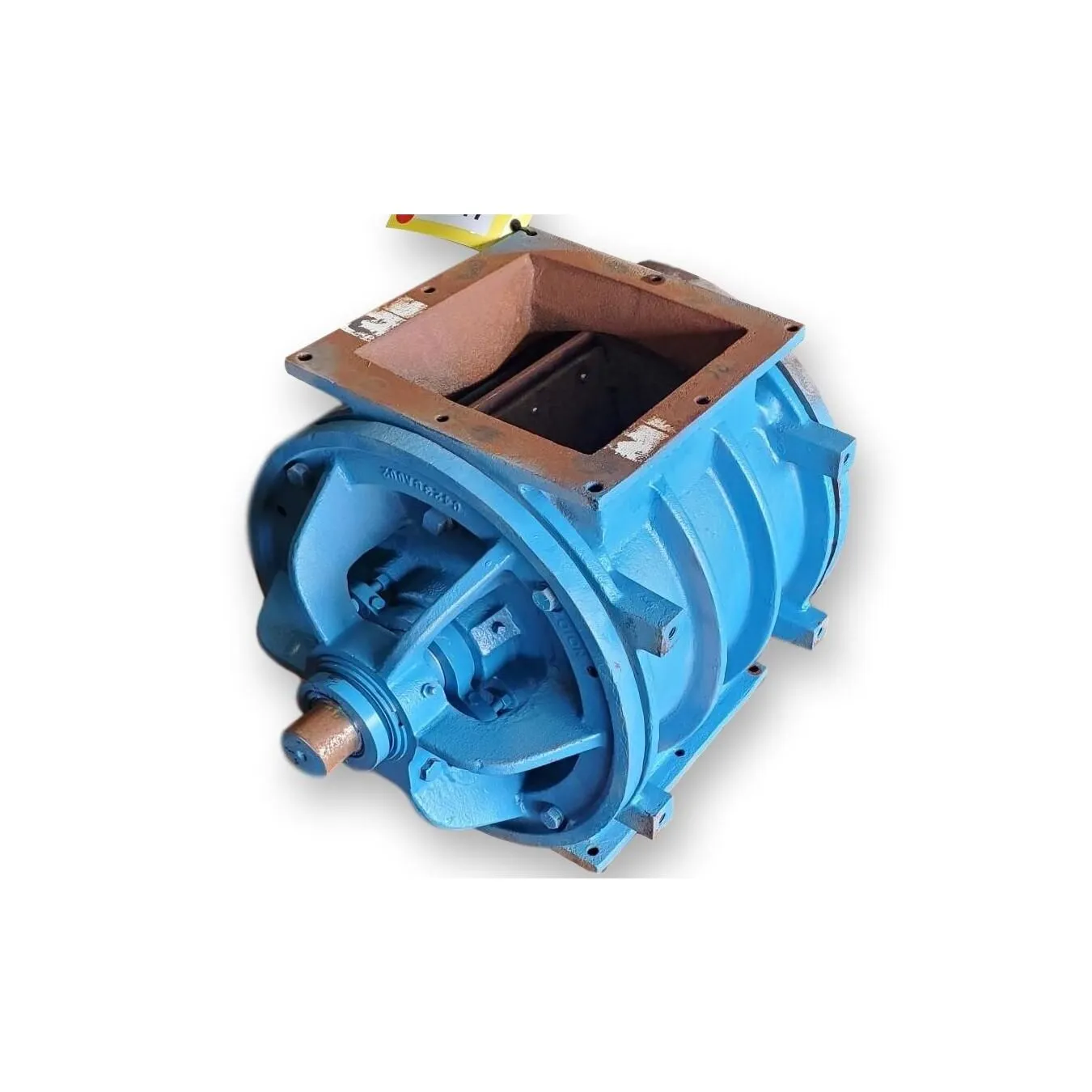

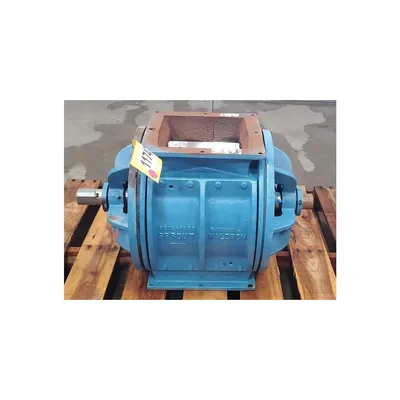

Used 10" x10" Sprout Waldron Rotary Airlock Valve

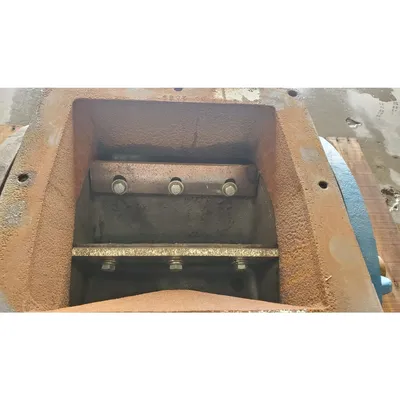

Carbon steel construction. Outboard bearings. Adjustable tipped rotor with side wall forming pockets. Valve height = 18.0".
Inside flange dimensions measure 10"x10"
Outside flange dimensions measure 13" x 13"
7/16"Ø bolt holes
1-15/16"Ø shaft; No drive included.
Shipping info: One skid, 28x30x24, 419 lbs.

FOB: Millwood, WV 25262

Item: 11747
 MFG: Sprout Waldron
 Size (inches): 10
