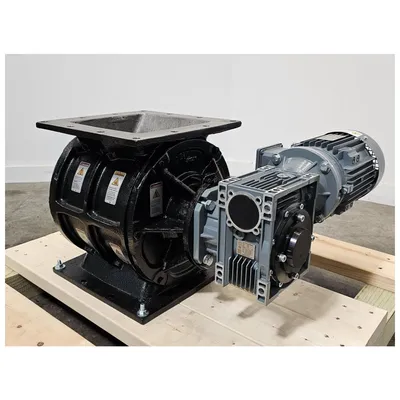

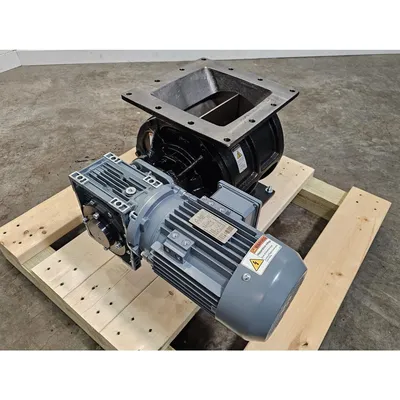

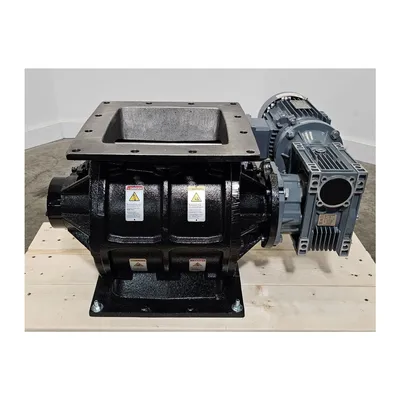

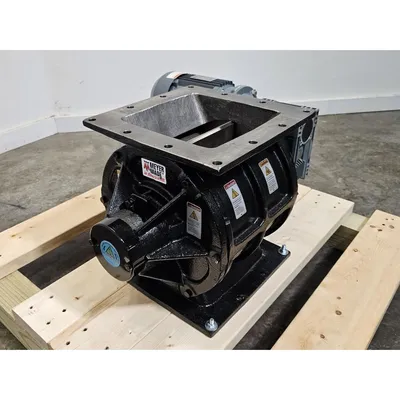

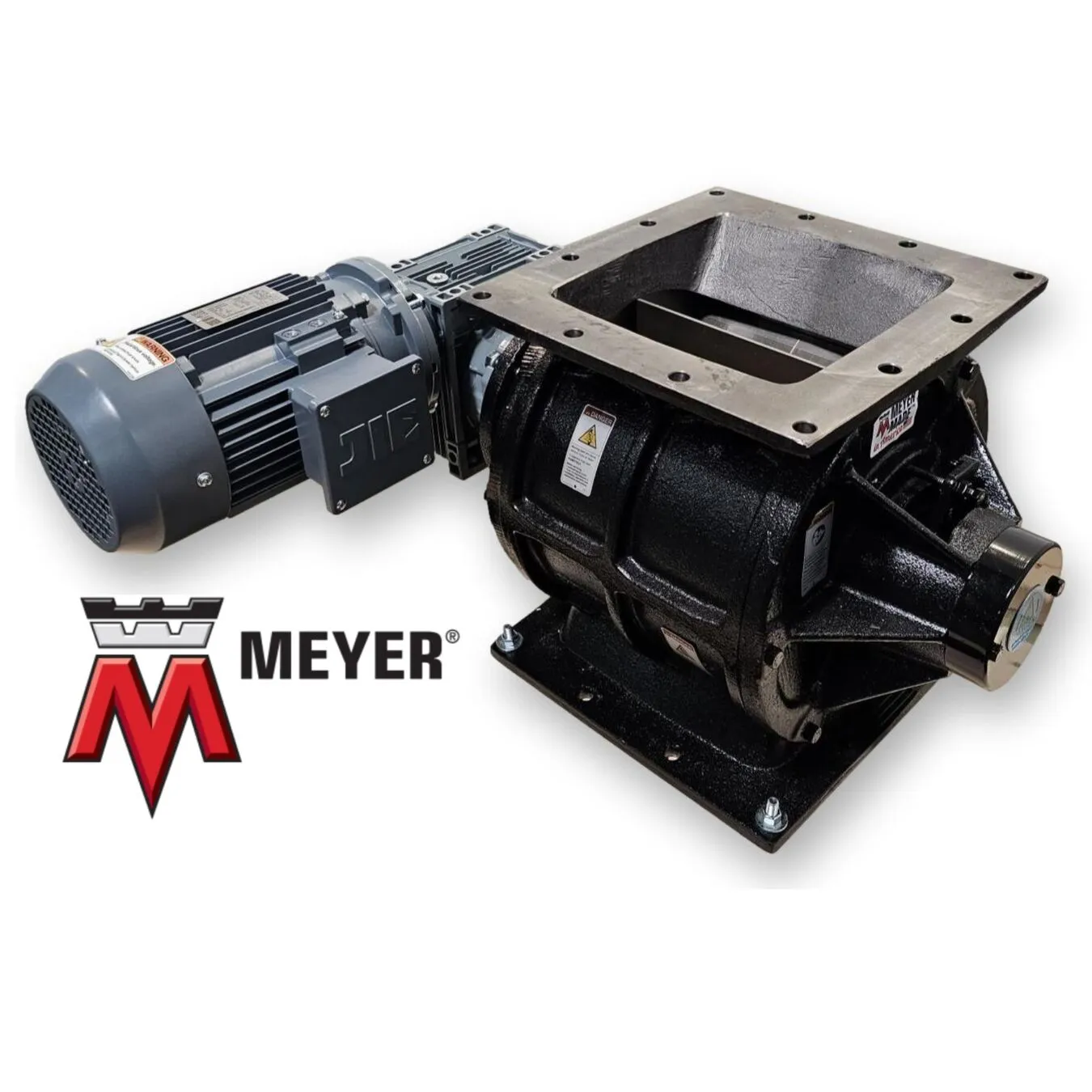

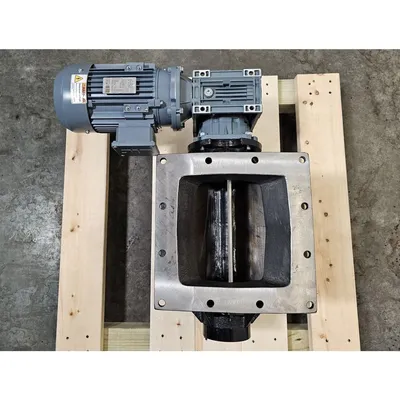

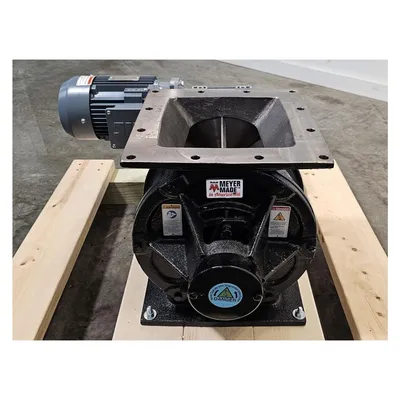

USED WM. W. MEYER & SONS, INC. 10DDVFDR

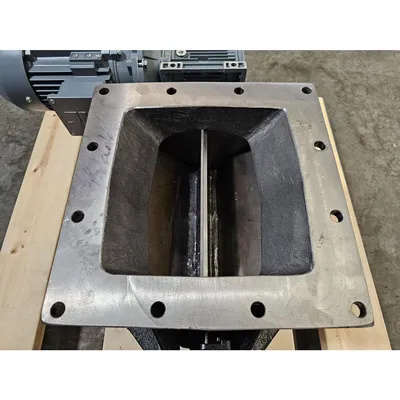

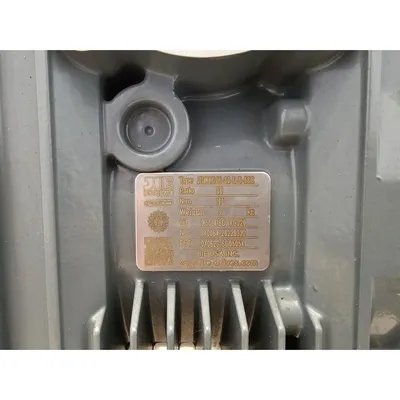

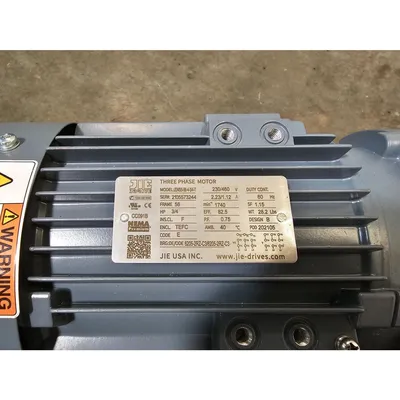

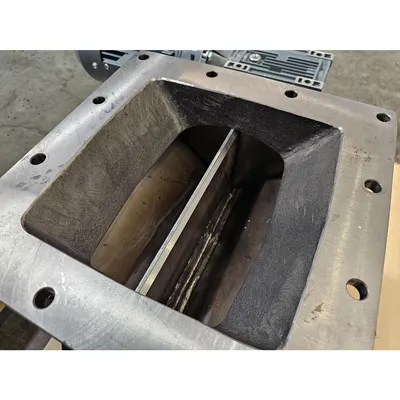

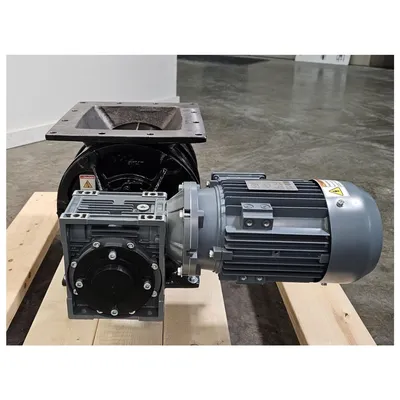

All carbon steel construction. Open-end rotor w/ beveled tips. Feed rate: 0.48 cu ft per revolution. 15.0" valve height. Direct drive right-angle worm gear. Motor info: 0.75hp, 208-230/460v, 60hz, 3ph. Rotor speed = 22 RPM. The DDV Dust Duty Valves are designed to provide a low cost airlock solution for simple dust collection under baghouses and cyclones. This design is uniquely suited for low pressure applications in light duty non-abrasive dust collection. Shipping info: one skid, 306 lbs, 36" W x 36" L x 25" H.
Video Available.
Contact us for availability .

FOB: Millwood, WV 25262

Item: 20868      Model :   10DDVFDR
 MFG: Wm. W. Meyer & Sons, Inc.
 Size (inches): 10
  Motor HP: .75
