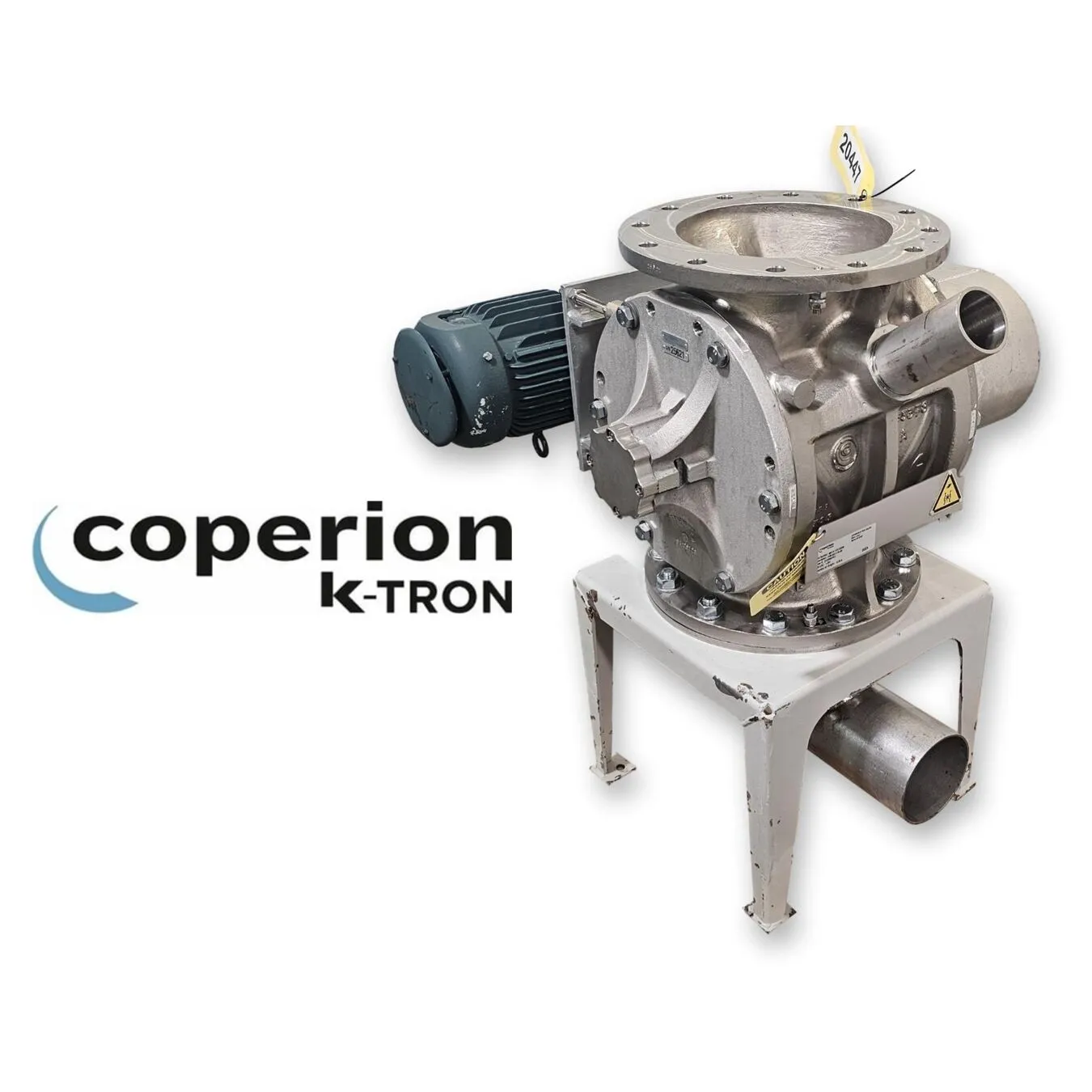

NEW COPERION KTRON ZVB-320.1-19-SS

Manufactured in 2023
Heavy-duty industrial service valve best suited for handling pellets.

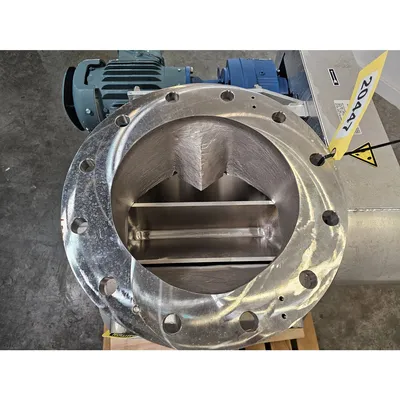

Cast stainless steel round body with anti-chopping inlet design and a 10"Ø ANSI 150 bolt pattern.
Rotor: Ten-vane deep pocket with flat tips and closed ends

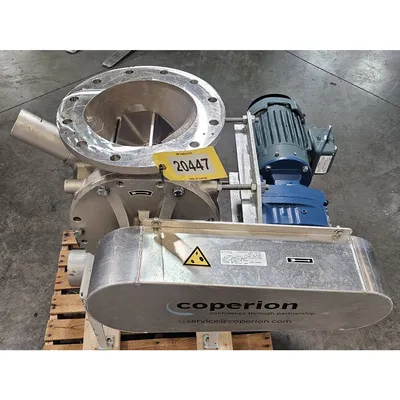

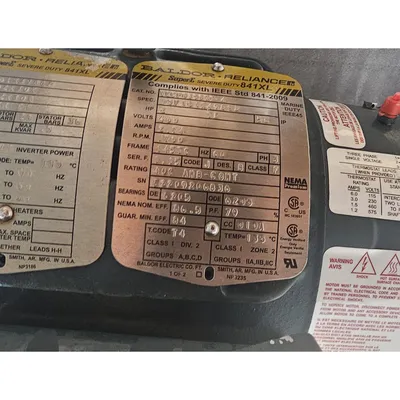

Drive: 2HP helical gearmotor and chain (460V, 60Hz, 3ph)

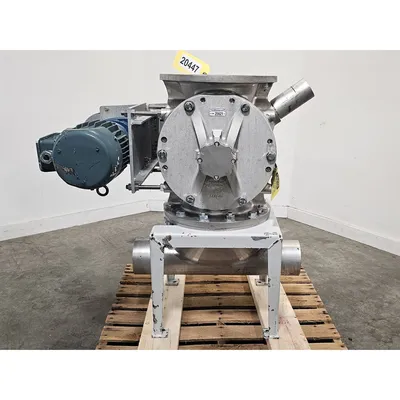

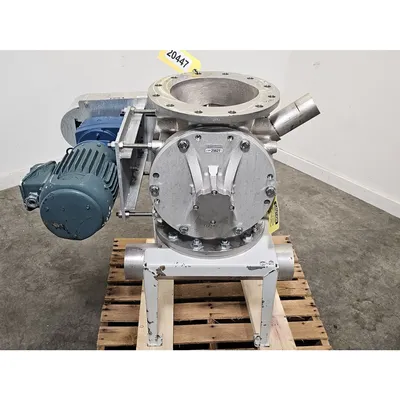

Installed with 3"Ø ventilation port, mild steel support stand, and a 5.5"Ø pneumatic conveying adapter.
The inlet flange of the valve is 36" above base elevation.
Rotor speed currently 33 RPM.

FOB: Millwood, WV 25262

Item: 20447      Model :   ZVB-320.1-19-SS
 MFG: Coperion Ktron
 Size (inches): 10
  Motor HP: 2
