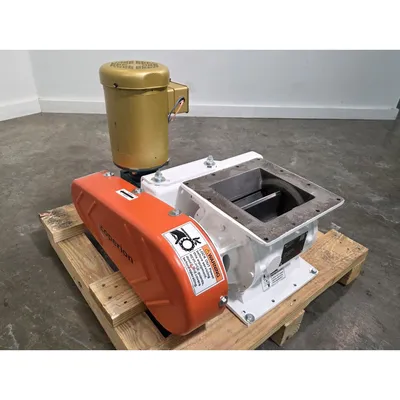

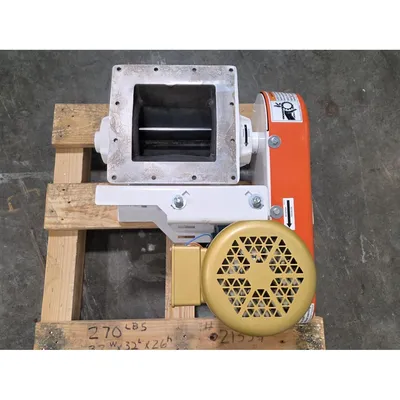

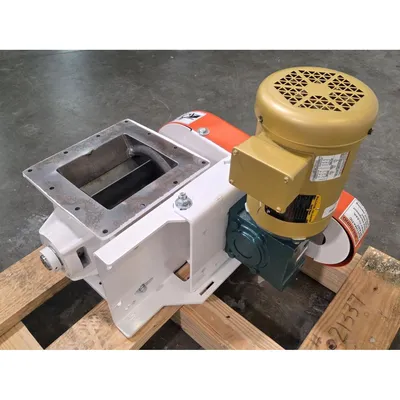

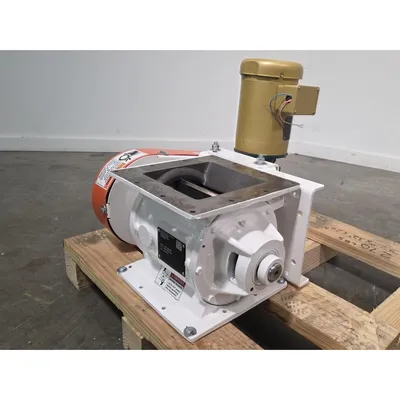

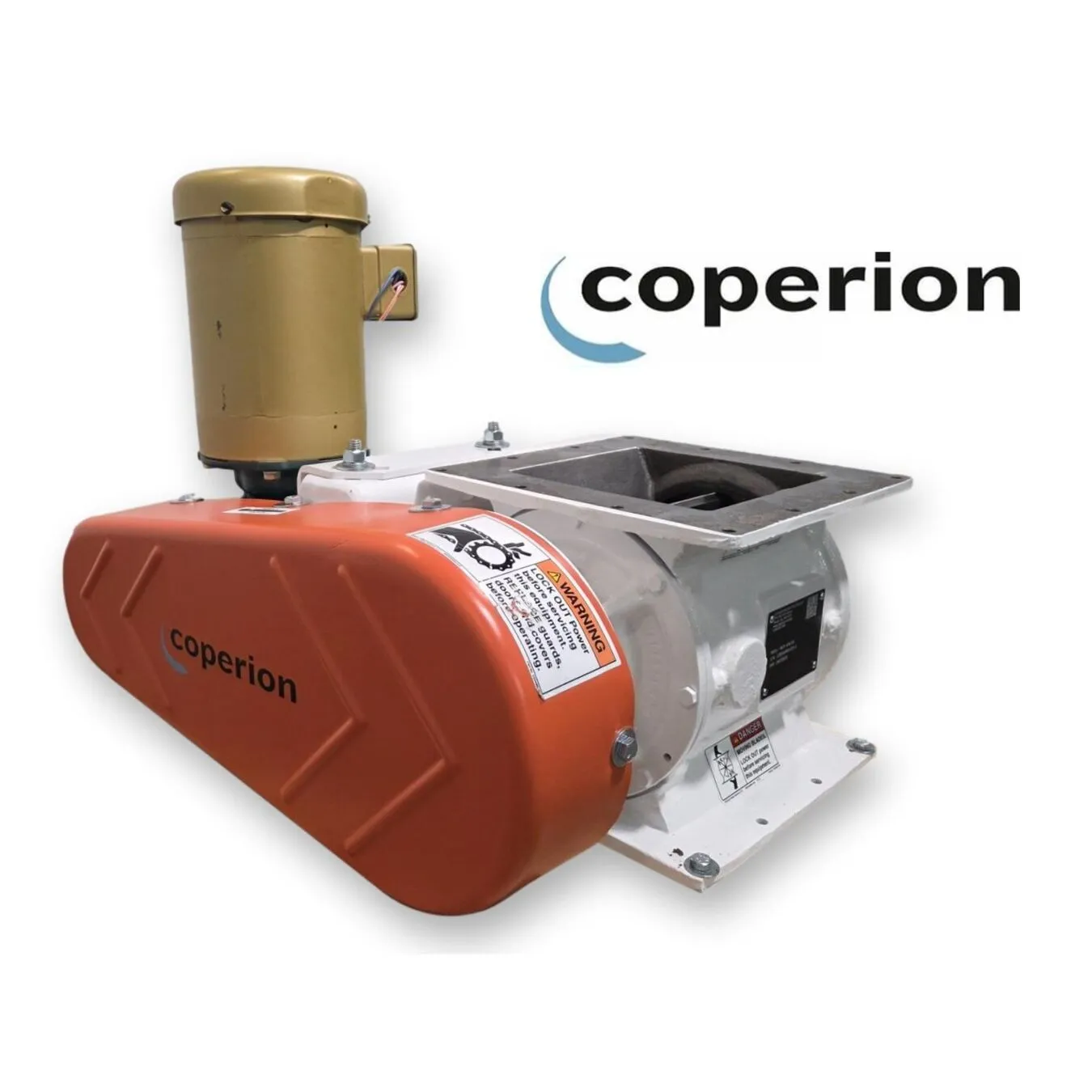

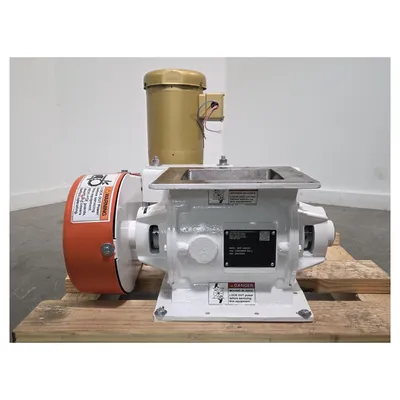

USED COPERION MD20

Complete with cast grey iron housing and endplates.

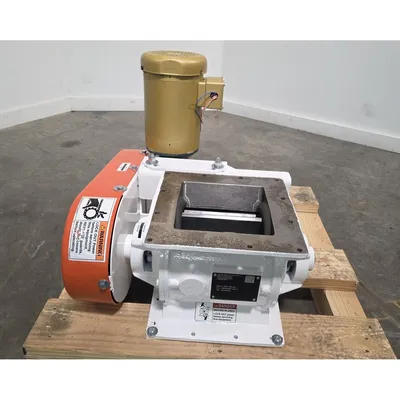

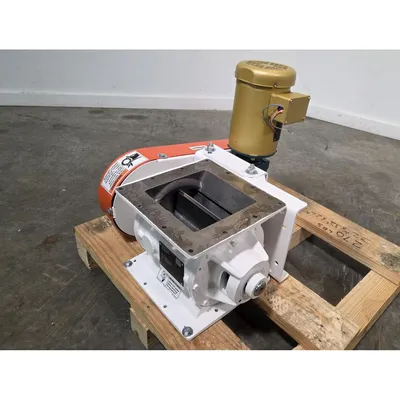

Flanged housing with 8" sq. inlet and 8-1/2" sq discharge.
Outboard sealed bearings.
Std temperature TS4 shaft seals.
Endplates tapped with plug for seal air purge port.

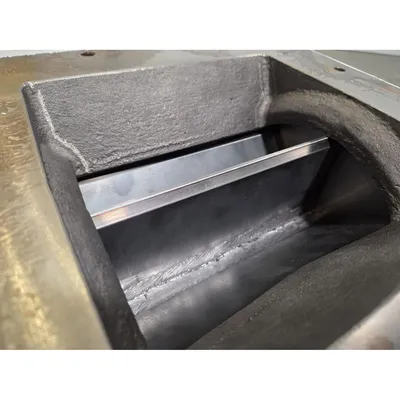

8-vane open end carbon steel rotor with Fixed relieved 1/8" land rotor tips.
Class I rotor tip clearance (.004 - .007").

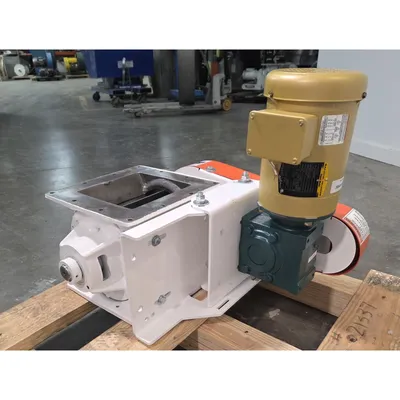

Drive #55 with right angle c-face reducer.

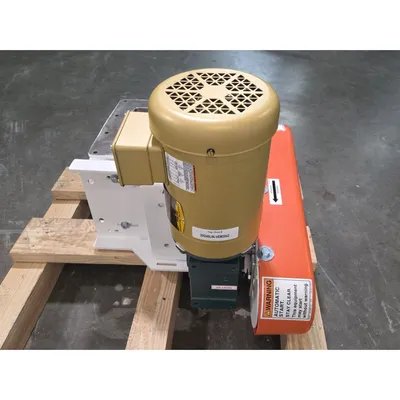

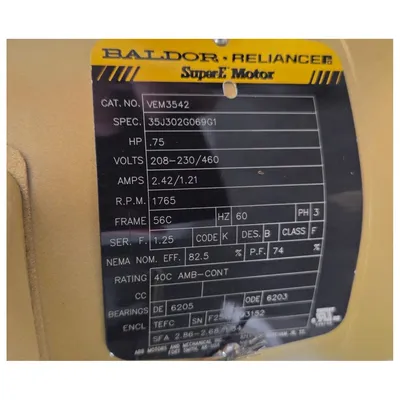

3/4HP TEFC premium efficiency motor. 230/460/3/60Hz.
Carbon steel drive mount channel and reducer plate.
Rotor speed = 28 RPM.

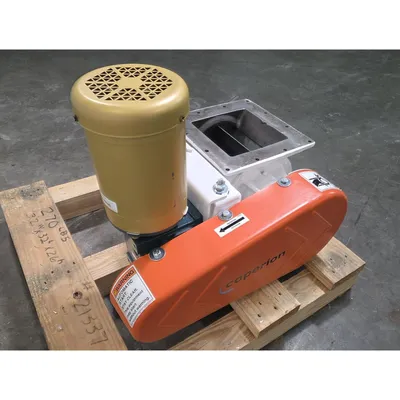

OSHA orange plastic drive guard cover with carbon steel back.
Paint: Epoxy primer with D8700 Urethane top coat. RAL9003 Signal white.
Gasket material on flanged to be food grade silicone caulk.
Ambient temperature rating.
Shipping info: One crate, 32x35x30".
Weight = 426 LBS.

FOB: Millwood, WV 25262

Item: 21337      Model :   MD20
 MFG: Coperion
 Size (inches): 8
  Motor HP: 0.75
