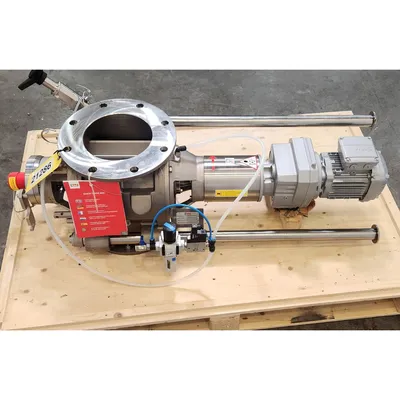

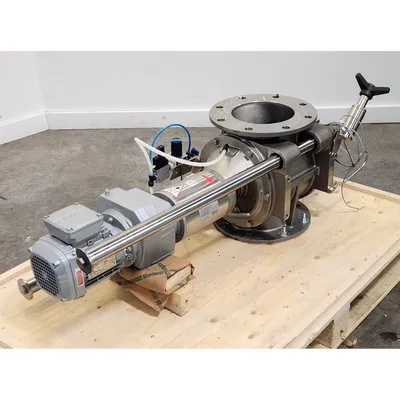

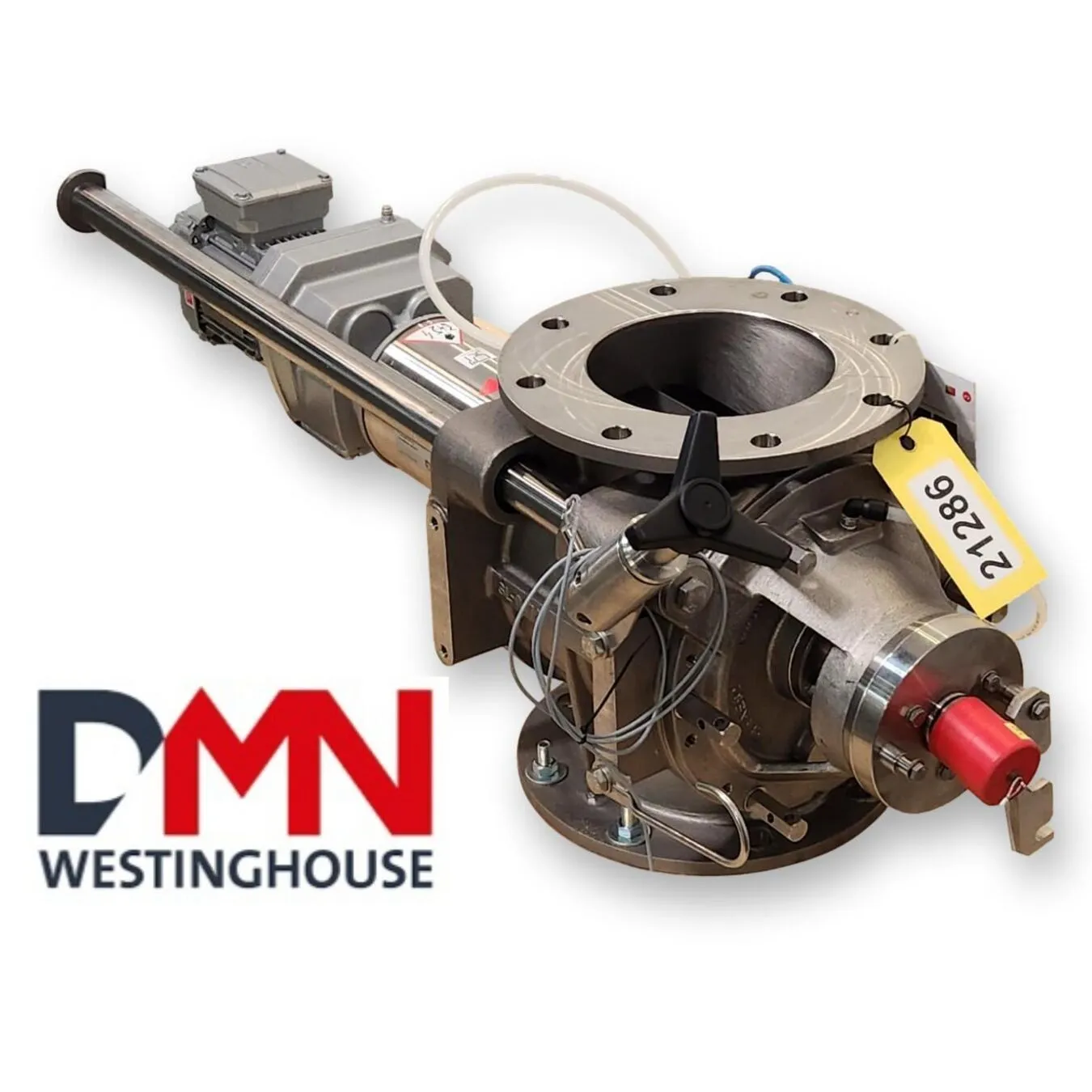

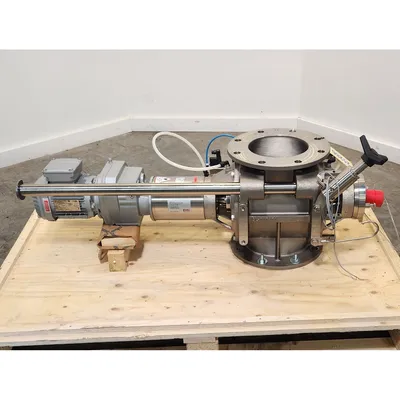

NEW DMN-WESTINGHOUSE AL 200 2 MZC

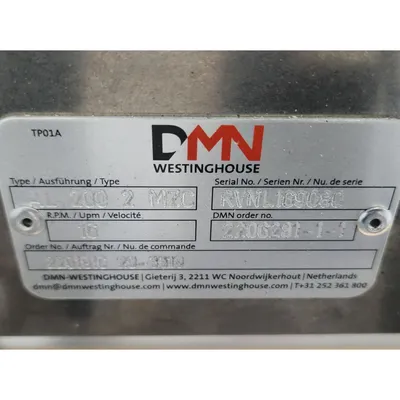

Serial No: RVNL169079
Cast 304 stainless steel round body & endplates with 8"Ø ANSI 150 flange drilling.
Rotor: Twelve-vane, machined tips with relief bevel, open sides
Capacity: 0.19 Cubic Feet per revolution (at 100%)
Rail supported slide-out for easy, rotor removal and cleaning while installed.
Air purged shaft seals with controls.
Height between flanges is 15.37".
Length of airlock assembly (closed): 48"

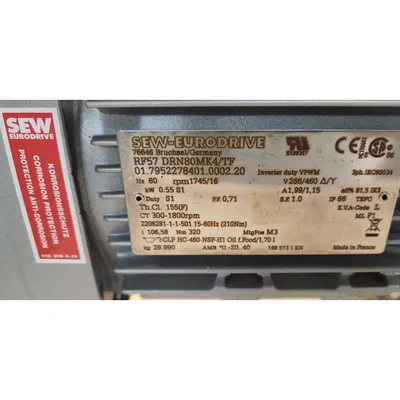

3/4HP gearmotor drive (230/460V, 60Hz, 3ph)
Rotor speed = 16.8 RPM.

FOB: Millwood, WV 25262

Item: 21286      Model :   AL 200 2 MZC
 MFG: DMN-Westinghouse
 Size (inches): 8
  Motor HP: 0.75
