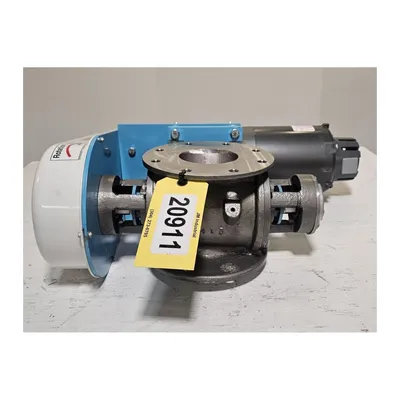

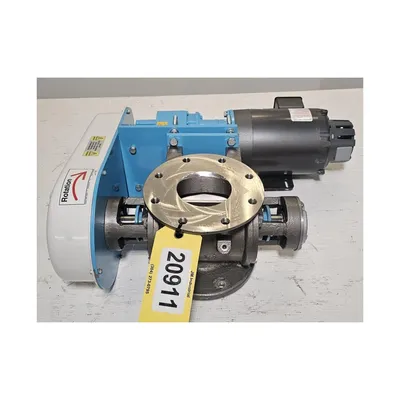

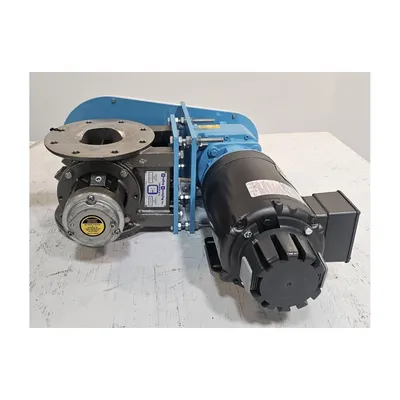

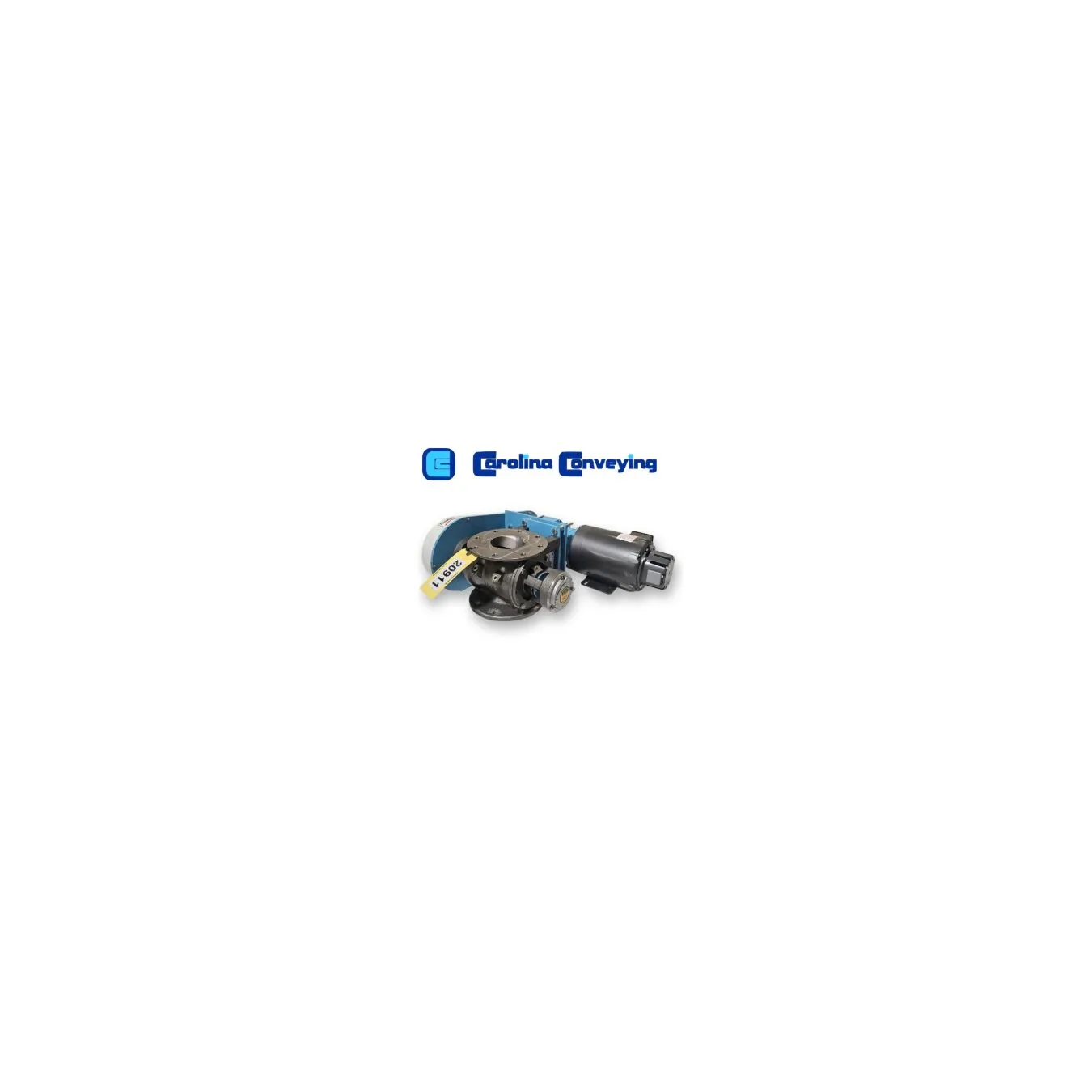

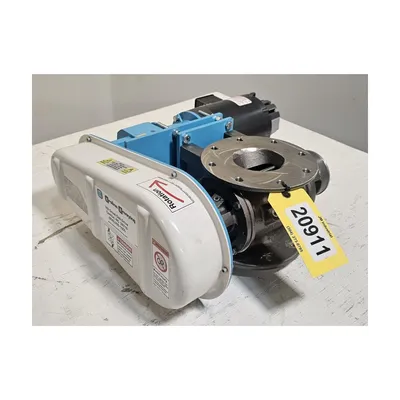

NEW CAROLINA CONVEYING 4" RVC

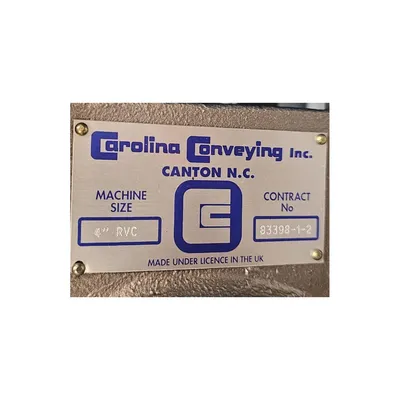

Contract No 83398-1-2.
Cast stainless steel body with 4"Ø line connections (ANSI 125/150 bolt pattern).

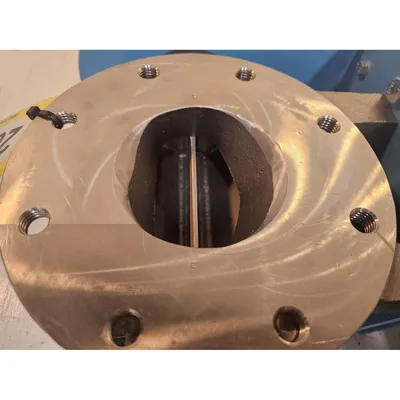

Rotor: Eight-vane, curved pocket with beveled tips, closed ends.
Valve height between flanges is 7.37".

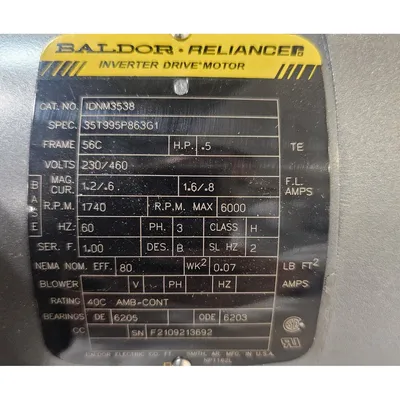

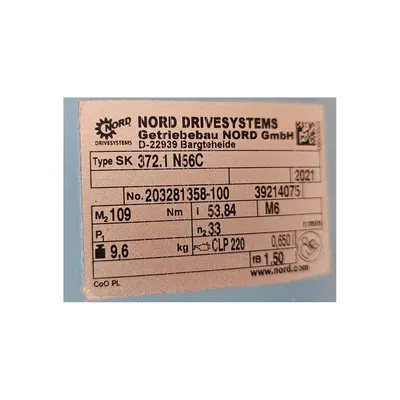

1/2HP gearmotor & chain drive (208-230/460V, 60Hz, 3ph)
Current rotor speed = 24 RPM.
This airlock has a displacement of 0.035 cubic feet / rev at 100% fill
overall dimensions: 23"L x 26"W x 10"H.
153 LBS

FOB: Millwood, WV 25262

Item: 20911      Model :   4" RVC
 MFG: Carolina Conveying
 Size (inches): 4
  Motor HP: 0.5
