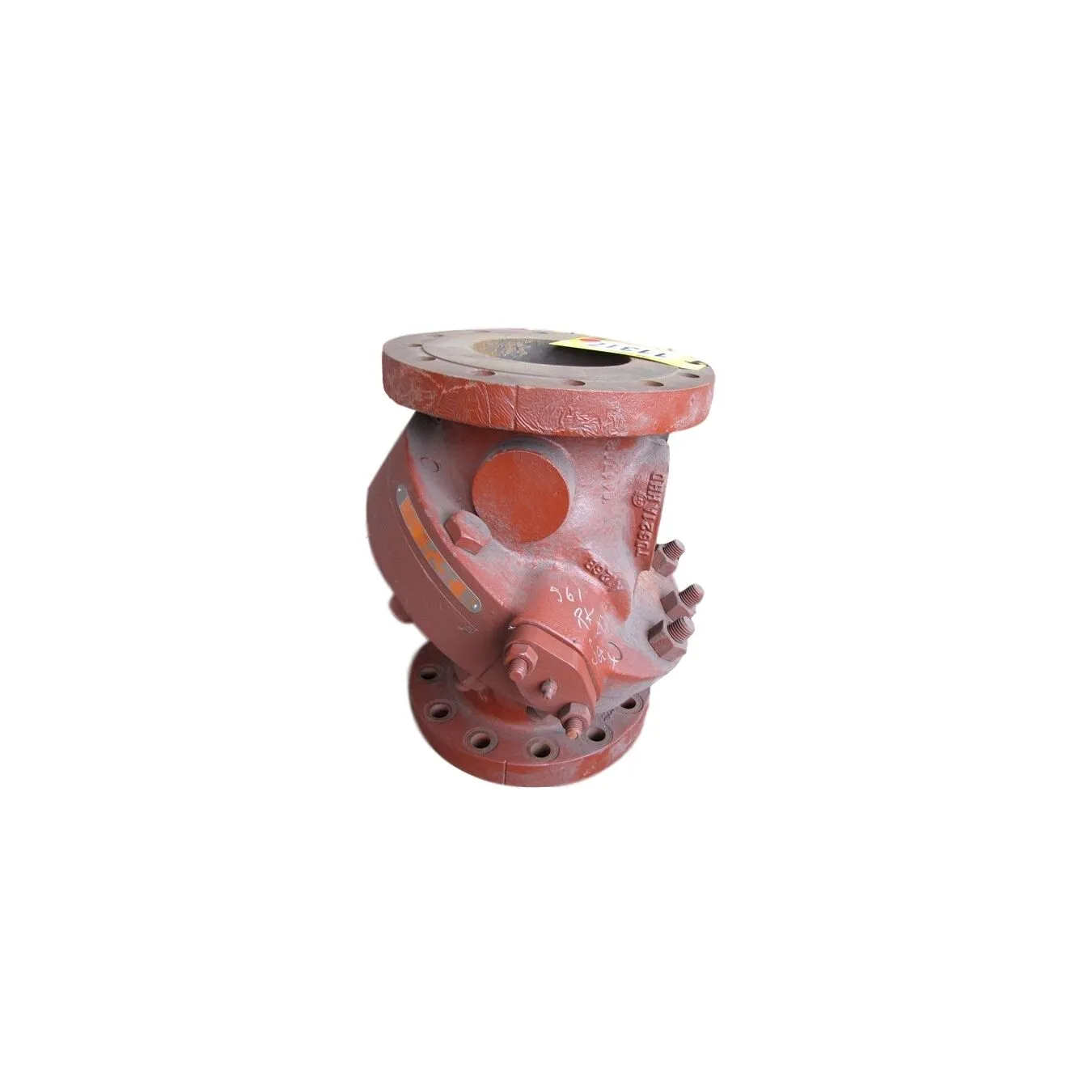

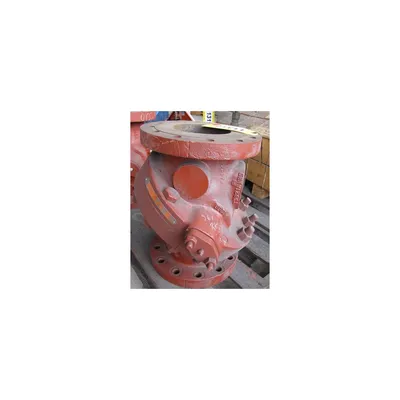

6" CRANE NUCLEAR TILTING DISC CHECK VALVE - FIGURE 223

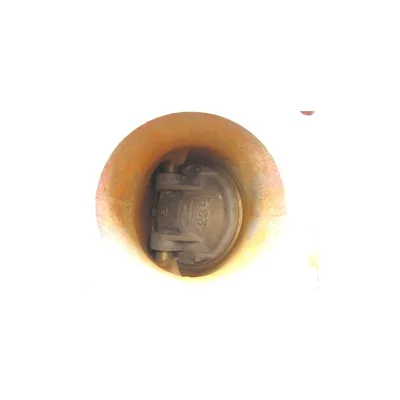

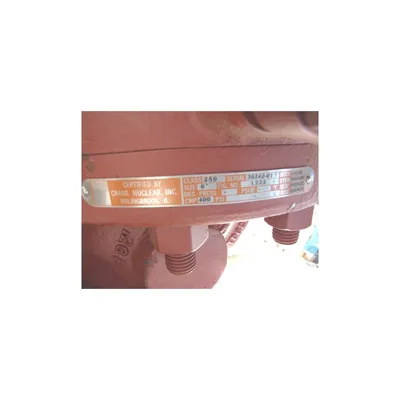

SERIAL NUMBER: 36342-01, FIGURE L223. CAST IRON BODY, BRONZE STEM, SEAT, AND SOLID DISC WITH AIRFOIL DESIGN. 250 CLASS RATING WITH BRONZE TRIM, RAISED FACE FLANGES AND 400PSI COLD WORKING PRESSURE. FLANGES AND BOLTING IS DIMENSIONALLY EQUAL TO ANSI 300. FACE TO FACE VALVE LENGTH: 17.5".

FOB: Millwood, WV 25262

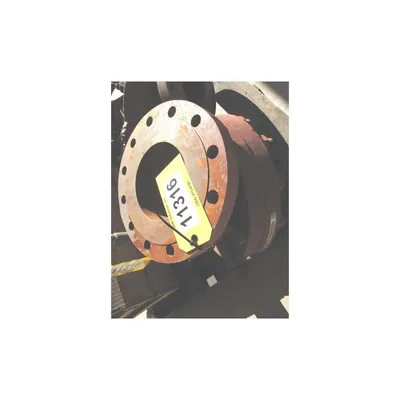

Item: 11316
 MFG: Crane Nuclear Inc.
 Size (inches): 6
