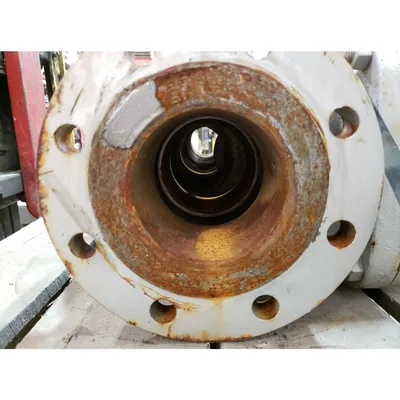

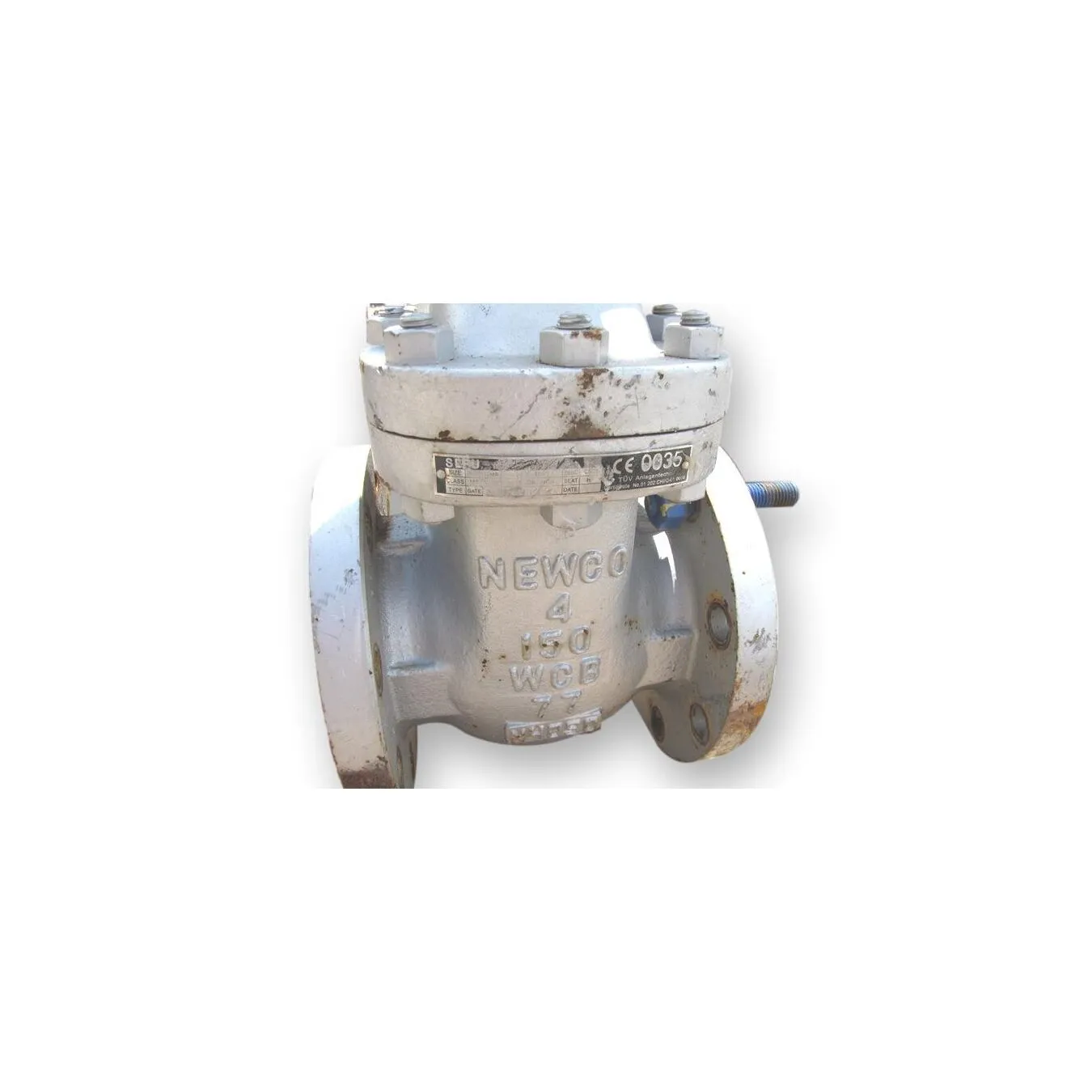

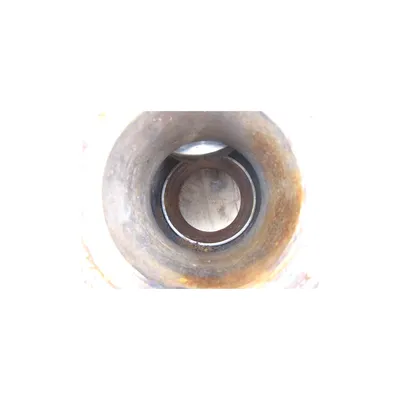

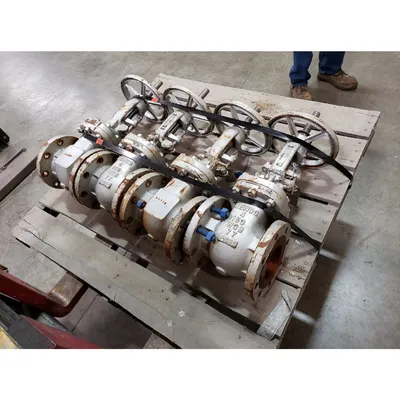

Used Newman Newco 4" Gate Valve - Style Cb2, Class 150

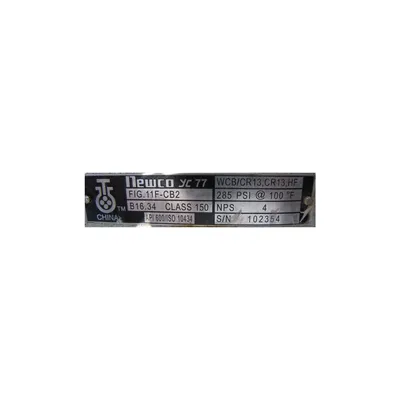

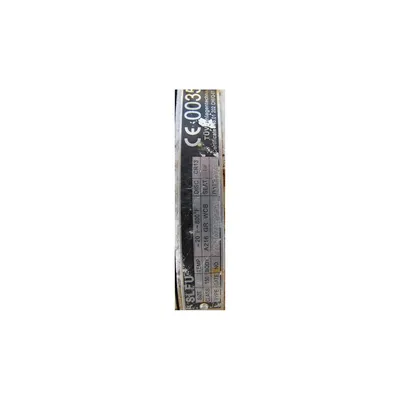

Design spec: api 600/iso 10434, pressure class: b16.34 class 150, figure no: 11f-cb2. Construction; body: a216 gr wcb cast iron, disc: cr13, seat: hf, temp: -20°f to 800°f, flanges: 150 class raised face, bolted bonnet, actuation: hand wheel. Rated for 285 PSI @ 100°f. Valve length: 9.0".

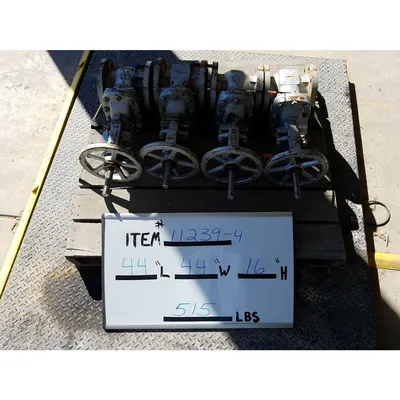

Shipping info: One box, 18x18x34, 121 lbs.

FOB: Millwood, WV 25262

Item: 11239
 MFG: Newco
 Size (inches): 4
